MATRIX SERVSWITCH™

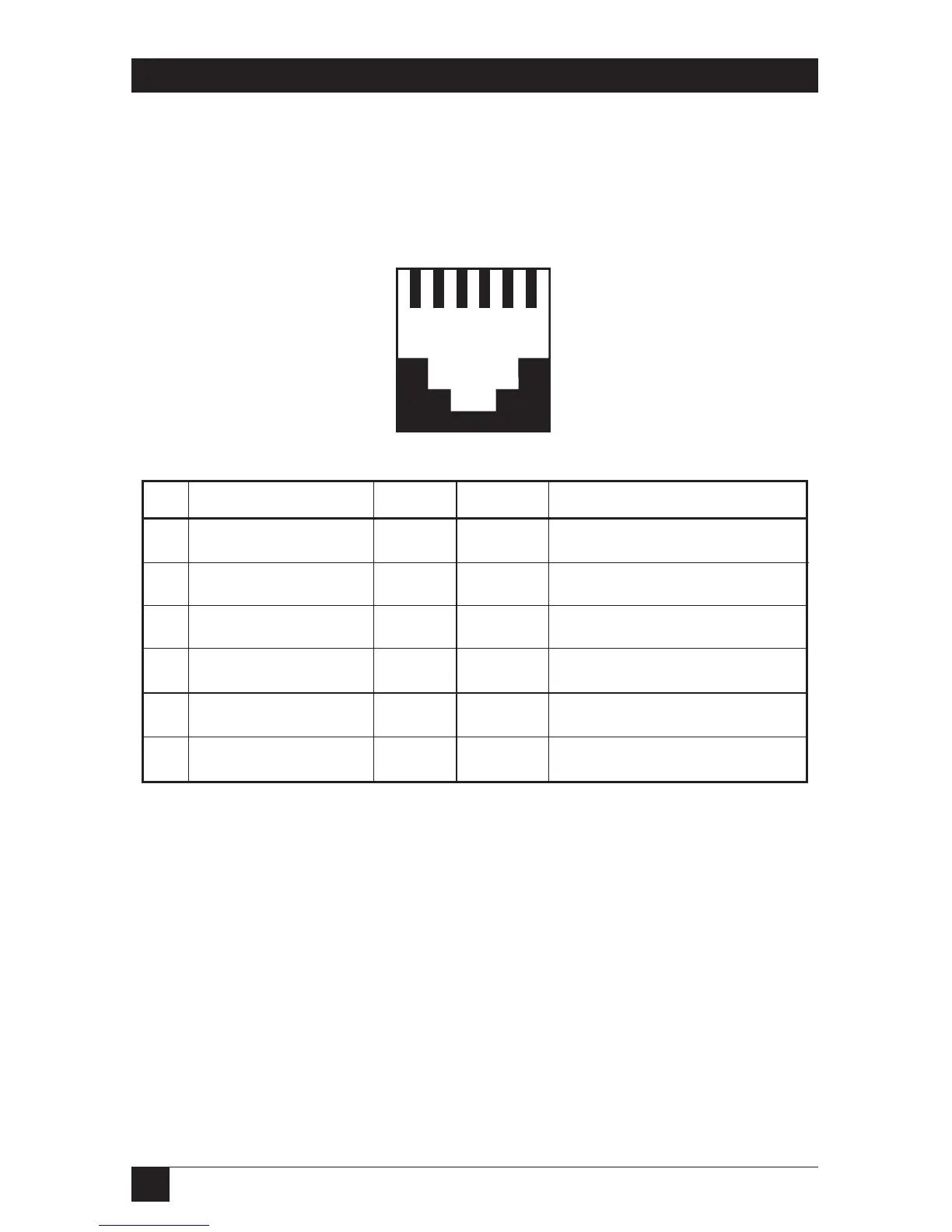

Appendix C: Pinout of Serial Ports
The table below shows the pinout of the Matrix ServSwitch’s RJ-12 (“6-wire RJ-11”)
female RS-232 serial ports.
Pin Signal Name Abbrev. Direction Description
1 Data Set Ready DSR Input Reserved (not used)
2 Data Terminal Ready DTR Output Pulled high with 1-kΩ resistor
3 Transmit Data TD Output Serial data from port
4 Signal Ground SGND N/A DC ground reference
5 Receive Data RD Input Serial data to port
6 Request to Send RTS Output Pulled high with 1-kΩ resistor
61
25
81

Black Box ServSwitch Specifications

General

Connection Type	Wired
Type	KVM
Video Support	VGA
USB Support	Yes
Audio Support	Yes
Compatibility	PC
Switching Method	Push Button
Power Supply	External
Ports	4
