Black Box VX-HDMI-TP-3D40M User Manual

724-746-5500 | blackbox.com Page 11
Chapter 2: Overview
3 4

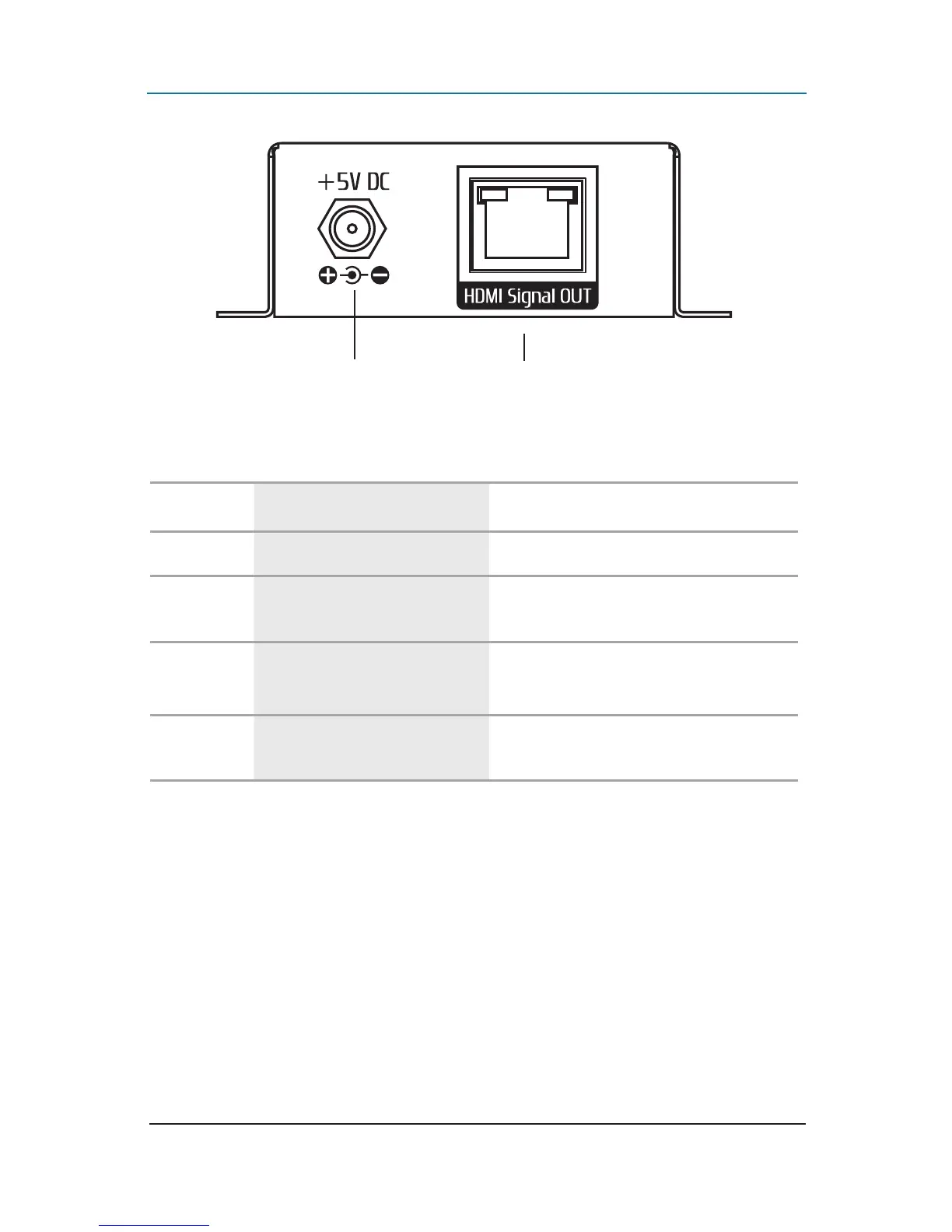

Figure 2-2. Transmitter back panel.
Table 2-1. Transmitter components.
Number Component Description
1 EDID mode switch See Table 2-2.
2 HDMI in connector
Connects to an HDMI source with
an HDMI male-male cable.
3 +5 VDC power connector
Connects to a 5-VDC power
supply.
4
RJ-45 connector:
HDMI signal out
Plug in a CAT5/5e/6 cable that will
link to the receiver.
