MATRIX. INSTRUCTION MANUAL
3
+ This is not a toy
+ Be sure that no other flyers are using your
radio frequency.
+ Do not smoke near fuel
+ Store fuel in a cool, dry place, away from
children and pets.
+ Wear safety glasses.
+The glow plug clip must be securely attached
to the glow plug.
+ Do not flip the propeller with your fingers.
+ Keep loose clothing and wires away from
the propeller.
+ Do not start the engine if people are near.
Do not stand in line with the side of the
propeller.
+ Make engine adjustments from behind the
propeller only. Do not reach around the
spinning propeller.
SAFETY PRECAUTION

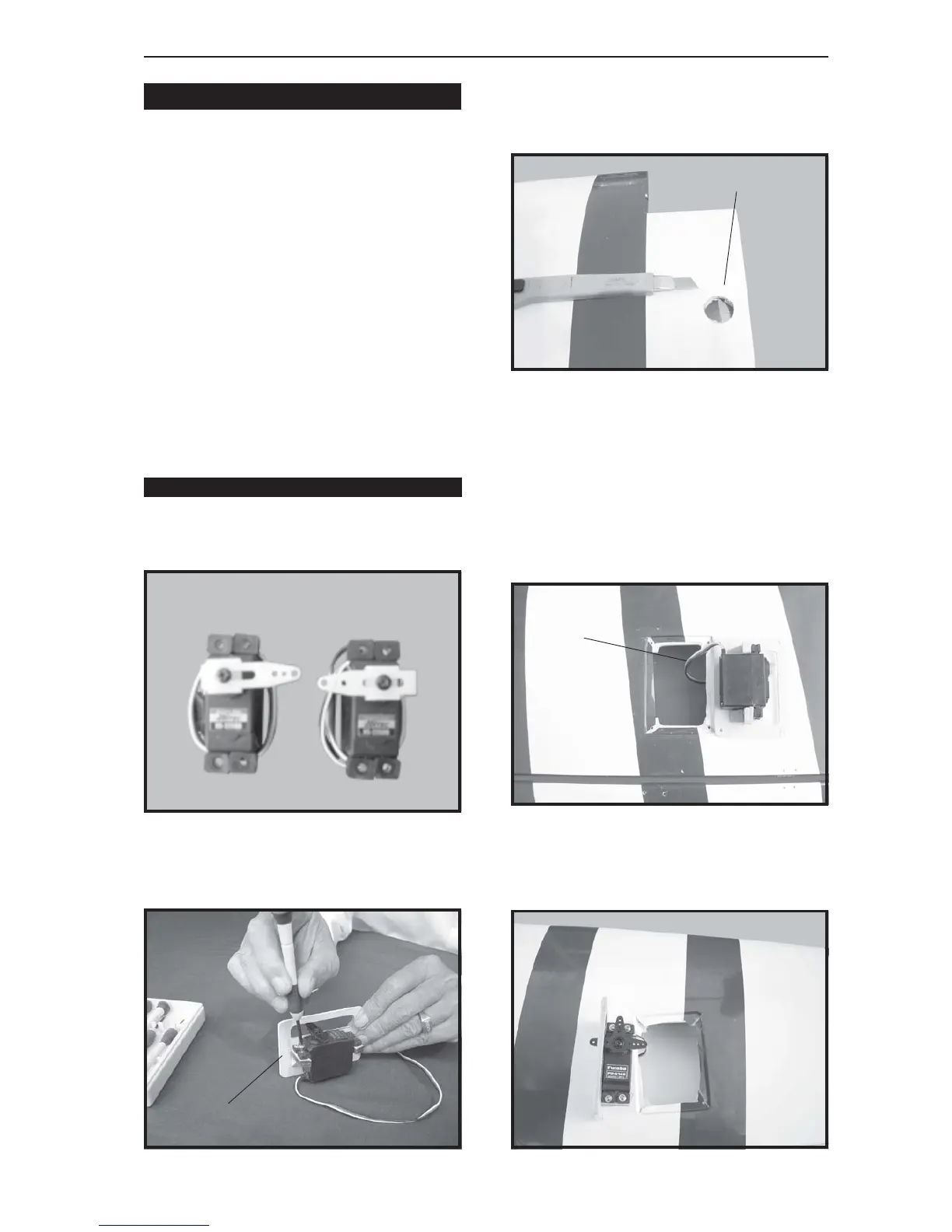

INSTALLING THE AILERON SERVOS
1. Install the rubber grommets and brass
eyelets onto the aileron servo.
4. Using the thread as a guide and using
masking tape, tape the servo lead to the end
of the thread: carefully pull the thread out.
When you have pulled the servo lead out,
remove the masking tape and the servo lead
from the thread.
2. Drill 1,5mm pilot holes through the block
of wood for each of the four mounting screws
provided with the servo. Install servo into aileron
servo tray as same as picture below:
3. Using a modeling knife, remove the
covering at possition show below.
Aileron servo tray.
Bottom of wing.
Remove the covering.
Servo wire.
