MATRIX. Instruction Manual
6
INSTALLING THE STOPPER ASSEMBLY
1. The stopper has been pre-assembled at
the factory.
2. Using a modeling knife, cut one length of
silicon fuel line (the length of silicon fuel line is
calculated by how the weighted clunk should
rest about 8mm away from the rear of the tank
and move freely inside the tank). Connect one
end of the line to the weighted clunk and the
other end to the nylon pick up tube in the
stopper.
3. Carefully bend the second nylon tube up
at a 45 degree angle (using a cigarette lighter).
This tube will be the vent tube to the muffler.
4. Carefully bend the third nylon tube down
at a 45 degree angle (using a cigarette lighter).
This tube will be vent tube to the fueling valve.
FUEL TANK

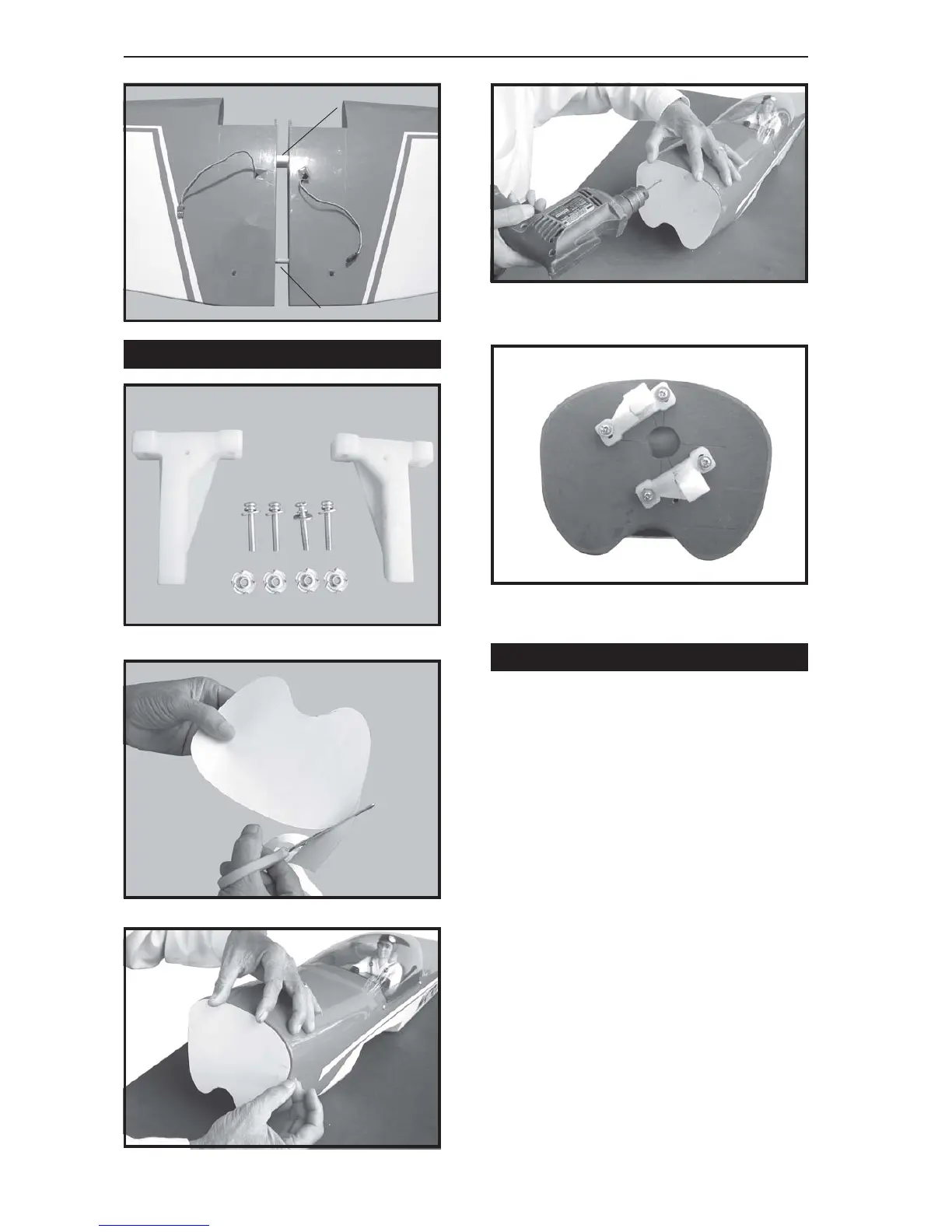

INTALLING THE ENGINE MOUTH
Paper guide.
M4.
Alumium brace.
Dowel brace.
