MATRIX. Instruction Manual
4
2) Locate nylon control horns, nylon con-
trol horn backplates and 3 machine screws.
3) Drill three 3mm holes through the
aileron using the control horn as a guide
and screw the control horn in place.
Repeat the procedure for the other wing
half.

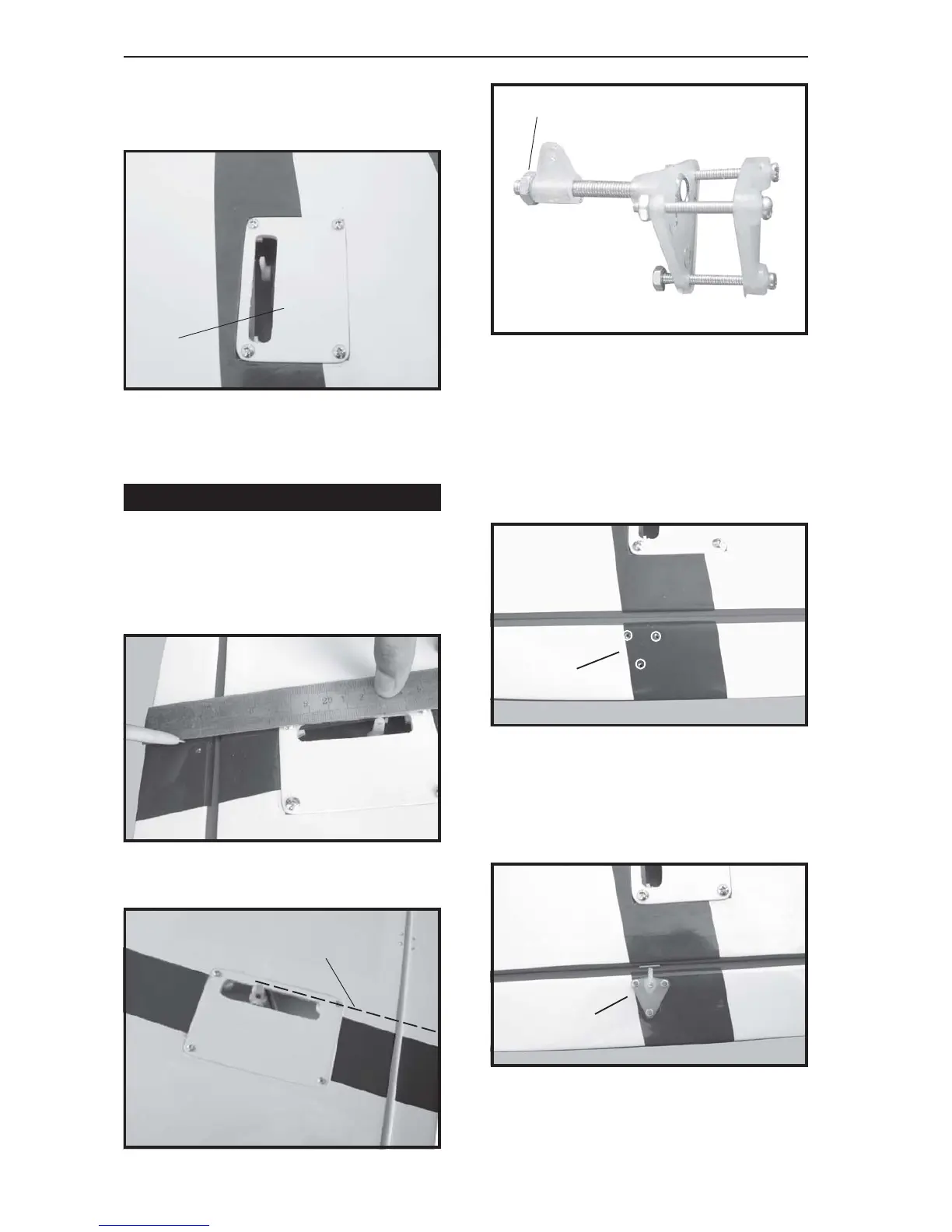

INSTALLING THE AILERON CONTROL HORN
1) Using a ruler & pen to draw a straight
line as below picture.
5) Instal servo tray with aileron servo into
the wing as same as picture below.
4) Install control horn as same as picture
below.
Repeat the procedure for the other wing
half.
Wing.
Servo tray.
2mm hole.
Control horn.
Aileron control horn.
M3 lock nut.
Straitgh line.
