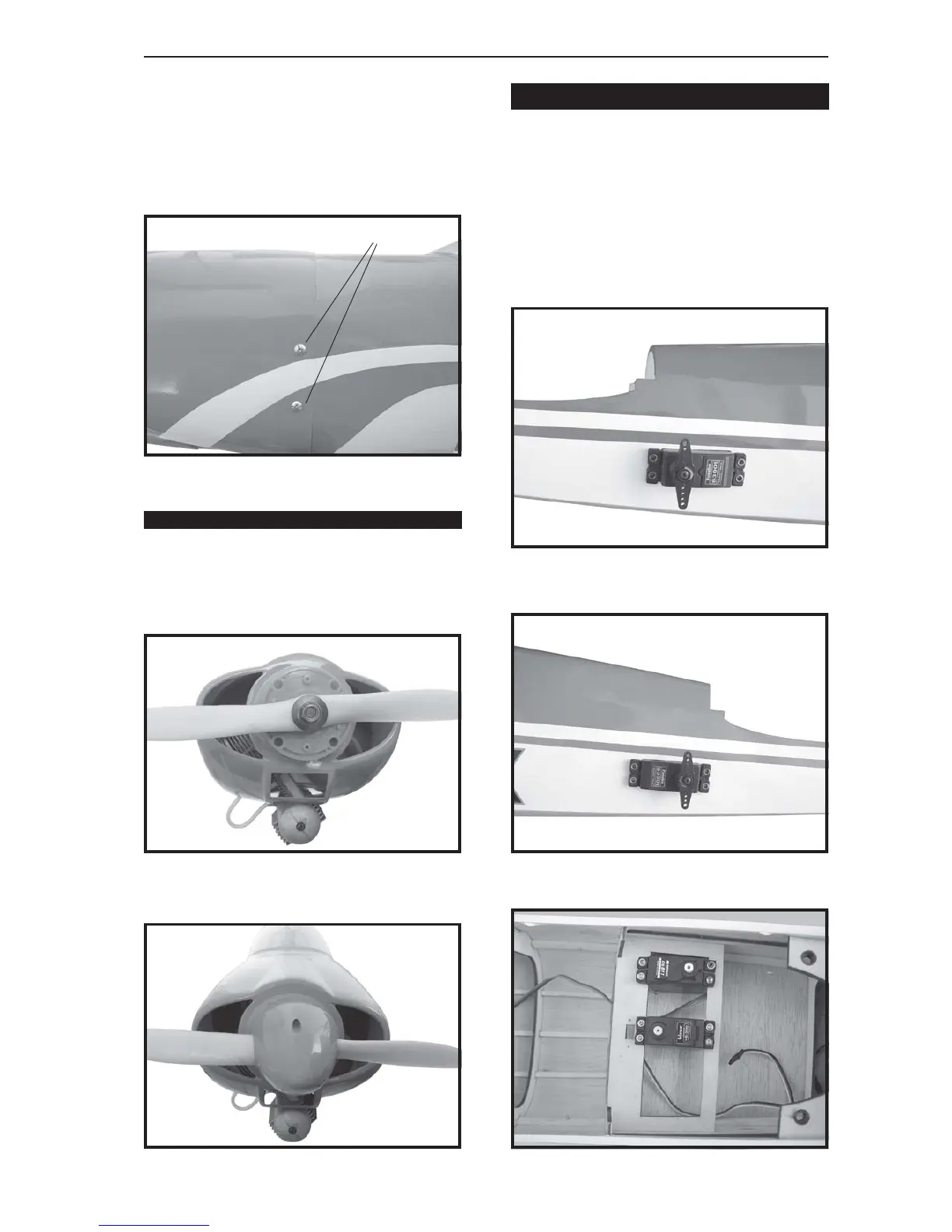

4) Install the muffler and muffler extension
onto the engine and make the cutout in the
cowl for muffler clearance. Connect the fuel
and pressure lines to the carburetor, muffler
and fuel filler valve.
INSTALLING THE SPINNER
Install the spinner backplate, propeller
and spinner cone. The spinner cone is held in
place using two 3mm x 12mm wood screws.
1) Install the rubber grommets and brass
collets into the elevator, rudder, and throttle
servos. Test fit the servos into the servo tray.
2) Mount the servos to the tray using the
mounting screws provided with your radio
system.
Elevator servo
left side.
Machine screw.
Elevator servo
right side.
Throttle servo.
Rudder servo.
SERVO INSTALLATION
