Black Stone 1605 - Assembly Guide

ENGLISH
ENGLISH
Owner’s Manual |
ASSEMBLY GUIDE

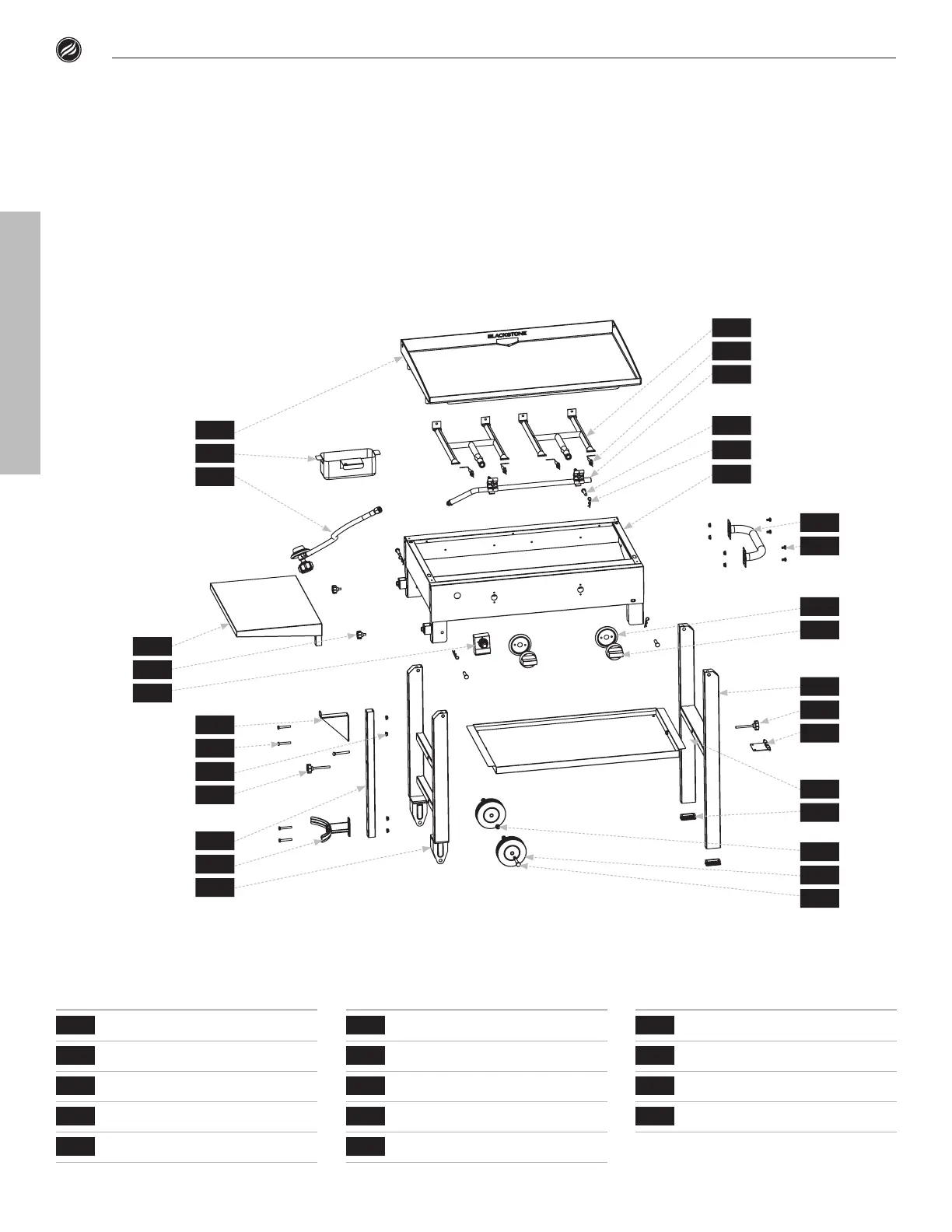

EXPLODED VIEW
PARTS
QTY
1.1a
Right leg assembly
1
1.1b
Leg caps
2
1.2
Le leg assembly
1
1.3a
Pull pin
1
1.3b
Fixing pins
4
PARTS
QTY
1.3c
Shutter pins
4
1.4
Igniter
1
1.5
Gas rail
1
1.6
Ignition needles
4
1.7
H Burners
2
PARTS
QTY
1.8
Regulator hose
1
1.9
Knob bezels
2
8.1
Wheel bolts
2
8.2
Wheel nuts
2
7
10
16
1.2
9
1.1a
1.1b
1.3a
1.3b
1.4
1.5
1.6
1.7
1.8
1.9
1.3c
12
6
1
2
5
3
13
14
15
17
11
8
8.1
4
8.2
Model 1605
04
Assembly Guide
