ASSEMBLY GUIDE

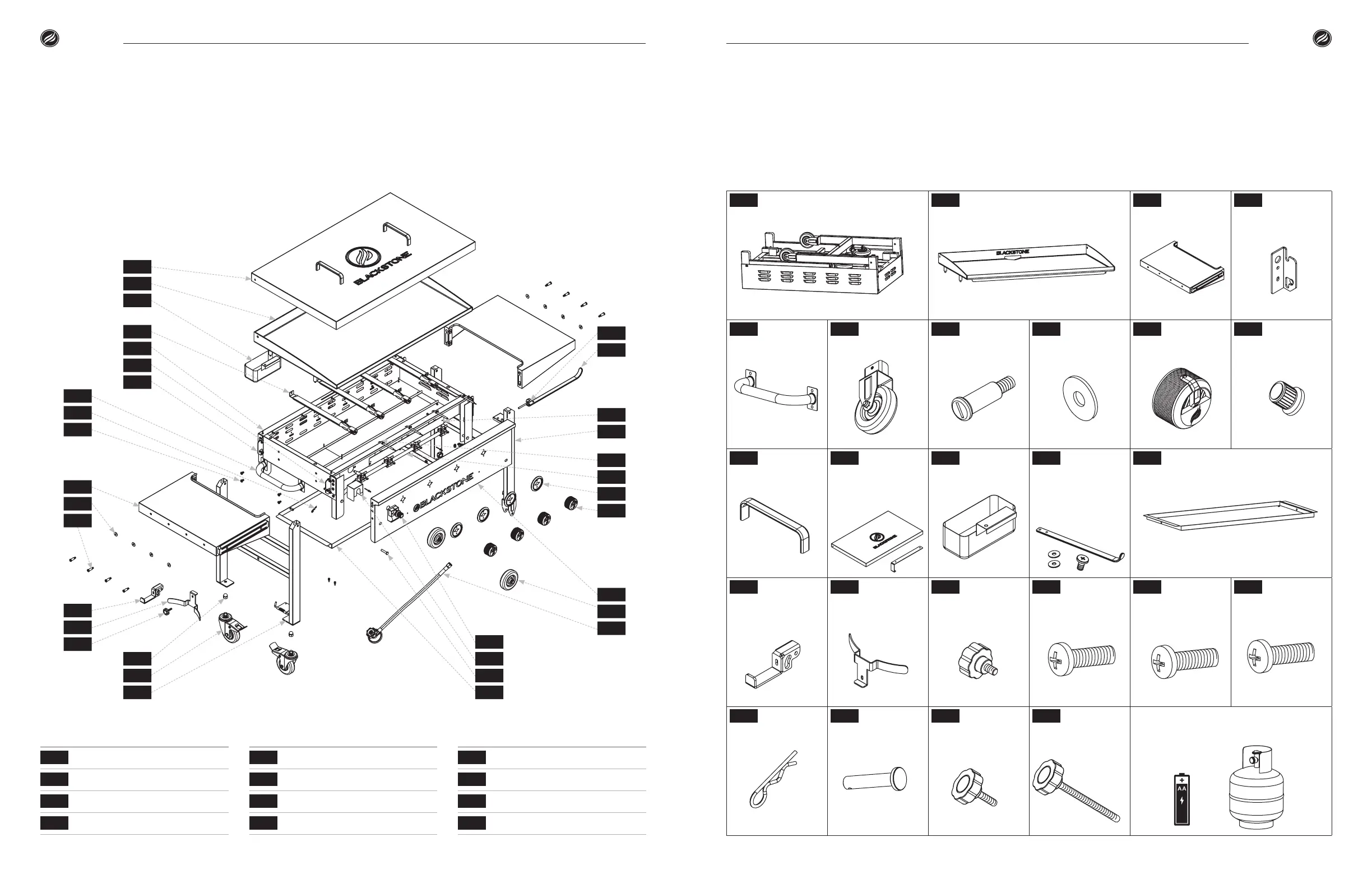

ILLUSTRATED PARTS LIST
1 Body (1 piece) 2 Griddle top (1 piece) 3 Side shelves
(2 pieces)
4 Side shelf
plates (4 pieces)
5 Side Handle
(1 piece)
6 Wheels
(2 pieces)
7 Side shelf
pegs (8 pieces)
8 Peg washers
(8 pieces)
9 Control
knobs (4 pieces)
10 Ignition
Button (1 piece)
11 Hard cover
handle (2 pieces)
12 Hard cover
(1 piece) &
Hard cover hook
(2 pieces)
13 Grease cup
(1 piece)
14 Paper towel
holder (1 piece) &
Washers (2 pieces)
& M6x16 bolt
(1 piece)
15 Bottom Tray (1 piece)
16 Upper
propane tank
hanger (1 piece)
17 Lower
propane tank
holder (1 piece)
18 Small
Thumb Screw
(2 pieces)
19 M6x12 bolt
(13 pieces)
20 M8 screws
(8 pieces)
21 M4X10
Bolts (4 pieces)
22 Cotter pin
(1 piece)
23 Shear pin
(1 piece)
24 Medium
Thumb Screw
(1 piece)
25 Large
Thumb Screw
(1 piece)
NOT INCLUDED - 20lb LP Gas Tank &
AA Battery
EXPLODED VIEW
PARTS
QTY
1.1a
Background Panel
1
1.1b
Control Panel
1
1.2a
Gas Rail
1
1.2b
Tubular Burners
4
PARTS
QTY
1.2c
Ignition Needles
4
1.3
Regulator Hose
1
1.4
Le Leg Assembly
1
1.5
Right Leg Assembly
1
PARTS
QTY
1.6
Casters
2
1.7
Nuts
2
1.8
Knob Bezels
4
1.9
Igniter Heat Shield
1
12
2
13
1.1
7
8
3
14
1.1b
1.2a
1.2b
1.2
9
1.8
1.6
1.7
1.4
1.5
6
1.3
15
23
10
1.9
22
19
5
4
20
1
17
24
25
16
