Black Stone 2086 - Assembly Guide; Exploded View and Parts List

ENGLISHENGLISH
Owner’s Manual |
blackstoneproducts.com/support
ENGLISH
ASSEMBLY GUIDE

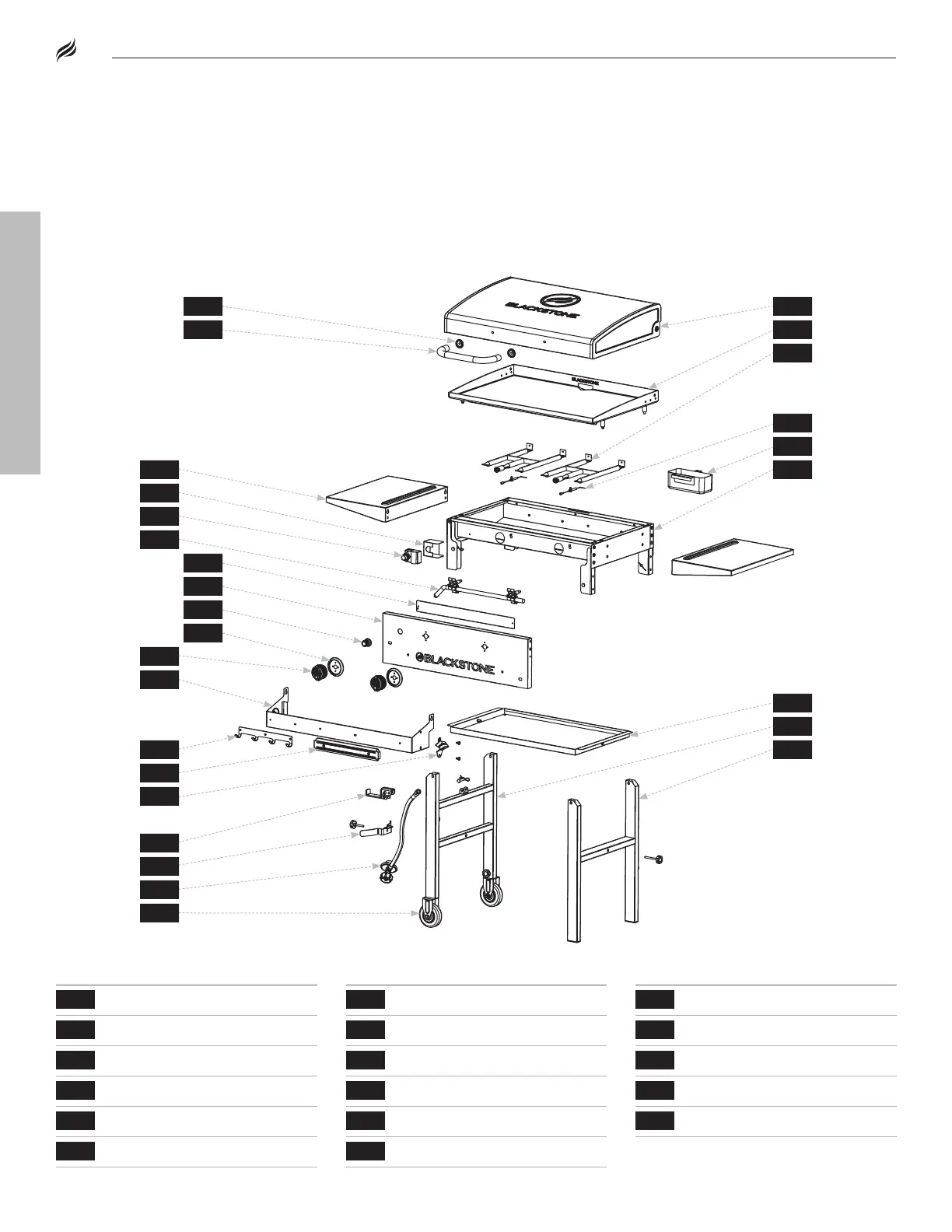

EXPLODED VIEW
PARTS
QTY
1.1a
Control panel
1
1.1b
Control knob bezels
2
1.2
Background panel
1
1.3a
Ignitor
1
1.3b
Heat shield
1
1.3c
Ignition button
1
PARTS
QTY
1.4
Gas rail
1
1.5
Ignition needles
2
1.6
H Burners
2
1.7
Le leg assembly
1
1.8
Right leg assembly
1
1.9
Regulator
1
PARTS
QTY
2.1
Hood
1
2.2
Griddle top
1
3.1
Hood handle bezels
2
10.1
Magnet
1
10.2
Tool hooks
1
1.1a
1.5
2.2
1.4
1.3a
1.6
1.8
1.1b
3.1
1.3b
1.9
1.2
10.1
10.2
1.7
1.3c
2.1
17
4
10
8
5
11
3
9
6
12a
04
Model 2086Assembly Guide
