INSTALLATION
CB5A-040 page 3/24

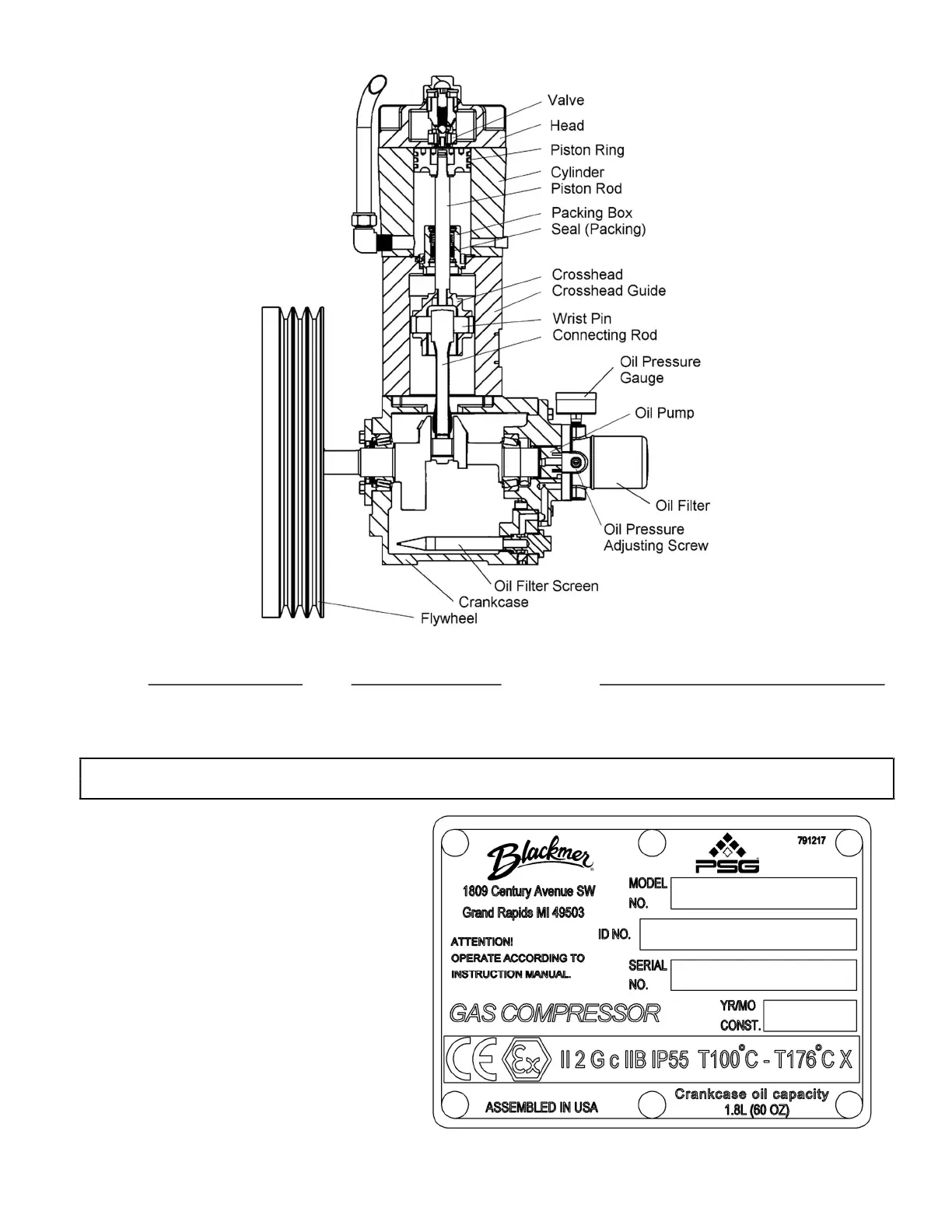

Figure 1 - Typical Compressor
MODEL: LB081B ID#: SERIAL NO:
Before proceeding:
1. Note the nameplate data in the space provided above.
2. Obtain the appropriate parts lists for the model in question.
Manuals and Parts Lists for Blackmer products may be obtained from
Blackmer's website (www.blackmer.com) or by contacting Blackmer's Customer Service.
NAMEPLATE DATA
A nameplate is attached to the side of all
Blackmer compressors showing the Model No.,
I.D. No., and Serial No. These numbers should
be available when information or parts are
needed for a particular unit.
The basic size and type of the compressor is
indicated by "Model No." A suffix letter is used
on most models to indicate the version.
For detailed ATEX Declaration information,
refer to FORM 576 found in the Certification
section of Blackmer’s website.
Figure 2 - Compressor Nameplate
