INSTALLATION
588/A page 7/24

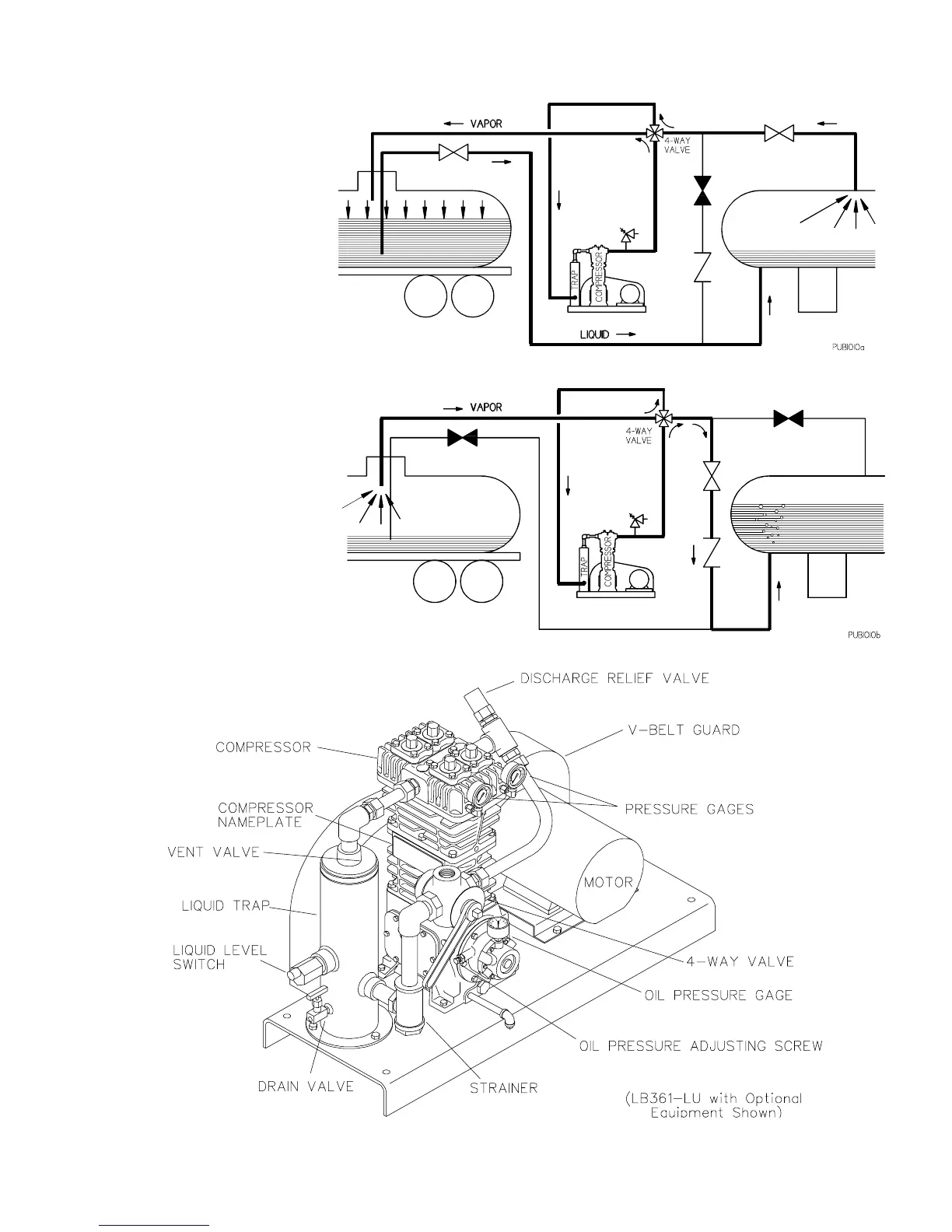

Figure 4 -
Liquid Transfer
Flow Schematic
Figure 5 -
Vapor Recovery
Flow Schematic
Figure 6 - Typical Liquefied Gas Transfer Compressor
