Carrying the mower (Fig. A)

WARNING: Rotating blade can cause serious injury.
Release both ON/OFF switches
3
to turn mower off
and unplug mower before lifting, transporting, or
storing the mower. Store in a dry place.
• The mower can be carried using the convenient carry
handles
10
.
Removing Blade (Fig. O, P)

WARNING: Ensure the blade has completely stopped
and disconnect the mower from the power source.

WARNING: Only use the specified replacement blade:
BEMW472BH and BEMW482BH release ON/OFF
switches
2
to turn mower off, WAIT FOR THE BLADE
TO STOP, AND UNPLUG MOWER.

CAUTION: Whenever the blade is being removed,
installed or sharpened, wear gloves and proper eye
protection. Be careful of sharp edges on blade.
1. Cut a piece of 2x4 wood
14
(about 1 foot long)
(305 mm) to keep blade from turning while removing
flange nut.
2. Turn the appliance onto its side.
NOTE: Wear gloves and proper eye protection. Be
careful of sharp edges of blade.
3. Position piece of wood
14
to keep blade from turning
as shown in Fig. M.
4. Use a 9/16 inch wrench
16
to loosen and remove the
blade bolt
15
by turning counterclockwise.
5. Pull off blade
17
, blade insulator
18
, as shown in
Fig. N. Examine all pieces for damage and replace
ifnecessary.

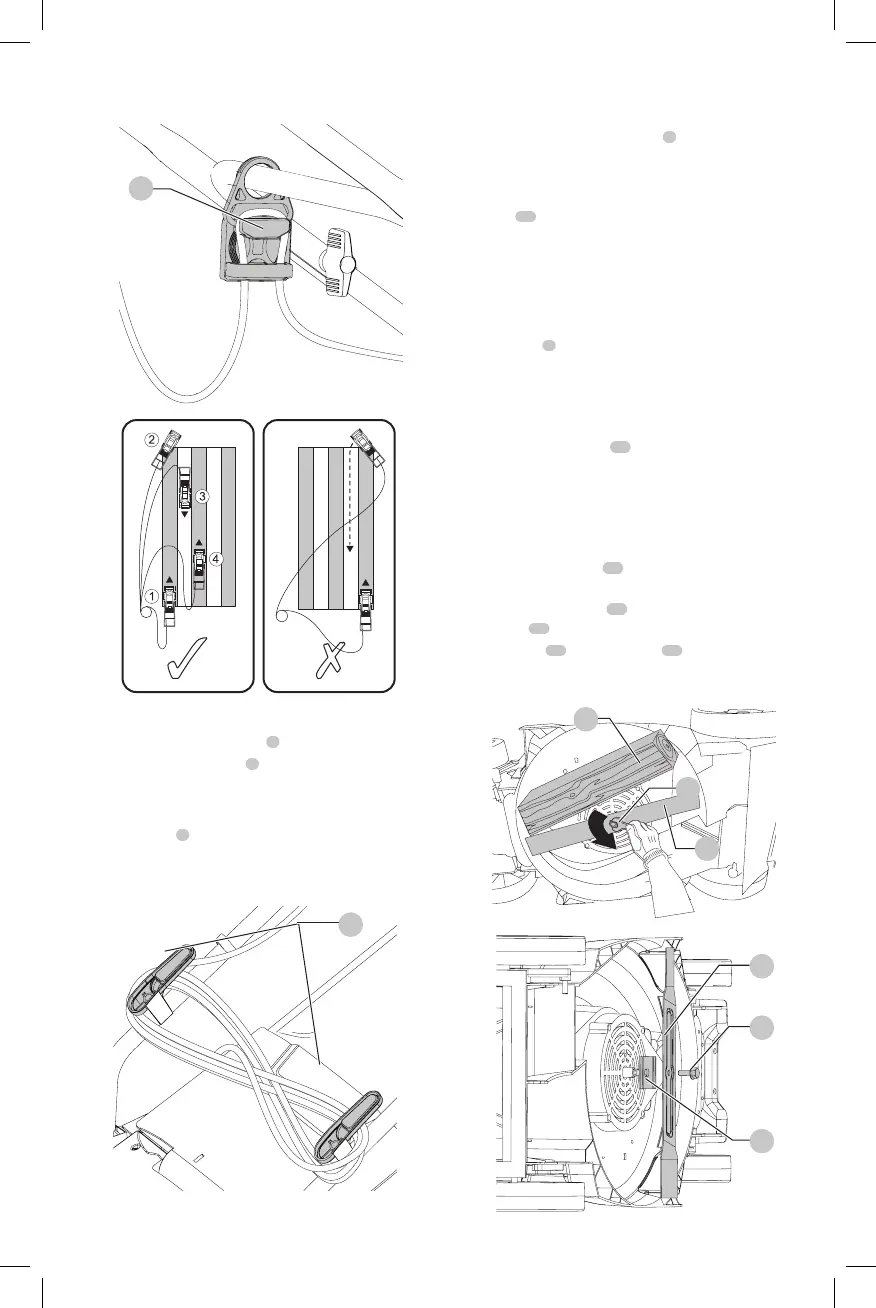

Fig. O
14
16
17
Fig. P
15
18
17

WARNING: Do not work towards the cable as shown
in Fig. K.
Fig. J
5
Fig. K
Emptying the grass catcher
1. Release the ON/OFF switches
3
and unplug the mower.
2. Remove the grass catcher
8
.
3. Empty the contents.
Cable storage (Fig. N)
The cable holders
6
provide a safe and convenient way to
store the extension cord when not in use.
1. Wrap the extension cord around the cable holders in a
Figure eight pattern.
Fig. N
6
