SET UP & USE
Page 11

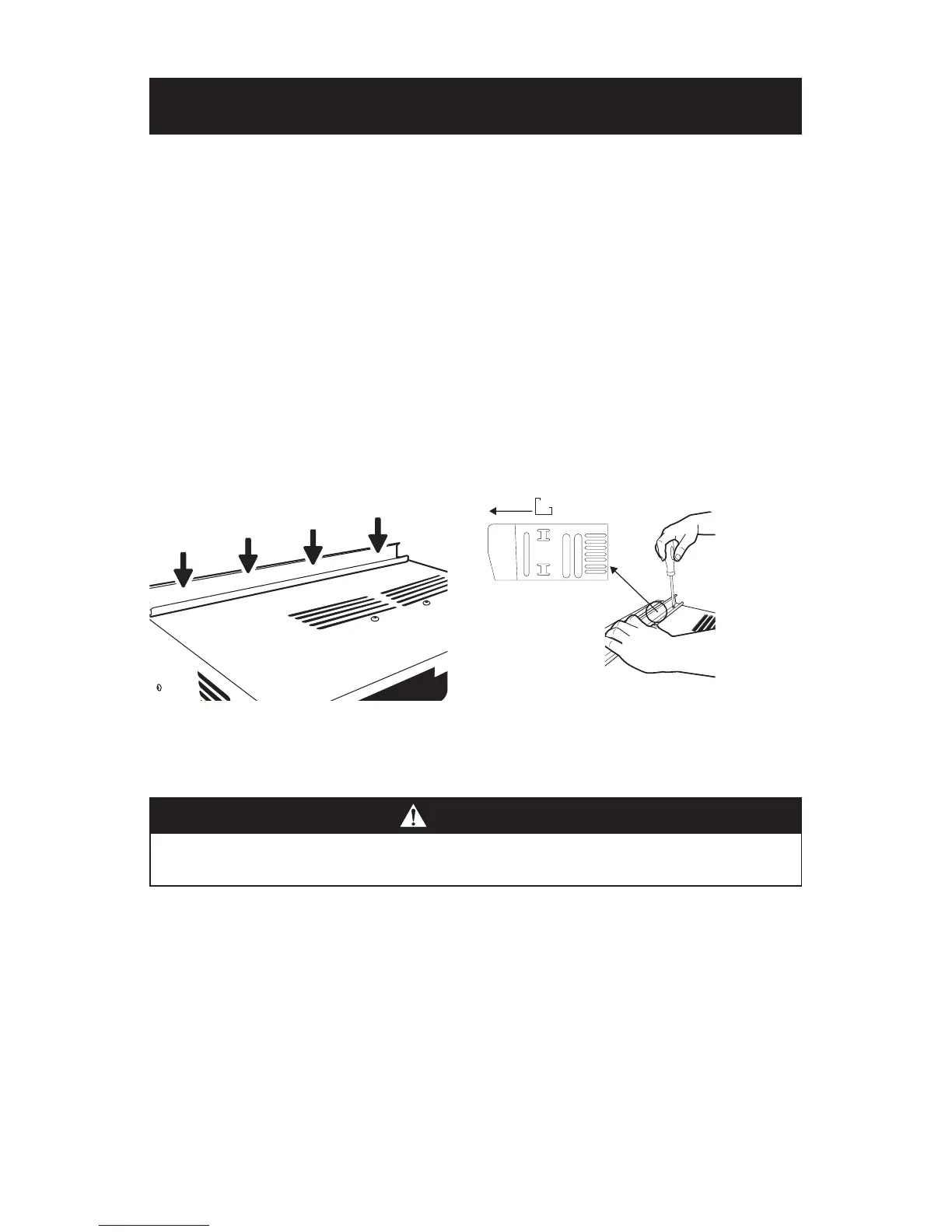

TOP RAIL ASSEMBLY
The top rail must be assembled prior to installing the air conditioner in the window.
Tools Needed: Phillips screwdriver
1. Remove the air conditioner from the box and place on a hard flat surface.
2. Remove top rail from the bottom of the packaging material.
3. Align the hole in the top rail with those in the top of the unit. (See Fig. 2)
4. Secure the top rail to the unit with the 3/8” screws. (See Fig. 3)
NOTE: For safety reasons, all 4 screws must be used to attach top rail.
CAUTION
When handling the unit, be careful to avoid cuts from the sharp metal edges and
aluminum fins on the front and rear coils
Room Side
Fig. 2
Fig. 3
To Next Page
