SET UP & USE
HOW TO INSTALL
NOTE: Top rail and sliding panels at each side are oset to provide the proper pitch to
the rear of 5/16”. This is necessary for proper condensed water utilization and
drainage. If you are not using the side panels for any reason, this pitch to the
rear must still be maintained.
1. Place unit on floor, a bench or a table. There is a left and right window filler panel -
be sure to use the proper panel for each side. NOTE: Filler panels are clearly marked
left and right. When installed, the flange for securing the panel in place to the
window sill should be facing into the room.
A. Hold the accordion panel in one hand and gently pull back the center to
free the open end.
B. Slide the free end of the panel into the cabinet. Slide the panel down. Be
sure to leave enough space to slip the top and bottom of the frame
into the rails on the cabinet. (See Fig. 4)
C. Once the panel has been installed on the side of the cabinet, make sure it
sits securely inside the frame channel by making slight adjustments.
Slide the top and bottom ends of the frame into the top and bottom rails
of the cabinet. (See Fig. 5)
D. Slide the panel all the way in and repeat on the other side.
NOTE: Once installed, the accordian panel cannot be removed without detaching the
frame from the air conditioner.
2. Keep a firm grip on the air conditioner. Carefully place the unit into the window
opening so the bottom of the air conditioner frame is against the window sill.
Carefully close the window behind the top rail of the unit.
CLICK

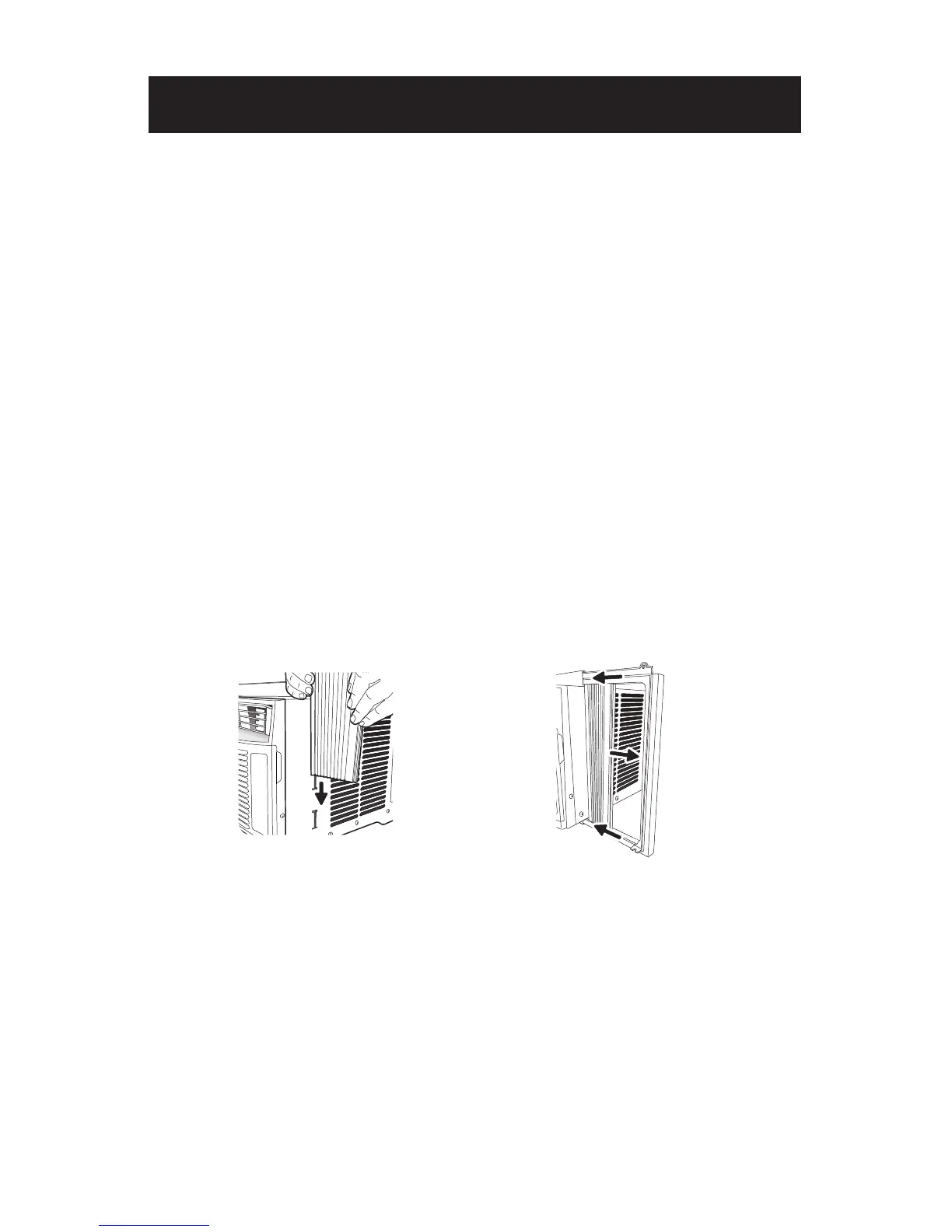

Fig. 4 Fig. 5
