3. Extend the side panels out against the window frame. (See Fig. 6)
4. Drive three 1/2” locking screws through filler panel frame holes into window sash on
both the left and right side. (See Fig. 7 & 8)
5. Place the frame lock between the frame extensions and the window sill. Drive 3/4”
locking screws through the frame lock and into the sill on both the left and right
side. (See Fig. 9)
NOTE: To prevent window sill from splitting, drill 1/8” pilot holes before driving
screws.
6. To secure lower sash in place, attach right angle sash lock with two 3/4” screws.
(See Fig. 10)
7. Cut foam seal strip and insert in the window space between the upper and lower
sashes. (See Fig. 11)

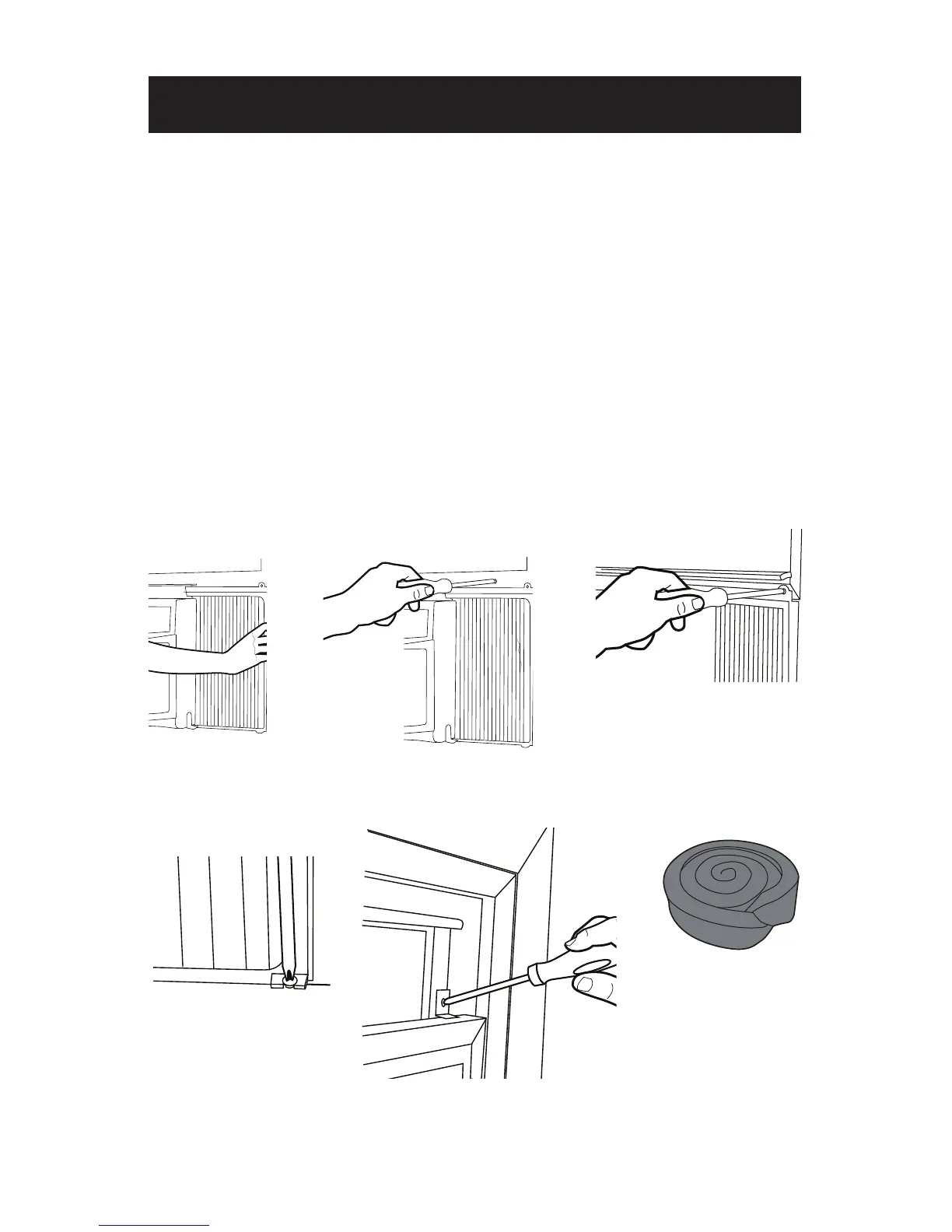

Fig. 6
Fig. 9
Fig. 8
Fig. 10 Fig. 11
Fig. 7
