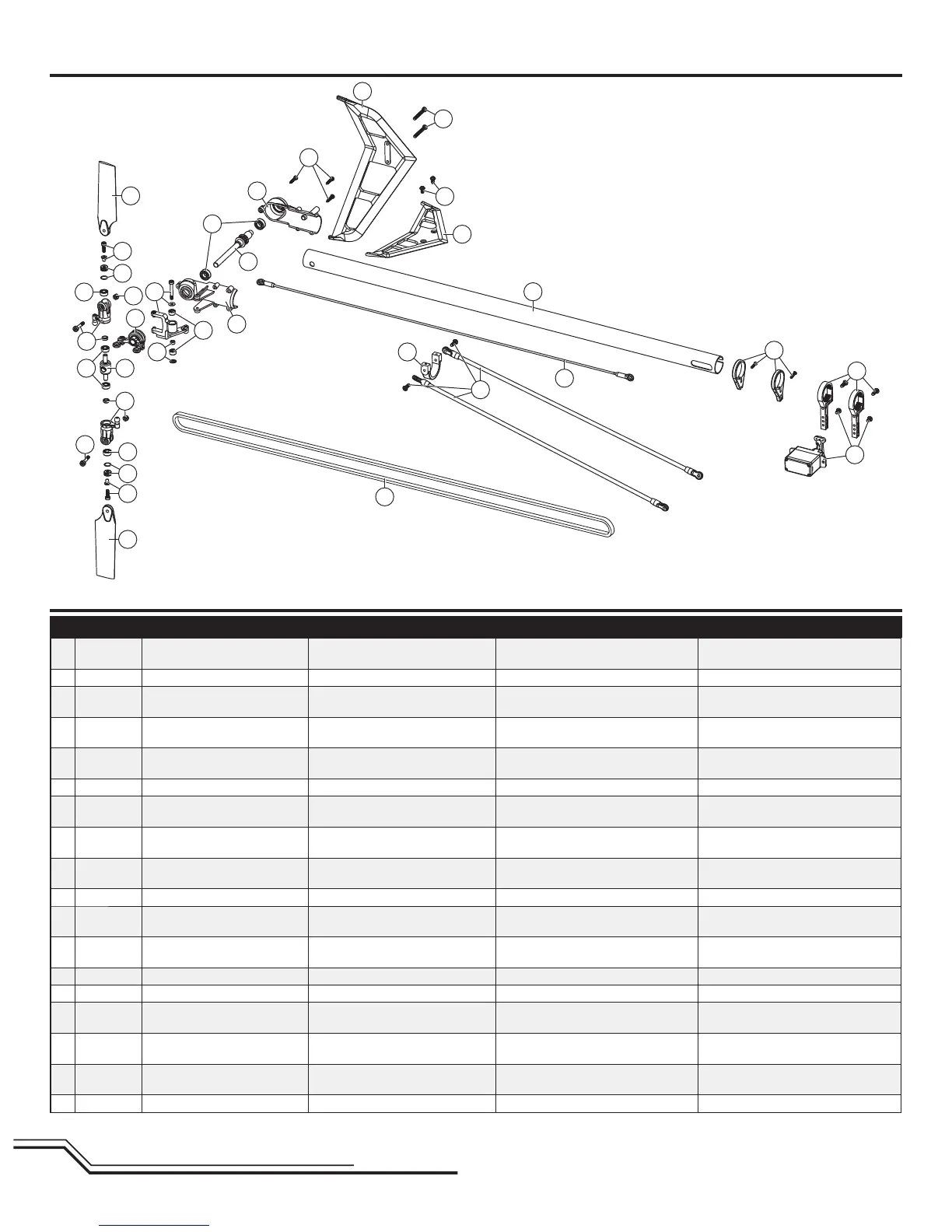

Blade 360CFX - Parts List

42
# Part # English Deutsch Français Italiano
1 BLH1636
Control/Linkage Ball, Short (10):
360 CFX
Blade Kugelköpfe kurz (10): 360 CFX
Tringleries courtes/rotules (10) : 360
CFX
Sfere per i rinvii, corte (10): 360 CFX
2 BLH1645 Landing Gear Set: 360 CFX Blade Landegestell: 360CFX Train d’atterrissage: 360 CFX Set carrello di atterraggio: 360 CFX
3 BLH1657
Tail Servo Boom Mount (2):
360 CFX
Blade Heckrohr (2): 360CFX Support de servo d’anticouple: 360 CFX
Supporto servo per tubo coda (2):
360 CFX
4 BLH1660
Tail Pushrod Support/Guide Set:
360 CFX
Blade Halter Heckrotoranlenkstange:
360CFX
Guide de tringlerie d’anticouple
Set supporto/guida per comando coda:
360 CFX
5 BLH1662A
Aluminum Horizontal Stab Fin
Mount: 360 CFX
Blade Aluminium Leitwerksbefesti-
gung/ Heckfi nne: 360 CFX
Support de stabilisateur en aluminium:
360 CFX
Supporto in alluminio per piano di coda
orizzontale: 360 CFX
6 BLH1663 Tail Case Set: 360 CFX Blade Heckrotor Gehäuse: 360 CFX Boîtier d’anticouple: 360 CFX Set scatola coda: 360 CFX
7 BLH1665
Tail Rotor Shaft and Drive Pulley
(2): 360 CFX
Blade Heckrotorschaft (2): 360 CFX Axe d’anticouple: 360 CFX
Albero rotore di coda con puleggia (2):
360 CFX
8 BLH1667
Tail Rotor Pitch Lever Set:
360 CFX
Blade Heckrotor Anlenkungset: 360
CFX
Levier d’anticouple: 360 CFX
Set leva passo per rotore di coda:
360 CFX
9 BLH1668
Tail Rotor Pitch Control Slider
Set: 360 CFX
Heckrotorschiebehülse Set : 360 CFX Coulisseau d’anticouple: 360 CFX
Set cursore controllo passo rotore di
coda: 360 CFX
10 BLH1669 Tail Rotor Hub Set: 360 CFX Heckrotor Zentralstück Set : 360 CFX Moyeu d’anticouple: 360 CFX Set mozzo rotore di coda: 360 CFX
11 BLH1670
Tail Rotor Blade Grip/Holder Set:
360 CFX
Blatthalter Heckrotor: 360 CFX Pieds de pales d’anticouple: 360 CFX Set portapala rotore di coda: 360 CFX
12 BLH1672C
Stab/Fin Set, Carbon Fiber:
360 CFX
Carbon Leitwerk / Heckfi nne :
360 CFX
Dérive et stabilisateur en carbone:
360 CFX
Set piani di coda, fi bra di carbonio:
360 CFX
13 BLH1901 Helical Main Gear: 360 CFX Hauptzahnrad schrägverz.: 360 CFX Couronne principales hélicoïdale: 360 CFX Ingranaggio principale elicoidale: 360 CFX
14 BLH1904 Helical Pinion, 12T: 360 CFX Ritzel 12 Z schrägverz.: 360 CFX Pignon 12T hélicoïdal Pignone elicoidale, 12T: 360 CFX
15 BLH4304 Main Blade Shims (4): 360 CFX
Unterlegscheiben Rotorblatthalter (4):
360 CFX
Rondelles de pales principales (4): 360
CFX
Spessori per pala principale (4): 360 CFX
16 BLH4701 Fbl Main Rotor Grip Set: 360 CFX Rotorblatthalterset: 360 CFX Pieds de pales principales FBL: 360 CFX
Set portapala Fbl rotore principale: 360
CFX
17 BLH4702 Fbl Main Grip Arms: 360 CFX Rotorblatthalter: 360 CFX
Leviers de pieds de pales principales:
360 CFX
Bracci portapala principale Fbl: 360 CFX
18 BLH4703 Fbl Linkage Set: 360 CFX Flybarlessanlenkungen: 360 CFX Tringleries FBL: 360 CFX Set rinvii Fbl: 360 CFX
Parts List / Ersatzteile / Pièces de Rechange / Pezzi di Ricambio
12
12
45
11
11
1018
11
11
45
43
42
44
4
3
50
41
5
10
9
11
11
11
8
8
8
10
11
6
6
6
7
6
6
5
