19
Before the First Flight (continued)

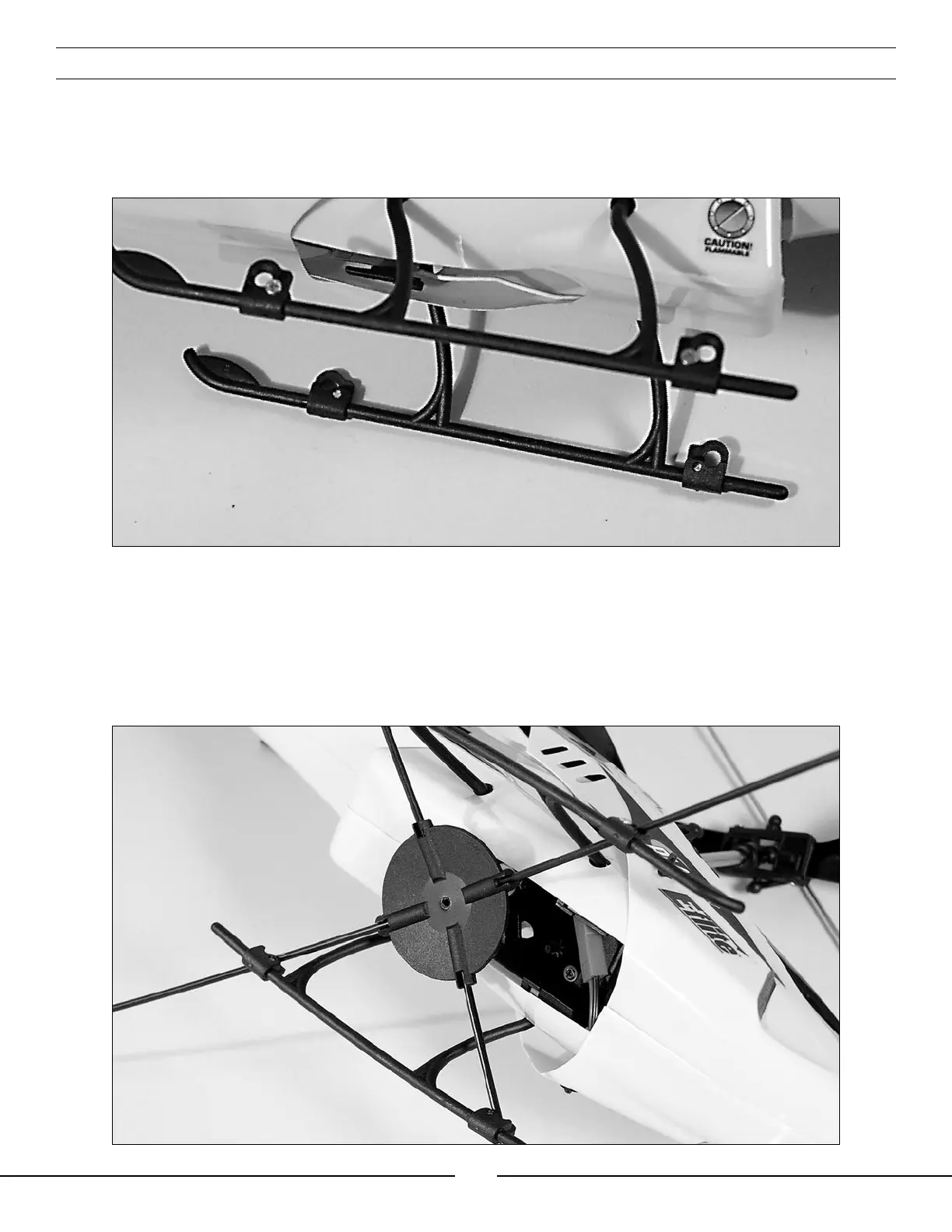

• Once you have installed all four attachments, install the four screws making sure that they thread properly into
the back side of the attachment. It may be helpful to squeeze the attachment with a pair of pliers to make it
easier to thread the screw into the backside of the attachment. Do not tighten the screws all the way at this
time as the attachments will need to be adjusted for proper alignment once the training gear rods are installed.
• Locate the four training gear rods and rod mounting base. Note that the rod mounting base has four channels
into which the training gear rods will mount. The open side of these channels will face upward toward the
bottom of the helicopter when properly installed.
Carefully pass each of the rods through the attachments on the landing skids and into the channels on the base.
Take care to not pull the landing skids out of their mounts in the battery supports.
