13

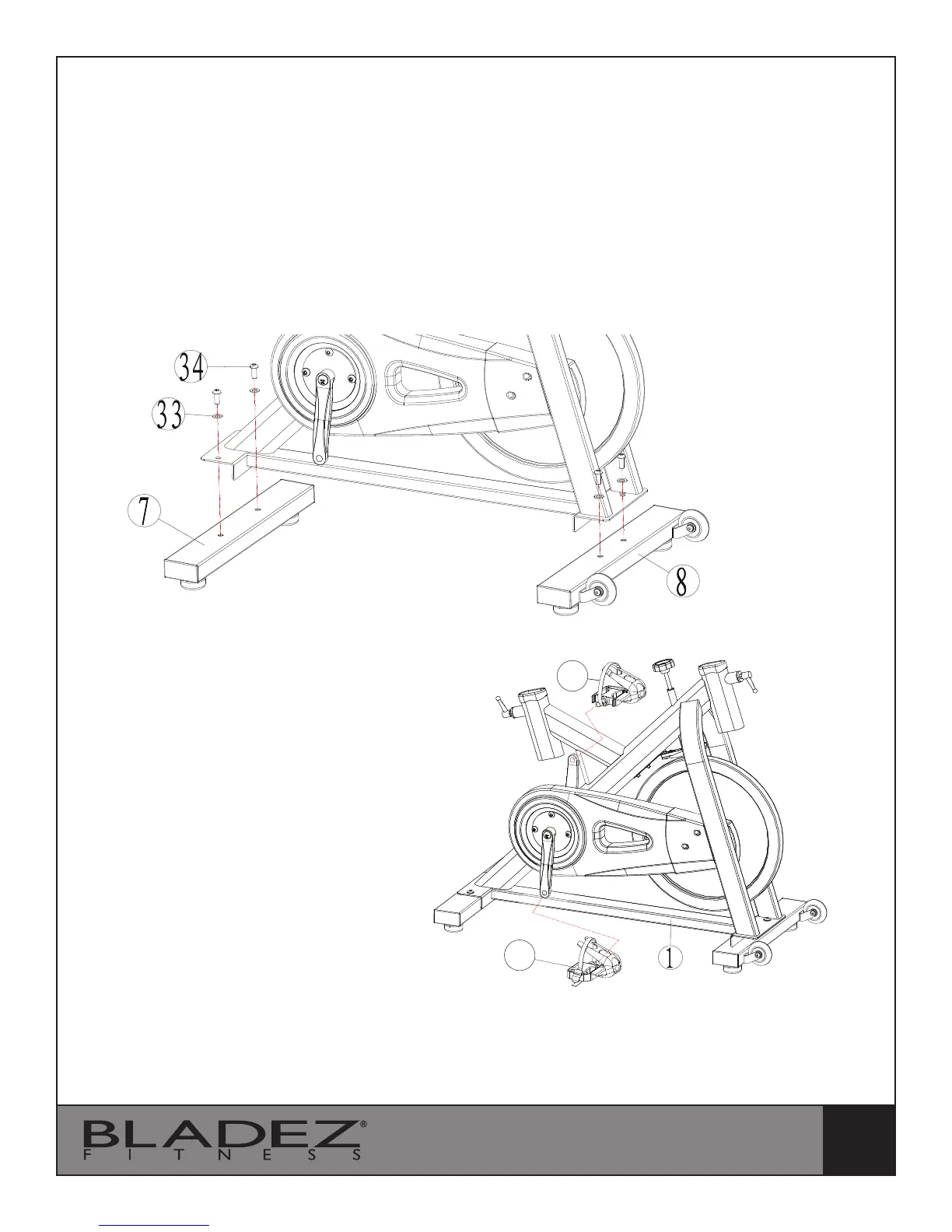

STEP 1
ASSEMBLE FRONT AND REAR
Follow the gure below, attach the Front Stabilizer (8) and Rear Stabilizer (7) under
the Main Frame (1) with 4 pcs of Button Head Hex Socket Bolts M10*25L(34), 4 pcs
of Flat Washer 20*10*1.5(33) by using the supplied Allen Wrench for fastening.
STEP 2
INSTALL LEFT AND RIGHT
PEDALS
Refer to the gure on right,
thread the Left Pedal (35-L)
and Right One (35-R) into the
Cranks. Tighten them with Open
Wrench #15. Tighten in counter
clockwise direction for left pedal
and clockwise direction for right
pedal.
35-L
35-R
To Next Page
