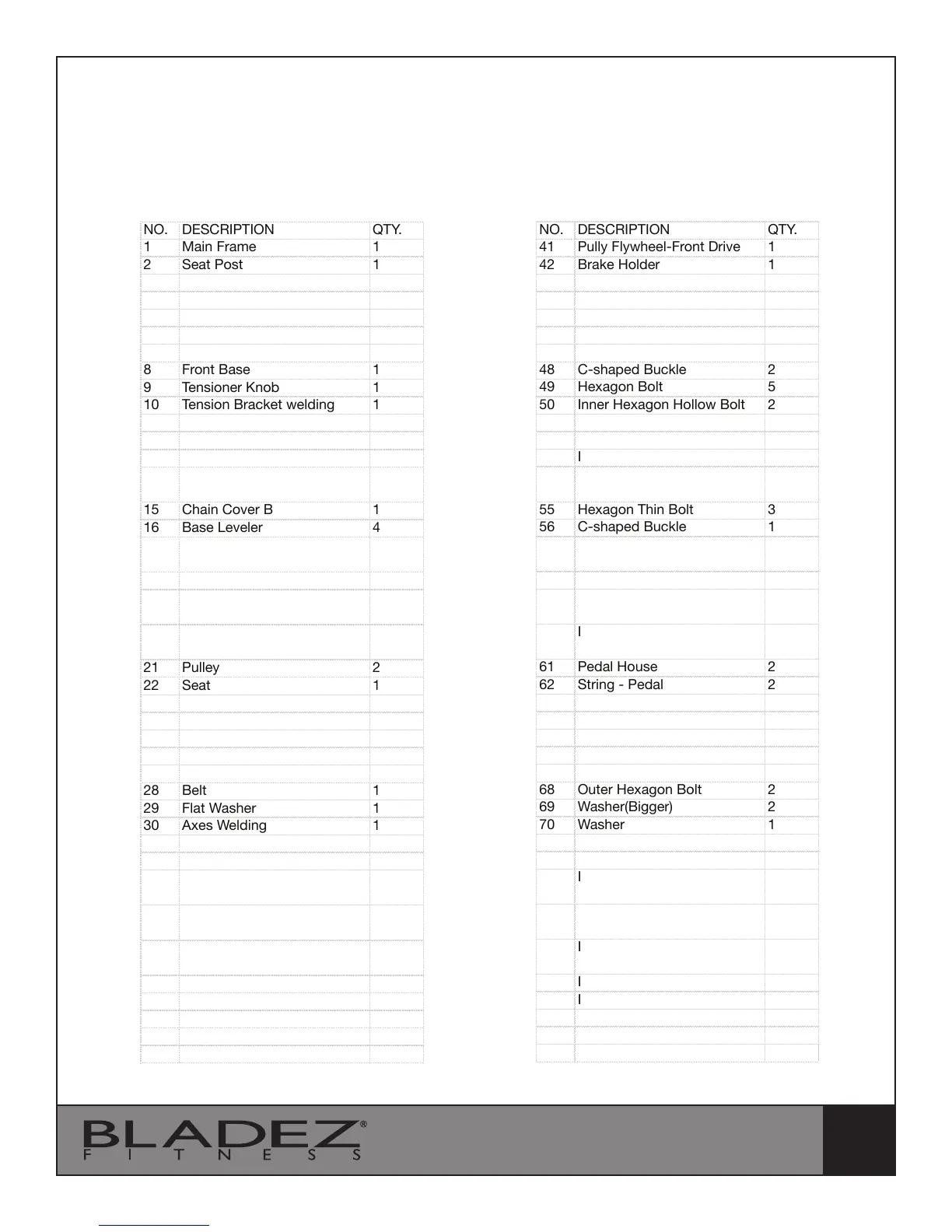

BLADEZ Master GS - PARTS LIST

23
PARTS LIST
To order replacement parts: provide your customer service representative with the product model
number and the part number located on the Parts List below, along with the quantity you require.
NO. DESCRIPTION QTY.
1 Main Frame 1
2 Seat Post 1
3 Seat Slider 1
4 Handlebar Post 1
5 Handlebar 1
6 Cap Nut 1
7 Rear Base 1
8 Front Base 1
9 Tensioner Knob 1
10 Tension Bracket welding 1
11 Plastic sleeve 1
12 R/L Crank 1 set
13
Phillips Self-Tapping Screw 8
14
Chain Cover A 1
15 Chain Cover B 1
16 Base Leveler 4
17
Plastic Sheath –Inner
Pipe(long) 1
18 Stabilizer Cap 4
19
Seat Slider Cap 1
20
Front Cover 1
21 Pulley 2
22 Seat 1
23 Pop Pin 1
24 Leather Brake Pad 1
25 Brake Soft Mat 1
26 Plastic Mat – Chain Cover 2
27 Sheet Metal Screw Clip 1
28 Belt 1
29 Flat Washer 1
30 Axes Welding 1
31 Plastic washer 1
32 Crank Cover 2
33
Flat Washer 4
34
Button Hex Socket Head
Screw 4
35
Right & Left Pedal 1set
36 Flywheel 1
37 Flywheel Spindle 1
38 PK Belt wheel 1
39 Sleeve 1
40 Tension Spring 1
NO. DESCRIPTION QTY.
41
Pully Flywheel-Front Drive 1
42 Brake Holder 1
43 Spring Slice 1
44 Bearing 6001 2
45 Bearing 6004 2
46 Bearing 608 4
47
Brake Thread Rob 1
48 C-shaped Buckle 2
49
Hexagon Bolt 5
50
Inner Hexagon Hollow Bolt 2
51
Brake Adjusting Nut 1
52 Washer 2
53
Inner Hexagon Flange Bolt 2
54
Cross Recessed
Countersunk Bolt 2
55 Hexagon Thin Bolt 3
56
C-shaped Buckle 1
57
Hexagon Flange Bolt 1
58 Nylon Nut 1
59
Cross Recessed Pan Head
Bolt 2
60
Inner Hexagon Flat Round
Head Bolt 2
61
Pedal House 2
62
String - Pedal 2
63
Plastic Sheath – Inner Pipe 2
64 Philips Screws 1
65
Cap Nut 2
66
Handle 3
67
Flat Mat (bigger and thicker) 1
68 Outer Hexagon Bolt 2
69
Washer(Bigger) 2
70
Washer 1
71
Cap Nut 1
72 Philips Screws 2
73
Inner Hexagon Flat Round
Head Bolt 1
74
Washer 1
75
Inner Hexagon Flat Round
Head Bolt 4
76
Inner Screw Cap 2
77 Inner Screw Cap 2
78
Limited bearing 2
79
Spring 2
80 Computer Console 1
