HG-CF-1129 Rev. F - 19.10.09
Page 3

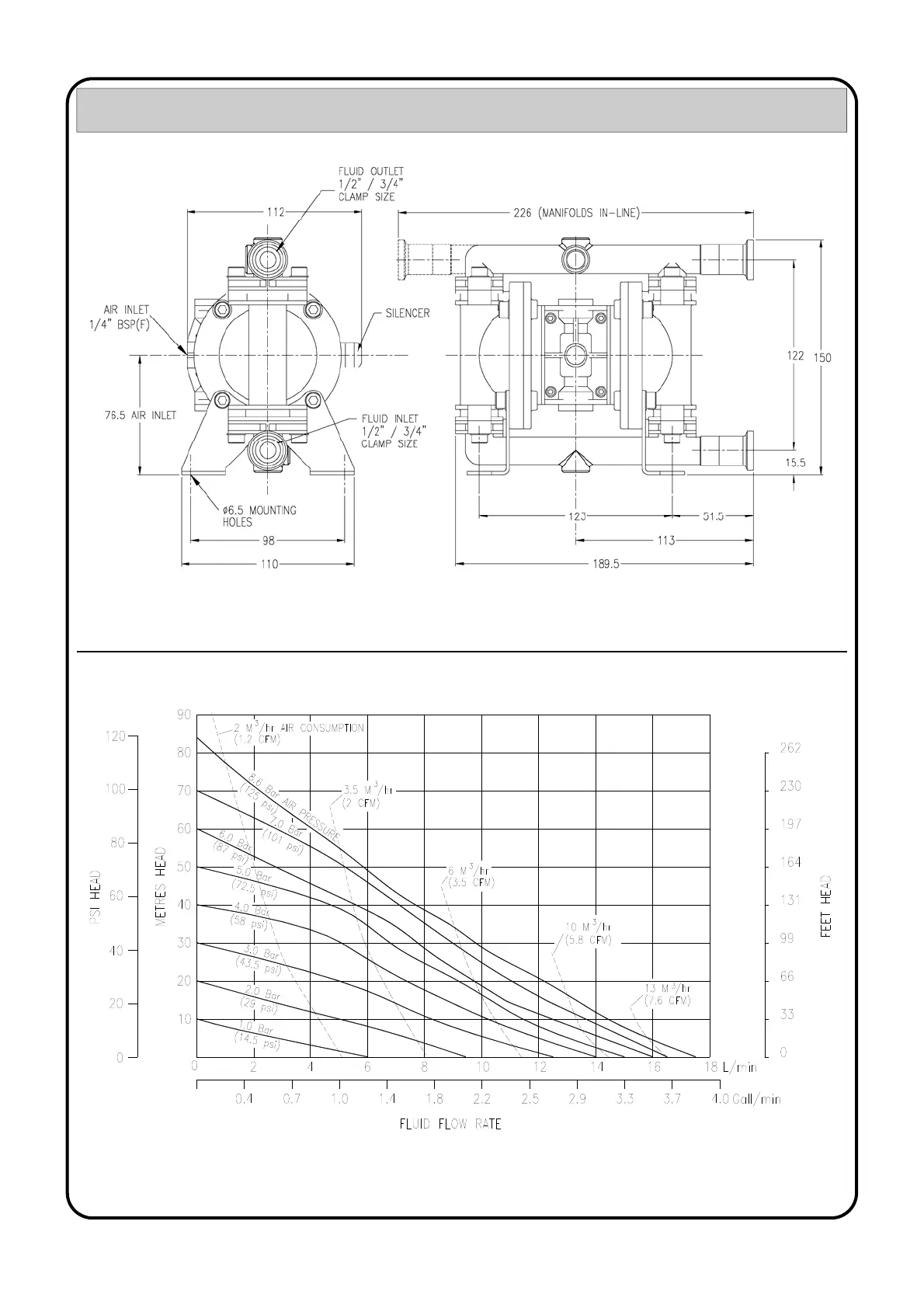

GA Drawing & Performance Curve
General Assembly :- B06 FDA Metallic pump, all dimensions +/- 1mm
B06 Metallic Pump Performance Curve, performance based on water at ambient temperature.
