Blanco BCM6X - CONTROL PANEL DESCRIPTION; COFFEE MAKER EXPLODED DRAWING

- 11 -
8
9
10
13
12
11
14
15
16
A

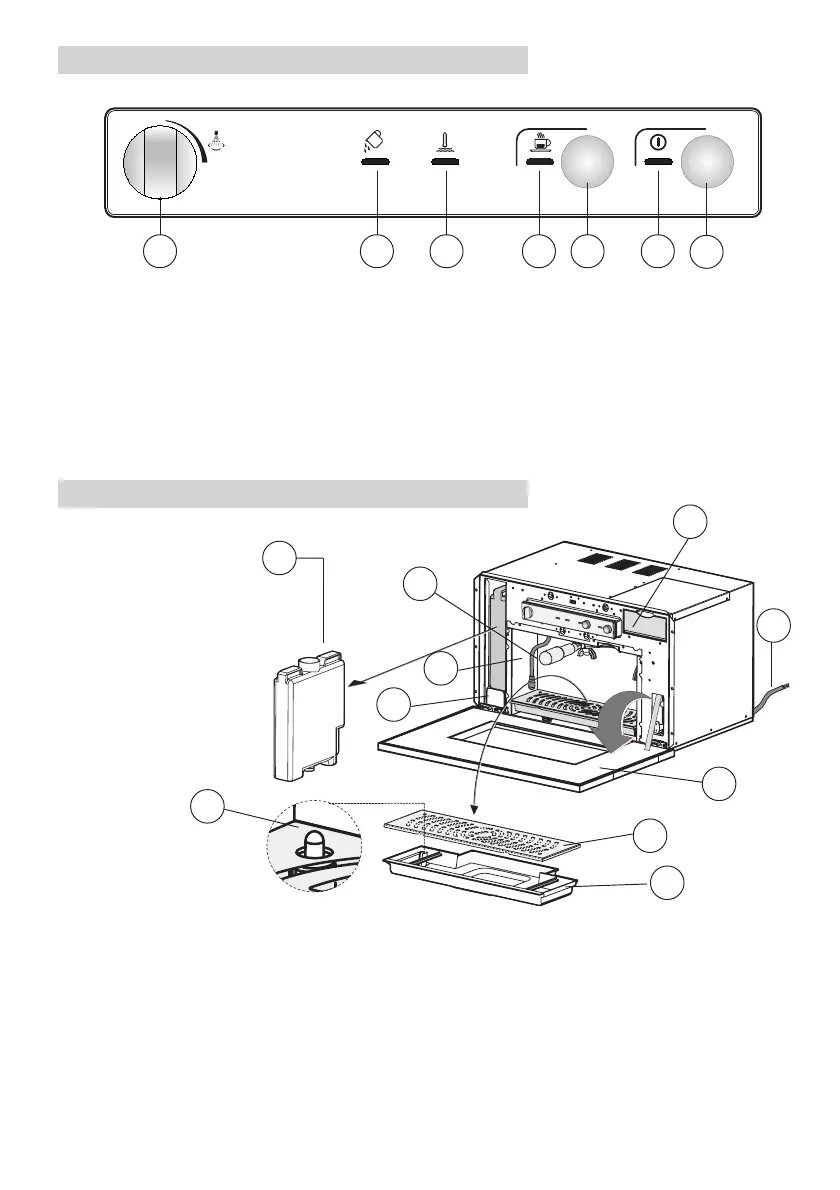

CONTROL PANEL DESCRIPTION
COFFEE MAKER EXPLODED DRAWING
8 - Filter holder (k2)
9 - Steam nozzle and pipe
10 - Electricity supply cord
11 - Water tank
12 - Cup support grid
13 - Liquid drip tray
14 - Float
15 - Water tank undercarriage
16 - Coffee container cover
A - External door
7 6 5 4
3
2 1
1 - On/Off switch
2 - ON indicator light
3 - Coffee dispenser button
4 - Coffee dispenser indicator light
5- Heating element indicator light
6 - No water in tank indicator light
7 - Steamer Nozzle Control
