Blanco BCM6X - INSTALLATION AND WARNINGS; BUILT-IN INSTALLATION

- 8 -
500
335
20
565
590
560
378
360
13 min
INSTALLATION AND WARNINGS
Before installing the appliance, check that correct ventilation
is ensured in the cabinet, as shown in the figure.
Do not block or obstruct openings or vents for ventilation
and heat dissipation and do not introduce water or liquids
of any kind.
iMPORTANT!!
The appliance must be installed in such a way so as to
provide easy access to the plug.
PLEASE NOTE!
Do not use the open front panel of the appliance to support
objects (fig. 1).Ensure that the liquid drip tray is always in
position before closing the coffee maker ‘door’.

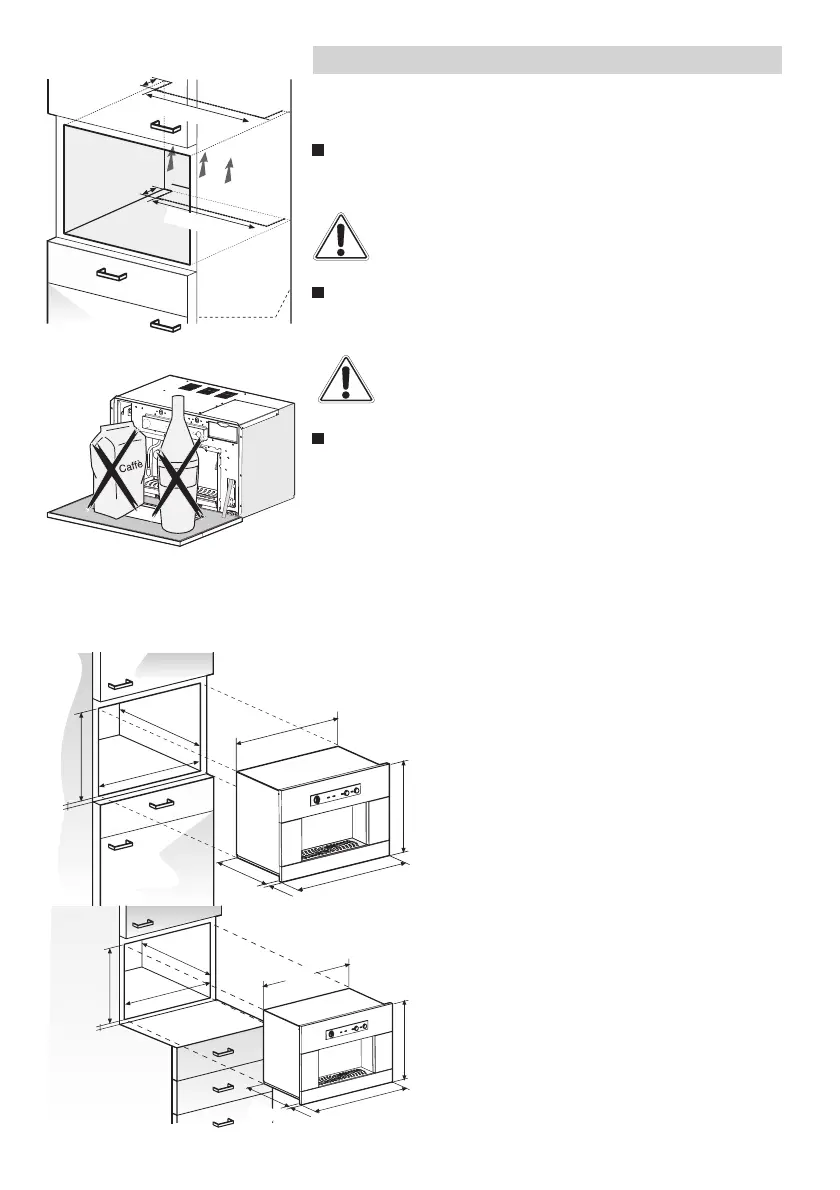

• BUILT-IN INSTALLATION
This coffee maker is designed to be recessed in a column
(fig. 2) or cabinet (fig. 3)
(fig. 2) Overall dimensions for installation
in column cabinet.
(fig. 3) Overall dimensions for
installation in cabinet.
Additional installation points
fig.1
fig.2
45 mm
500 mm
500 mm
45 mm
cabinet
without
back panel
355 min
20
590
565
378
360
560
335
fig.3
13 min
