MAINTENANCE
WARNING:
servicing should be carried out only by authorised personnel.
11) REPLACING COMPONENTS
NOTE:
BEFORE ANY MAINTENANCE REQUIRING REPLACEMENT OF A COMPONENT IS UNDERTAKEN
ENSURE THAT THE ELECTRICAL LEAD HAS BEEN ISOLATED AND REMOVED FROM THE POWER
POINT.

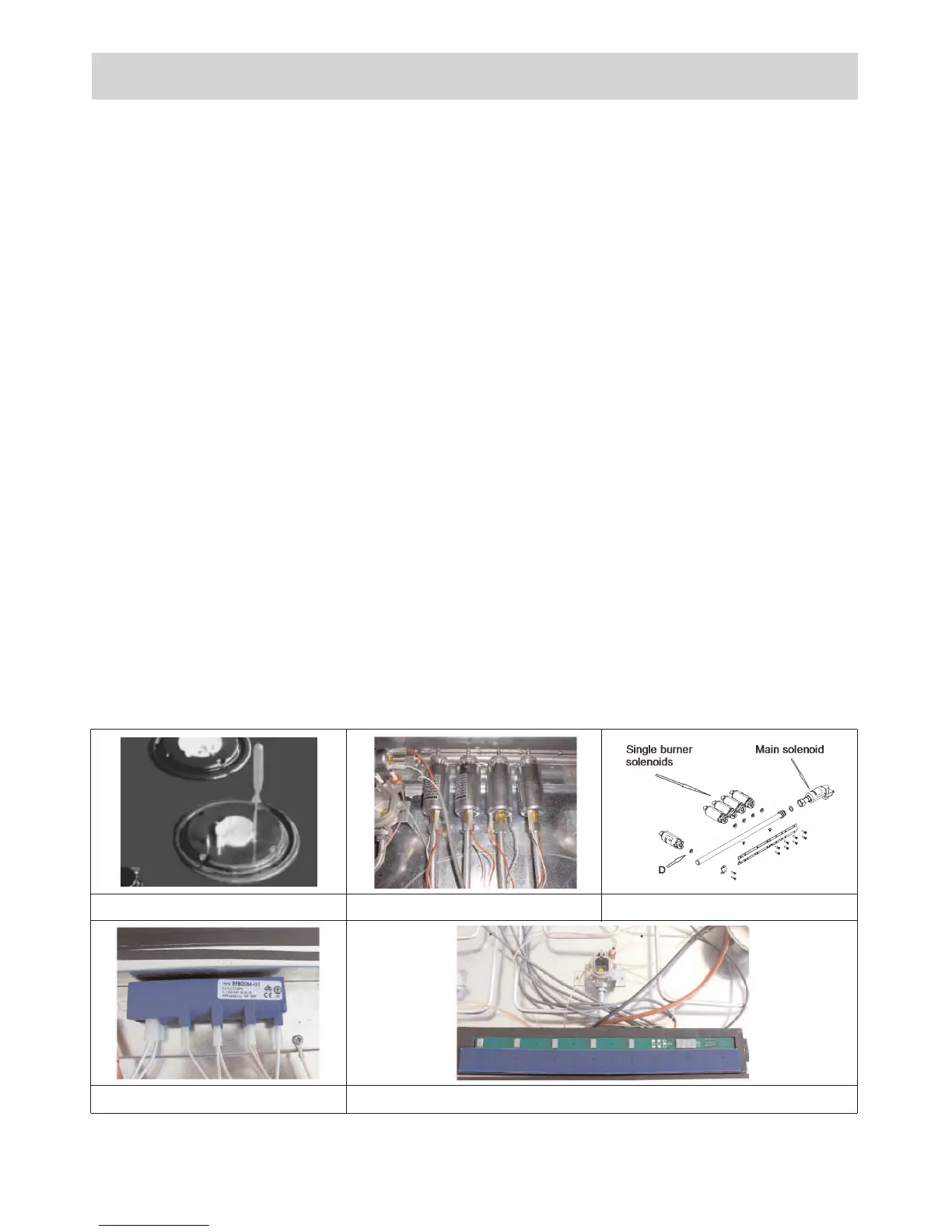

To replace the components housed inside the hob it is necessary to remove the flanges by loosening the
screws (fig. 11), removing the ceramic glass surface.
After carrying out the operations listed above, it is possible to replace the solenoids (fig. 12 - 13), the
electrical components and the electronic card (fig. 14 - 15).
We advise you to change the seal “D” every time you replace a solenoid, in order to guarantee a perfect
seal between the body and the ramp.
To facilitate the work of the maintenance operator, we have prepared a table, printed on the next page,
indicating the power cable types and sections.
