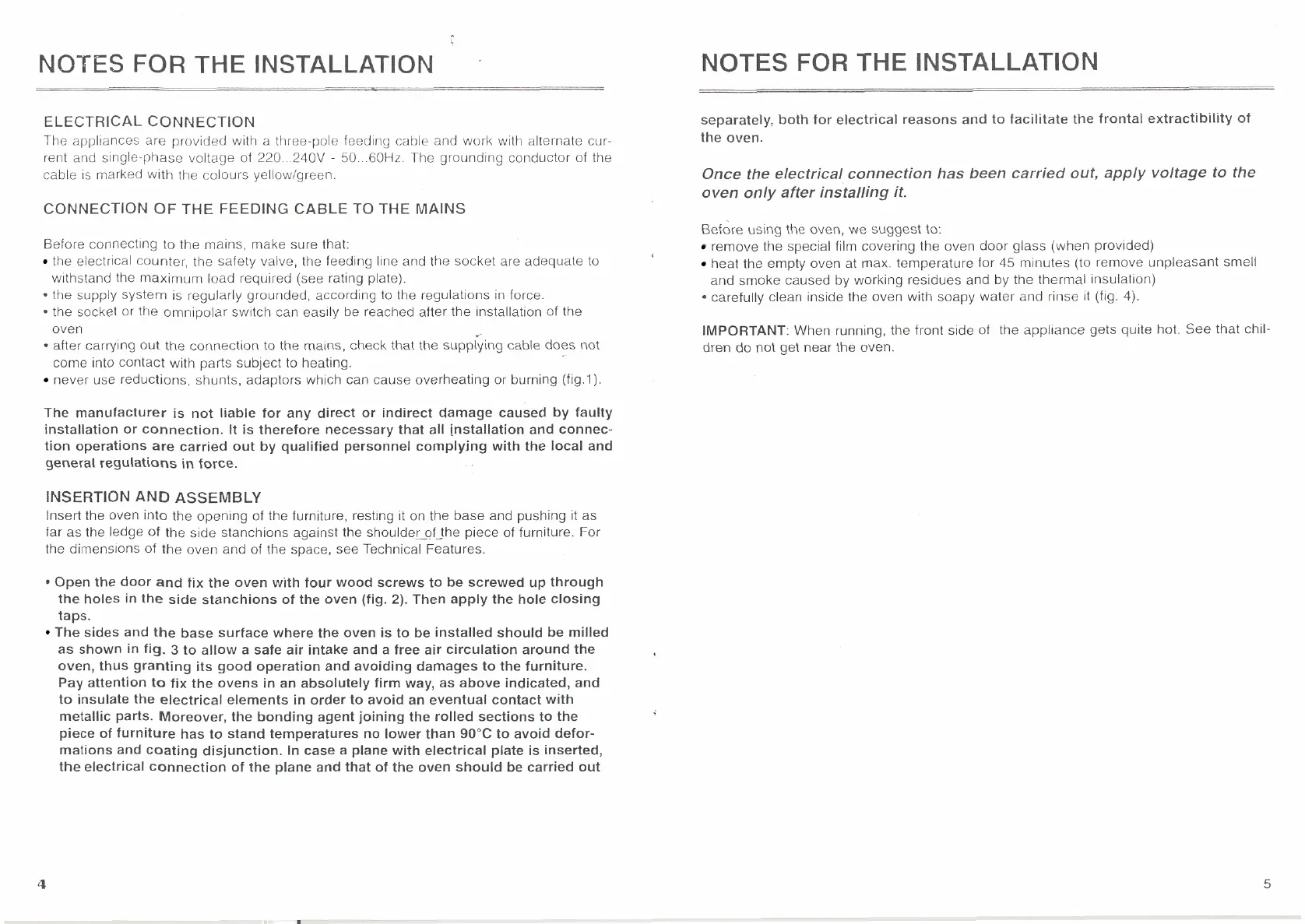

NOTES
FOR
THE
INSTALLATION
.
-
ELECTRICAL CONNECTION
The appliances are provided with a three-pole feeding cable and work with alternate cur-
rent and slngle-phase voltage of 220.240V
-
5060Hr. The grounding conductor of the
cabie is marked with the colours yellowlgreen.
CONNECTION OF THE FEEDING CABLE TO THE MAINS
Before connecting to the mains, make sure that:
the electrical counter, the safety valve, the feeding line and the socket are adequate to
w~thstand the maximum load required (see rating plate).
the supply system is regularly grounded, according to the regulations in force.
-
the socket or the omnipoiar switch can easily be reached after the installation of the
oven
after carrying out the connection to the mains, check that the supplying cable does not
come into contact with parts subject to heating.
never use reductions, shunts, adaptors which can cause overheating or burning (fig.1).
The manufacturer is not liable for any direct or indirect damage caused by faulty
installation or connection. It is therefore necessary that all installation and connec-
tion operations are carried out by qualified personnel complying with the local and
general regulations
in
force.
INSERTION AND ASSEMBLY
Insert the oven into the opening of the furniture, resting it on the base and pushing it as
far as the ledge of the side stanchions against the shoulder-ofthe piece of furniture. For
the dimenslons of the oven and of the space, see Technical Features.
.
Open the door and fix the oven with four wood screws to be screwed up through
the holes in the side stanchions of the oven (fig.
2).
Then apply the hole closing
taps.
The sides and the base surface where the oven is to be installed should be milled
as shown in fig.
3
to allow a safe air intake and a free air circulation around the
oven, thus granting its good operation and avoiding damages to the furniture.
Pay attention to fix the ovens in an absolutely firm way, as above indicated, and
to insulate the electrical elements in order to avoid an eventual contact with
metallic
parts. Moreover, the bonding agent joining the rolled sections to the
piece of furniture has to stand temperatures no lower than
90°C
to avoid defor-
NOTES
FOR
THE
INSTALLATION
separately, both for electrical reasons and to facilitate the frontal extractibility of
the oven.
Once the electrical connection has been carried out, apply voltage to the
oven only afler installing it.
el ore
using the oven, we suggest to:
remove the special film covering the oven door glass (when provided)
heat the empty oven at max. temperature for 45 minutes (to remove unpleasant smell
and smoke caused by working residues and by the thermal insulation)
.carefully clean inside the oven with soapy water and rinse
it
(fig.
4).
IMPORTANT: When running, the front side of the appliance gets quite hot. See that chill
dren do not get near the oven.
mations and Coating disjunction. In case a plane with electrical plate is inserted,
theelectrical connection of the plane and that of the oven should be carried out
