3.3 Description
1
2
3
4
5
6
8
9
10
11
13
1-7D
7
12

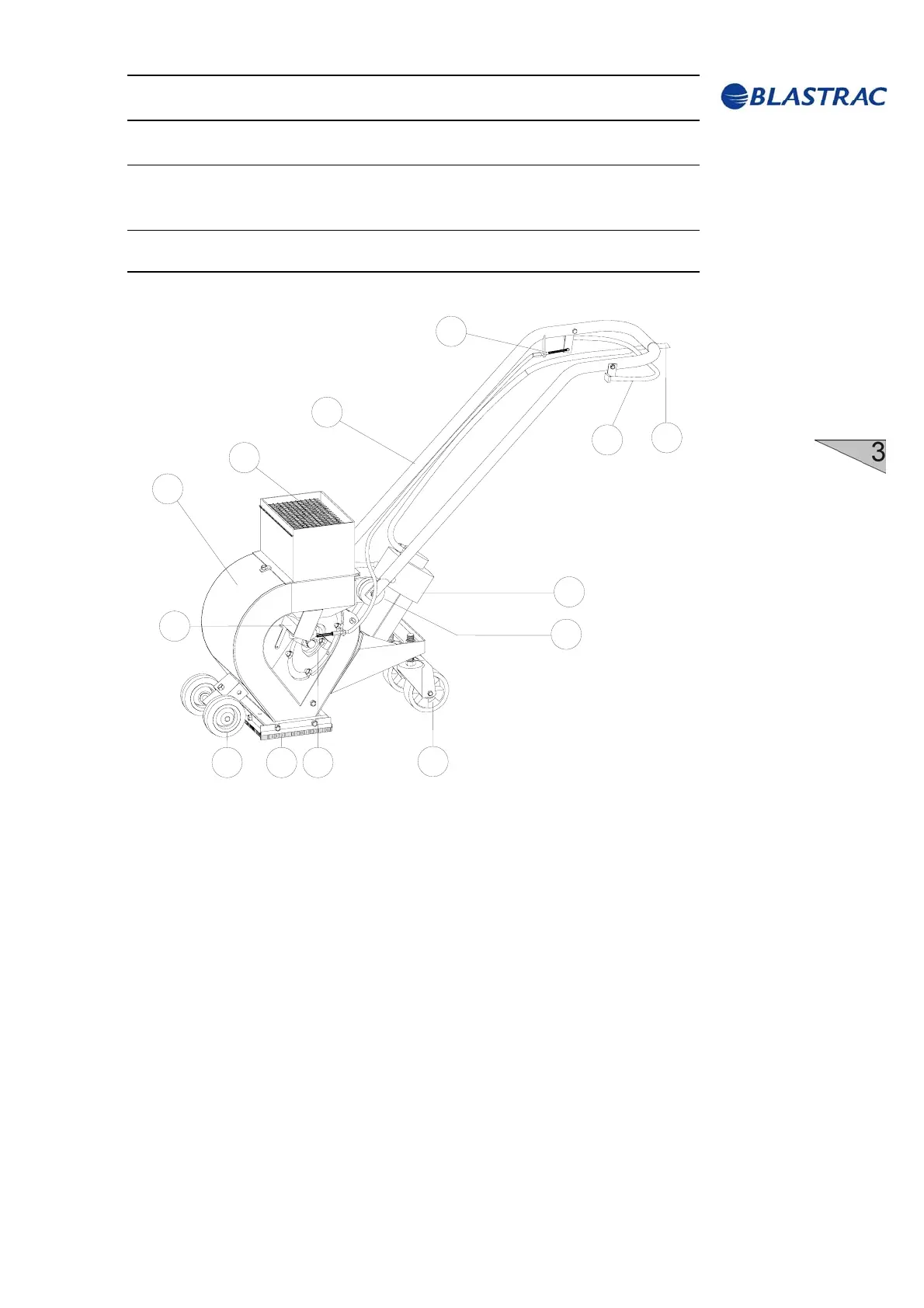

Fig. 3.1
1 Blast housing 8 Sealing
2 Separator 9 Control cage
3 Steering handle 10 Swivel castors
4 Electric cable 11 Toothed washer
5 Abrasive control handle 12 Blast wheel motor
6 Limit switch 13 Control lever
7 Wheels
Like many revolutionary inventions the blast wheel method is based
on a simple principle: after mechanical pre-acceleration the abrasive
is thrown onto the surface at high speed by the blast wheel. Once the
abrasive has impacted on the surface it rebounds into a rebound
plenum. The rebound plenum deflects the abrasive into an air current
separator. Here dust and other contaminants are removed from the
abrasive so that only abrasive containing a very small amount of dust
is fed into the abrasive storage hopper for re-use by the blast wheel.
