Operating Instructions 1-7D
General
3.4 Operating elements
The abrasive control handle is located on the machine handle and
regulates the magnetic valve to control the flow of abrasive towards the
blast wheel. The valve is hand-operated and can be set to each amount
of abrasive throughput by changing the handle position.

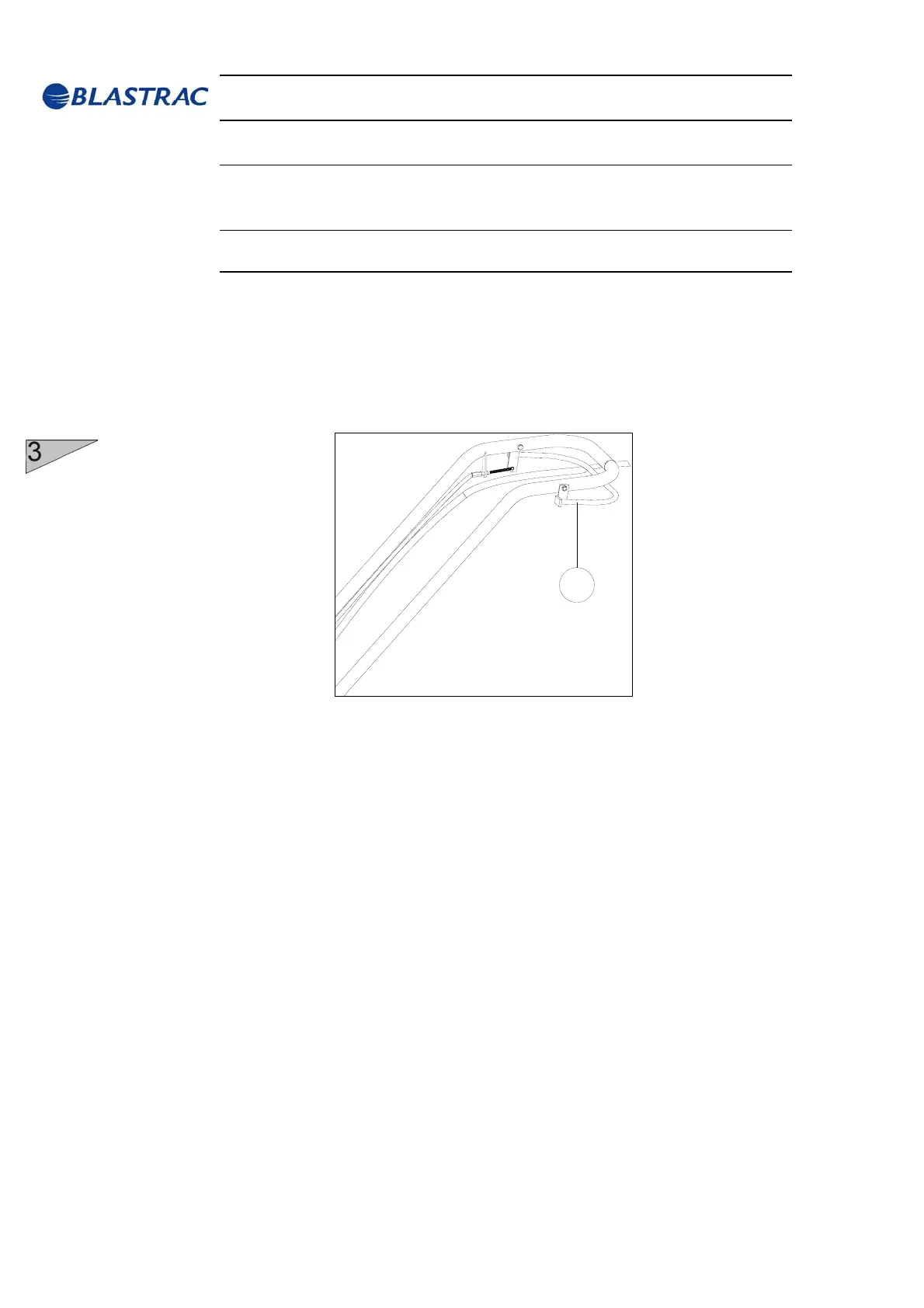

Fig. 3.2
1 Blast wheel motor ON / OFF
1
Blast wheel motor ON / OFF
This switch lever (1) below the control handle serves for controlling the
blast wheel motor. Actuating the switch lever closes the power circuit to
switch on the blast wheel motor. When the lever is released, the blast
wheel motor switches off (dead man’s handle).
