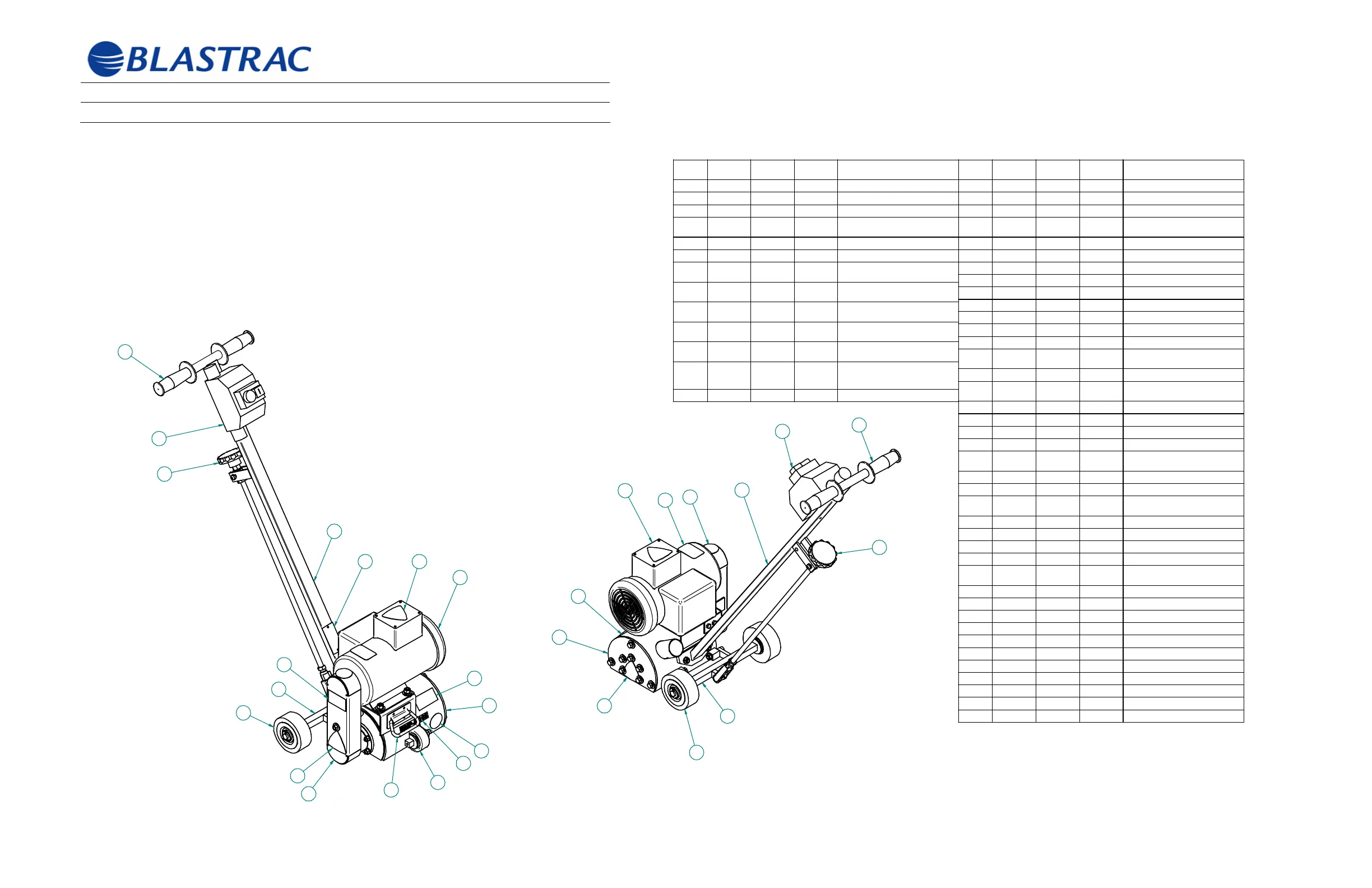

Blastrac BMP-E165 - Page 51

Operating Instructions BMP-E165
Section 10 – Spare Parts April 2006
©Blastrac April 2006
50
ITEM QUANTITY CATALOG
NUMBER
DRAWING
NUMBER
DESCRIPTION
1 1 P003879 852-0008 HOUSING WELDMENT
2 1 P003881 852-0010 HANDLE WELDMENT
3 1 P003673 852-0007 REAR AXLE WELDMENT
4 1 RS-165-062 -- MOTOR/ELECTRIC 115V, 15.8A,
1.5HP 1725 RPM
5 1 P003672 852-0006 STAND OFF/BELT GUARD
6 1 P003882 852-0011 BELT COVER
7 1 P003880 852-0009 COVER PLATE / HOUSING
8 1 P003736 -- CONTROL PANEL AND HARNESS
9 1 P003940 -- HEIGHT ADJUSTMENT ASSEMBLY
10 1 P003942 -- DRIVE PULLEY / UPPER
11 1 P003943 -- DRIVE PULLEY / LOWER
12 1 P003941 -- DRIVE BELT
13 1 P004033 -- BEARING HOUSING / INTERNAL
14 1 P004032 -- FLANGED BEARING HOUSING /
EXTERNAL
15 1 P004031 -- SHAFT / DRUM
16 1 RS-165-287 -- DRUM COMPLETE W/ SHAFTS AND
CUTTERS
17 1 P003937 -- CASTER / FRONT
18 2 P003938 -- CASTER / REAR
19 1 P003939 -- HANDLE / LIFT
20 2 P004024 -- GRIP / HANDLE
21 2 P004023 -- SET SCREW/EXTENDED DOG
POINT 5/16-18 X 3/4"
22 2 500597 -- PIN/COTTER 1/8" X 1-1/4"
23 1 P004030 KEY/6mm X 6mm X 25mm
24 1 P004036 -- RING / RETAINING EXTERNAL 0.75"
SHAFT
25 1 5028750 -- SCR/CAP HEX M6 X 15 COARSE
26 1 5037600 -- WASHR/LOCK SPRG M6
27 2 5001730 -- SCR/CAP HEX 0.250-20 X 0.625
28 1 5024020 -- WASHR/FENDER 1/4"
29 2 P004034 -- NUT/FLANGE 0.250-20UNC
SERRATED
30 1 5034760 -- SCR/CAP SOC 0.312-18 X 2.750 GR8
31 3 5001910 -- SCR/CAP HEX 0.312-18 X 1.250
32 10 500190 -- SCR/CAP HEX 0.312-18 X 1.000
33 14 500114 -- WASHER/LOCK 5/16"
34 9 500103 -- WASHER, FLAT 5/16" DIA.
35 6 5000590 - - NUT/HEX 5/16"-18UNC
36 2 5014020 -- NUT/JAM HEX 0.312-18NC
37 2 5011540 -- SCR/CAP SOC 0.375-16 X 1.750
38 6 5007670 -- SCR/CAP HEX 0.375-16 X 1.000
39 8 5001150 -- WASHER/LOCK 3/8"
40 12 5001040 -- WASHER/FLAT 3/8"
ITEM QUANTITY CATALOG
NUMBER
DRAWING
NUMBER
DESCRIPTION
41 4 5000600 -- NUT/HEX 3/8"-16UNC
42 4 500070 -- NUT/HEX JAM 3/8"-16UNC
43 2 500107 -- WASHR/FLT 0.625 G8 STL
44 3 P004035 -- WASHER / TORRINGTON THRUST
(TRA-1018)
45 1 05-55501 05-55501 PLATE/SERIAL NUMBER - SAWTEC
46 1 P001420 -- DECAL/MADE IN USA - SMALL
47 1 P002055 STICKER/DO NOT OPERATE WITH
GUARD REMOVED
48 2 P004025 -- DECAL/EAR AND EYE PROTECTION
49 1 P002807 990-0005 DECAL/CAUTION: HOT SURFACE
HORIZONTAL ORIENTAION
50 1 P004026 -- DECAL/TRIANGULAR ROTATING
CUTTER IMAGE
51 1 P004027 -- DECAL/TRIANGULAR CRUSH
HAZARD IMAGE
52 1 P004028 -- DECAL/TRIANGULAR
ELECTRICAL-LIGHTENING BOLT
53 1 P004029 -- DECAL/BMP-E 165
