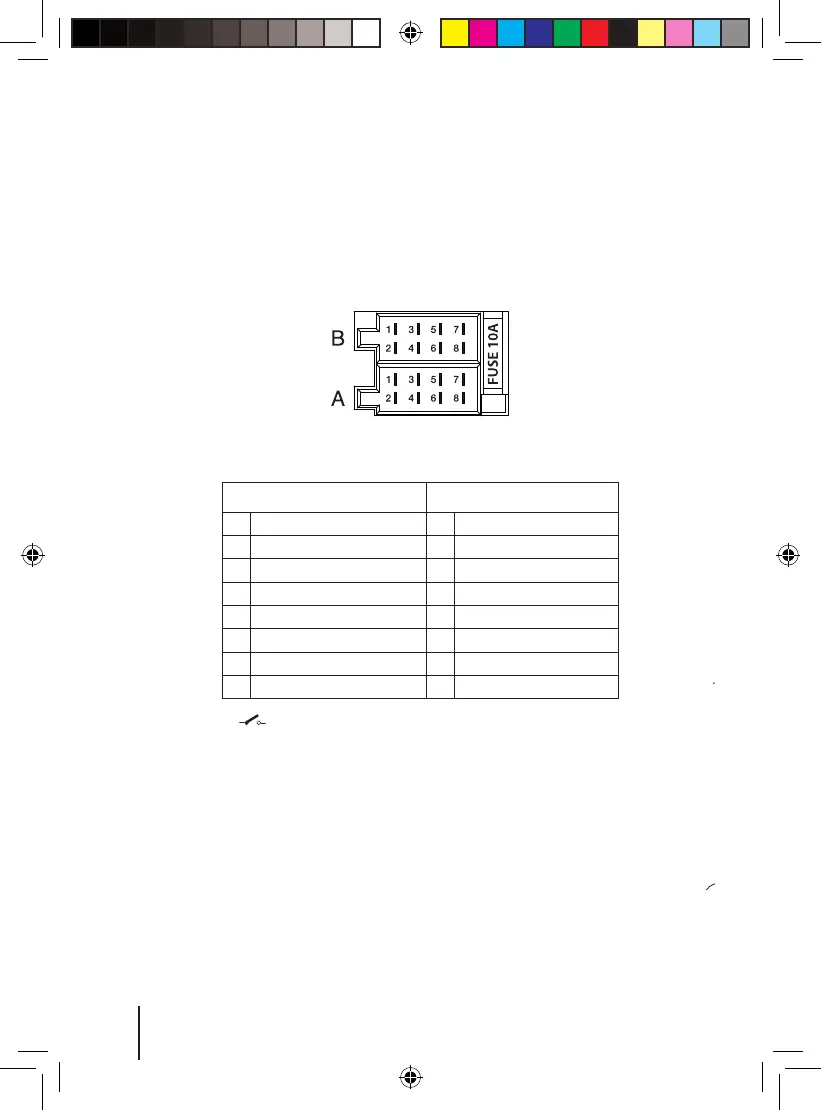

A B
1 NC 1 Speaker out RR+
2 Telephone Mute 2 Speaker out RR–
3 NC 3 Speaker out RF+
4 Permanent +12V 4 Speaker out RF–
5 Auto antenna* 5 Speaker out LF+
6 Illumination 6 Speaker out LF–
7 Kl.15/Ignition 7 Speaker out LR+
8 Ground 8 Speaker out LR–
Switched power supply +12 V / max. 150 mA
