Arrifana 08C
22
TIMER OFF
This function is used to turn OFF the unit after a specific time interval.
To set the OFF time:
1. Turn the unit ON if the unit is not running to start, press the TIMER button once.
The remote handset will display the time icon and OFF next to it.
1. Press the TIMER button once; the clock display will come up and continue to flash next to
the ON time icon.
2. Set the time after which you want the unit to be turned OFF using the UP/DOWN button.
3. Once the selected time is set press the TIMER button again to store the off time interval in
the memory.
4. The unit will be turned OFF when the preset time is reached and will be in standby mode.
5. To cancel the timer setting, press the TIMER button.
NOTE: In both the timer modes the time interval can be incremented by 30 mins. In an event
of power failure the timer need to the reprogrammed. Once the time is set press the CLOCK
button to switch to the current time display if required.
WATER DRAINAGE
This product has a self-evaporative system. The condensed water will be recycled to cool the
condenser. This not only improves cooling efficiency, but also saves energy.
When in Cool or Fan mode, there's no need for water drainage.
The unit is equipped with a failsafe device, if the water tank fills.
So during dry mode, when the water in the water tray exceeds the alarm level, the unit will

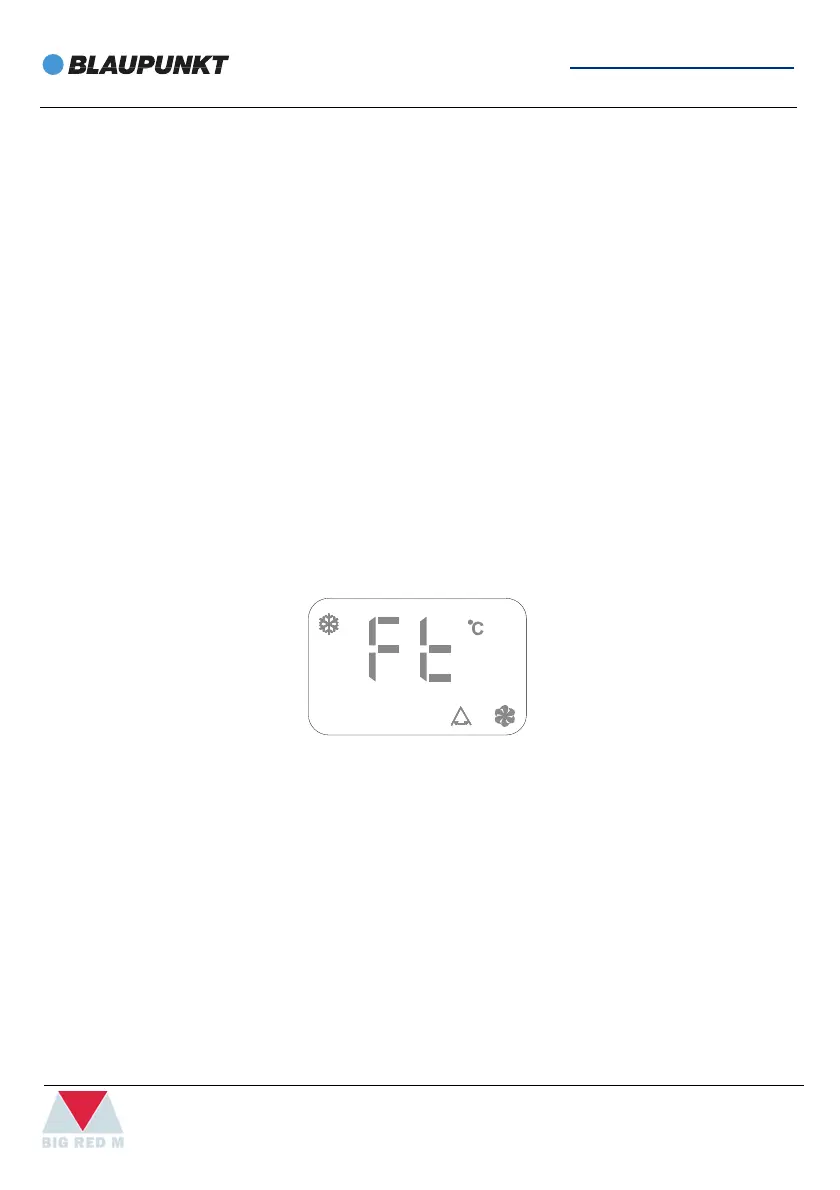

stop completely and the control panel will display Ft. This indicates the water tank is FULL, the
compressor and fan will not restart until the tank has been drained.

Blaupunkt Arrifana 08C Specifications

General

Type	Monobloc mobile air conditioner
Noise level	55 dB
LED indicators	Yes
Number of speeds	3
Water tank capacity	1 L
Airflow (high speed)	350 m³/h
Cooling capacity (max)	8000 BTU/h
Air conditioner functions	Cooling, Dehumidifying, Ventilating
Cooling temperature range	18 - 32 °C
Cooling capacity in watts (max)	2330 W
Cooling capacity in watts (nominal)	- W
Cooling energy efficiency (EER, W/W)	2.61
Heating energy efficiency (COP, W/W)	-
Display type	LED
Product color	Grey, White
Current	4.1 A
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (cooling)	890 W
Energy efficiency class (cooling)	A
Hourly energy consumption (cooling)	- kWh

Weight and Dimensions

Depth	770 mm
Width	283 mm
Height	506 mm
Weight	25000 g
