6
Ventilation
Installation
A mechanically driven, canopy type exhaust hood is re-
quired. The hood should completely cover the oven with
an overhang of at least 15 cm on all sides not adjacent to
a wall. The distance from the oor to the lower edge of the
hood should not exceed 2.1m.
1. Place the diverter over the ue connector with the
open area facing the front of the oven.
2. Secure with the sheet metal screws provided.
WARNING!!
Failure to properly vent the oven can be haz-
ardous to the health of the operator and may
result in operational problems, unsatisfactory
baking and possible damage to the equipment.
Damage sustained as a direct result of im-
proper ventilation will not be covered by the
manufacturer’s warranty.

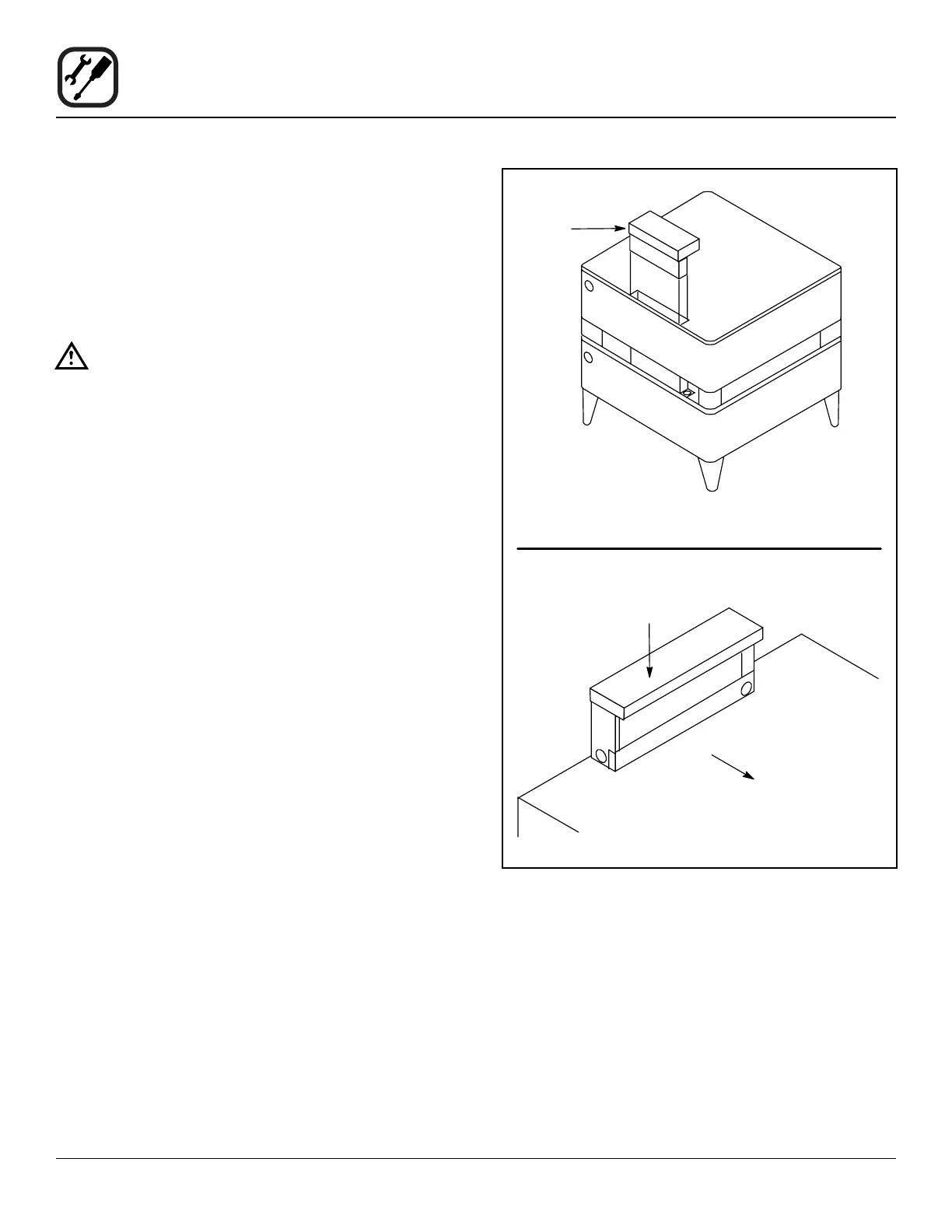

Draft
Diverter
Draft Diverter
1000 Series Stacked Unit Show
Front of
Oven
Figure 6
