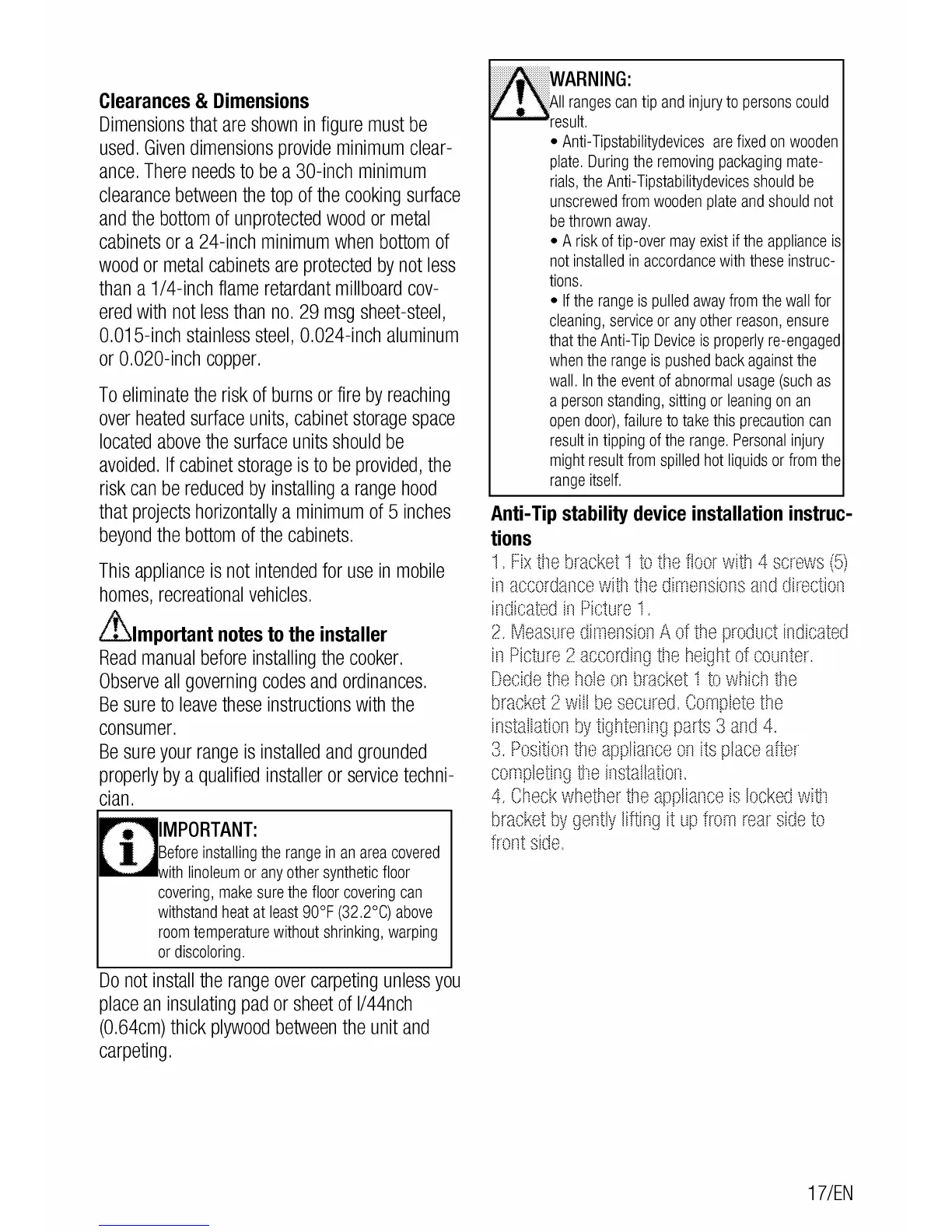

Clearances & Dimensions
Dimensions that are shown in figure must be
used. Given dimensions provide minimum clear-
ance. There needs to be a 30-inch minimum
clearance between the top of the cooking surface
and the bottom of unprotected wood or metal
cabinets or a 24-inch minimum when bottom of
wood or metal cabinets are protected by not less
than a 1/4-inch flame retardant millboard cov-
ered with not less than no. 29 msg sheet-steel,
0.015-inch stainless steel, 0.024-inch aluminum
or 0.020-inch copper.
To eliminate the risk of burns or fire by reaching
over heated surface units, cabinet storage space
located above the surface units should be
avoided. If cabinet storage is to be provided, the
risk can be reduced by installing a range hood
that projects horizontally a minimum of 5 inches
beyond the bottom of the cabinets.
This appliance is not intended for use in mobile
homes, recreational vehicles.
Lh1mportant notes to the installer
Read manual before installing the cooker.
Observe all governing codes and ordinances.
Be sure to leave these instructions with the
consumer.
Be sure your range is installed and grounded
properly by a qualified installer or service techni-
cian.
rn
MPORTANT:
efore installing the range in an area covered
ith linoleum or any other synthetic floor
covering, make sure the floor covering can
withstand heat at least gooF (32.2°C) above
room temperature without shrinking, warping
or discoloring.
Do not install the range over carpeting unless you
place an insulating pad or sheet of 1/44nch
(0.64cm) thick plywood between the unit and
carpeting.
All ranges can tip and injury to persons could
result.
• Anti-Tipstabilitydevices are fixed on wooden
plate. During the removing packaging mate-
rials, the Anti-Tipstabilitydevices should be
unscrewed from wooden plate and should not
be thrown away.
• A risk of tip-over may exist if the appliance is
not installed in accordance with these instruc-
tions.
• If the range is pulled away from the wall for
cleaning, service or any other reason, ensure
that the Anti- Tip Device is properly re-engaged
when the range is pushed back against the
wall. In the event of abnormal usage (such as
a person standing, sitting or leaning on an
open door), failure to take this precaution can
result in tipping of the range. Personal injury
might result from spilled hot liquids or from the
range itself.
Anti- Tip stability device installation instruc-
tions
1 . Fix tile bracket 1 to tt1e floor with 4 screws (5)
in accordance with tt1e dimensions and direction
indicated in Picture 1 .
2. Measure dimension A of the product indicated
in Picture 2 according tile height of counter.
DecirJe the hole on bracket 1 to whicll the
bracket 2 will be secured. Complete the
installation by tightening parts 3 and 4.
3. Position ttle appliance on its place after
completing U1e installation.
4. Check whether tile appliance is lockerJ wittl
bracket by gently lifting it up from rear side to
front side.
17/EN
