Left Switch Console
The left switch console under the driver’s side window and shown here consist of, the
Radio Switch Panel, the Heater Control Panel, Right and left rearview mirror controls,
upper and lower switch banks, a storage compartment, the optional PA mic jack and
a 12 volt auxiliary jack as well.
The left switch console contains three switch panel banks. The exact arrange-
ment of switches in all switch panels is somewhat dependent upon specific state
specifications. (For example, some states require additional switches for red and am-
ber Warning Light pilots.) Shown are the standard and most common configurations.
If your bus differs from the diagarms shown, check with your local specifications and
familiarize yourself with each switch function.

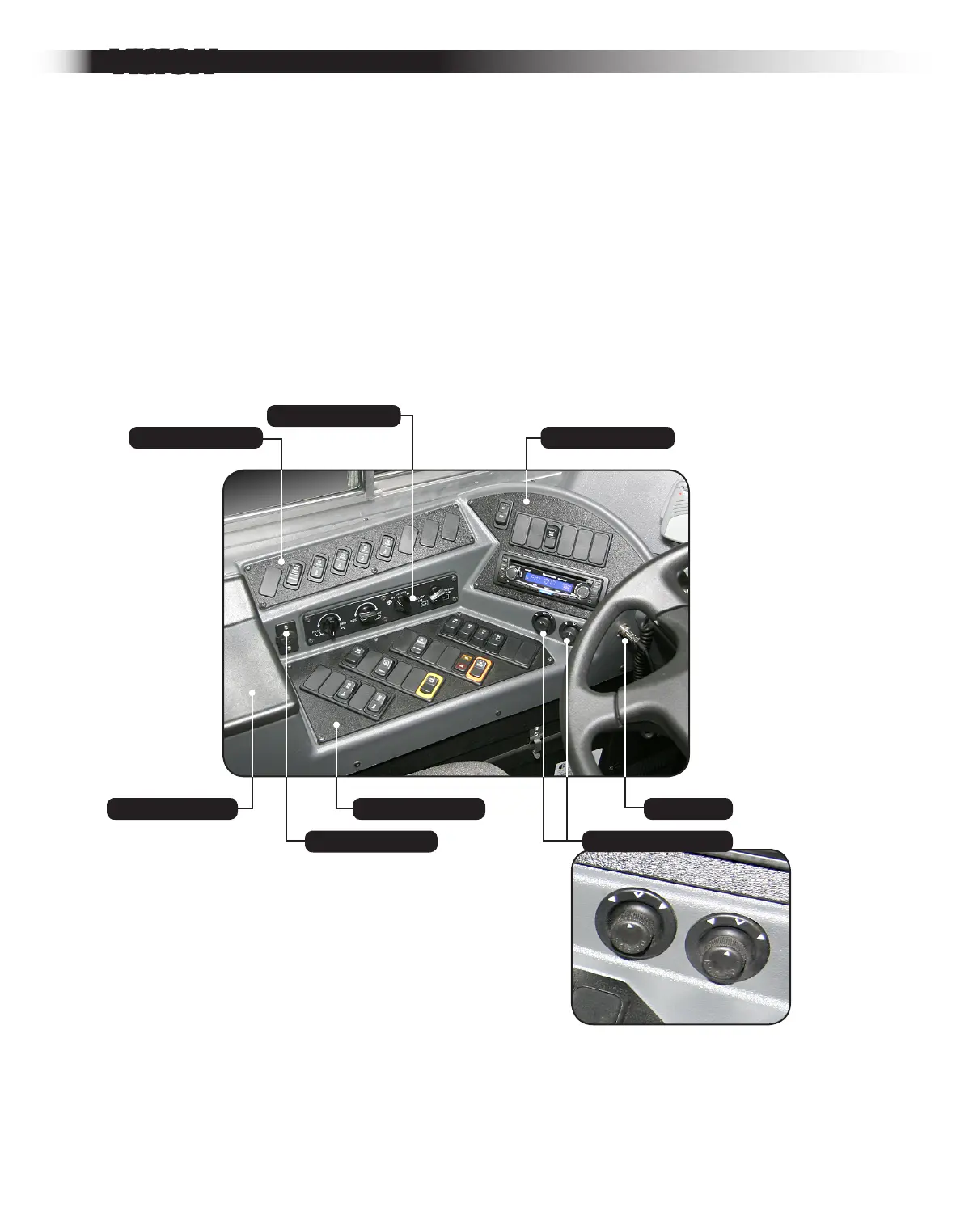

Radio Switch Panel
Heater Control Panel
Upper Switch Panel
PA Mic JackStorage Compartment
12 Volt Auxiliary Jack Right & Left Mirror Controls
Lower Switch Panel
