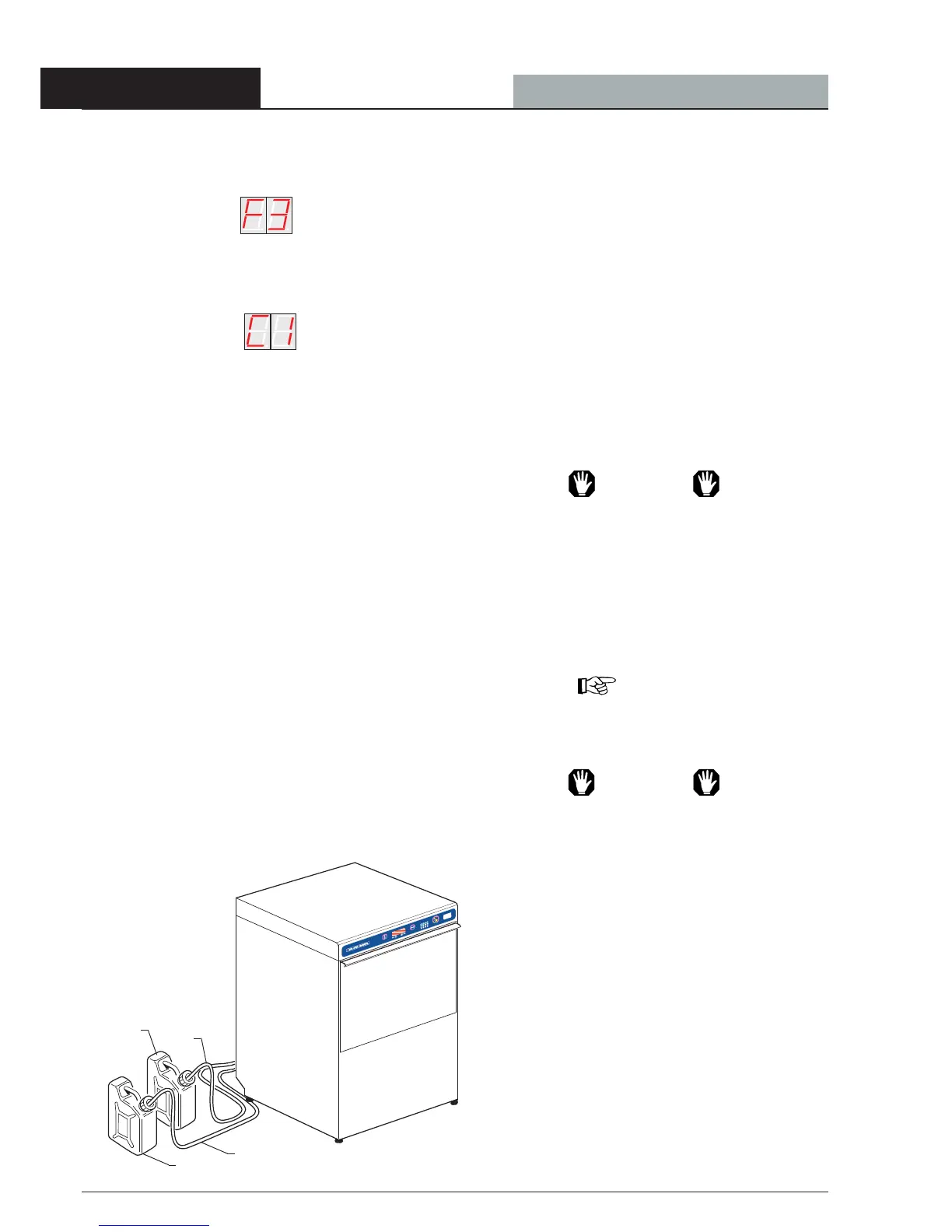

3.3 PERISTALTIC DETERGENT/RINSE
AGENT DISPENSER PUMP (Fig.8)
The machine is equipped with an automatic detergent and
rinse agent dispenser pump.
Dispensing of detergent and rinse agent is managed both
during the regulation and restoration phases. The amount of
detergent/rinse agent is identied during the installation phase
by the authorised technician and is suited to the water volume
and hardness. At each rinse cycle, the machine restores
the detergent and rinse agent values foreseen by the
manufacturer.
To ll the dispenser, proceed as follows:
• Insert the supply tube (11/13) in the tank (10/12).
• Start the machine and check that the dispenser draws
from the tank
• The dispenser is lled during the cycle by slightly opening
and closing the door, a few times, until you see that the
tube is completely lled.
ATTENTION
If the detergent comes in contact with skin, wash with plenty
of running water or, more precisely, refer to the specic
indications according to the type of detergent used.
• The detergent enters automatically every time the tank
is lled with water.
• Water droplets on glass indicate insufcient dosage, while
stripes or dotting indicate excessive dosage.
• To adjust dosage, act on the pin, rotating it clockwise to
decrease the amount and anticlockwise to increase
IMPORTANT
These data are indicative and not binding, as they can
change depending on the hardness of the water, and the
type of detergent and rinse agent used.
ATTENTION
If you change the product used (detergent or rinse agent)
it is recommended to wash the dispensing system with
water and then to ll the dispensers.
F3 CORRECT TANK FILTER POSITION
This warning is displayed when the lter is not xed
properly in place.
C1 SELF-WASHING CYCLE
This warning is displayed when the machine is carrying
out the SELF-WASHING cycle..
ENGLISH
Part 3: Reserved for technician
12
13
11
10
1 2 3 4
