ⅡMounting
 1. Open the package carton and take out the solar control system carefully.

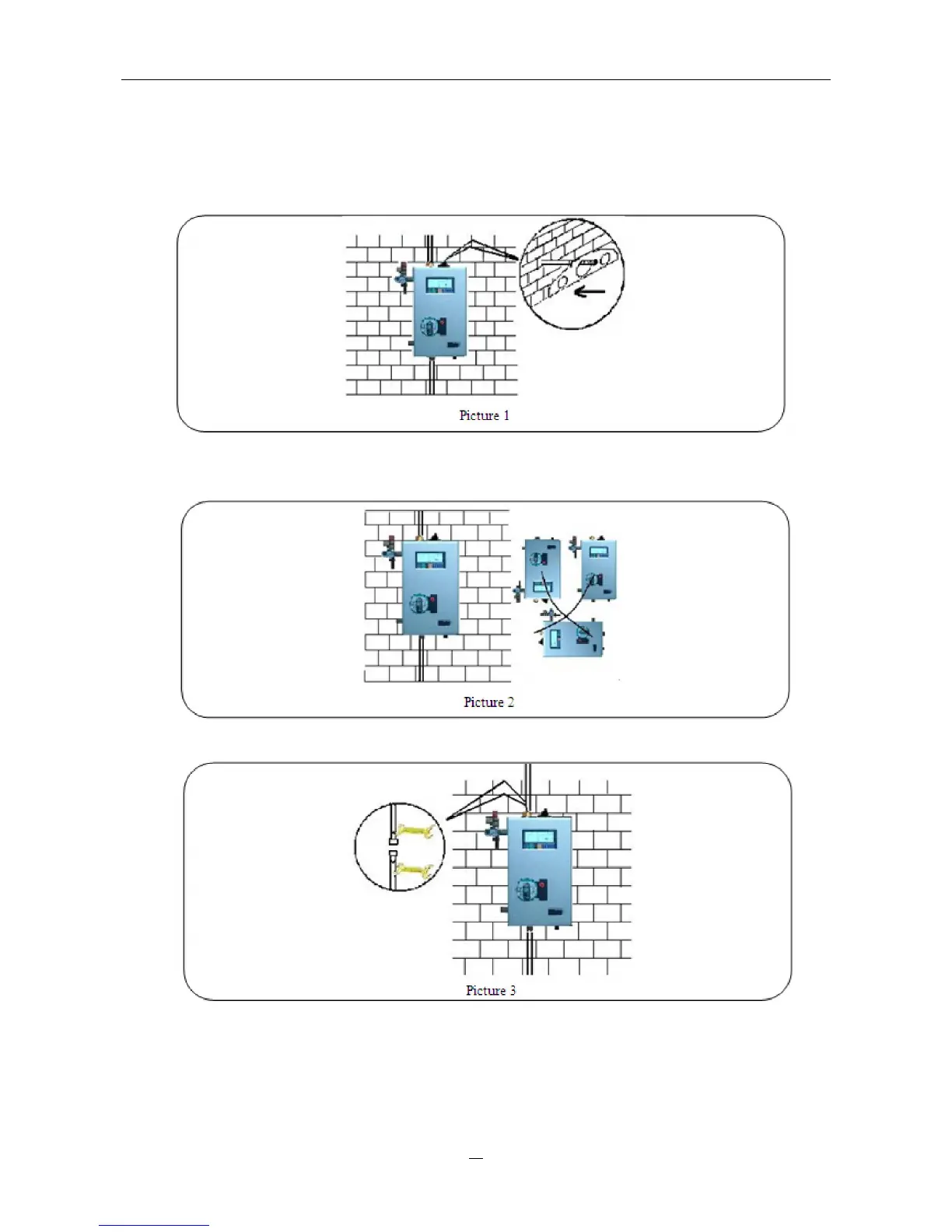

 Determine the mounting position of the solar control system, considering the mounting place for
expansion vessel. See picture 1.
2. Drill the holes for dowels, put the dowels into the holes, fixed the solar control system on the
wall using fastening screws. The solar control system must be vertically installed. See picture 2.
 3. Use two wrenches to connect the pipes. See picture 3.
 4. Install an auto air vent next to the interface of solar collector. See picture 4.
