blueclean sp116 - Ⅲ Function Description; Technical Data

PT1000 : -99
℃ 99～1
Work station series for solar water heating control system
3

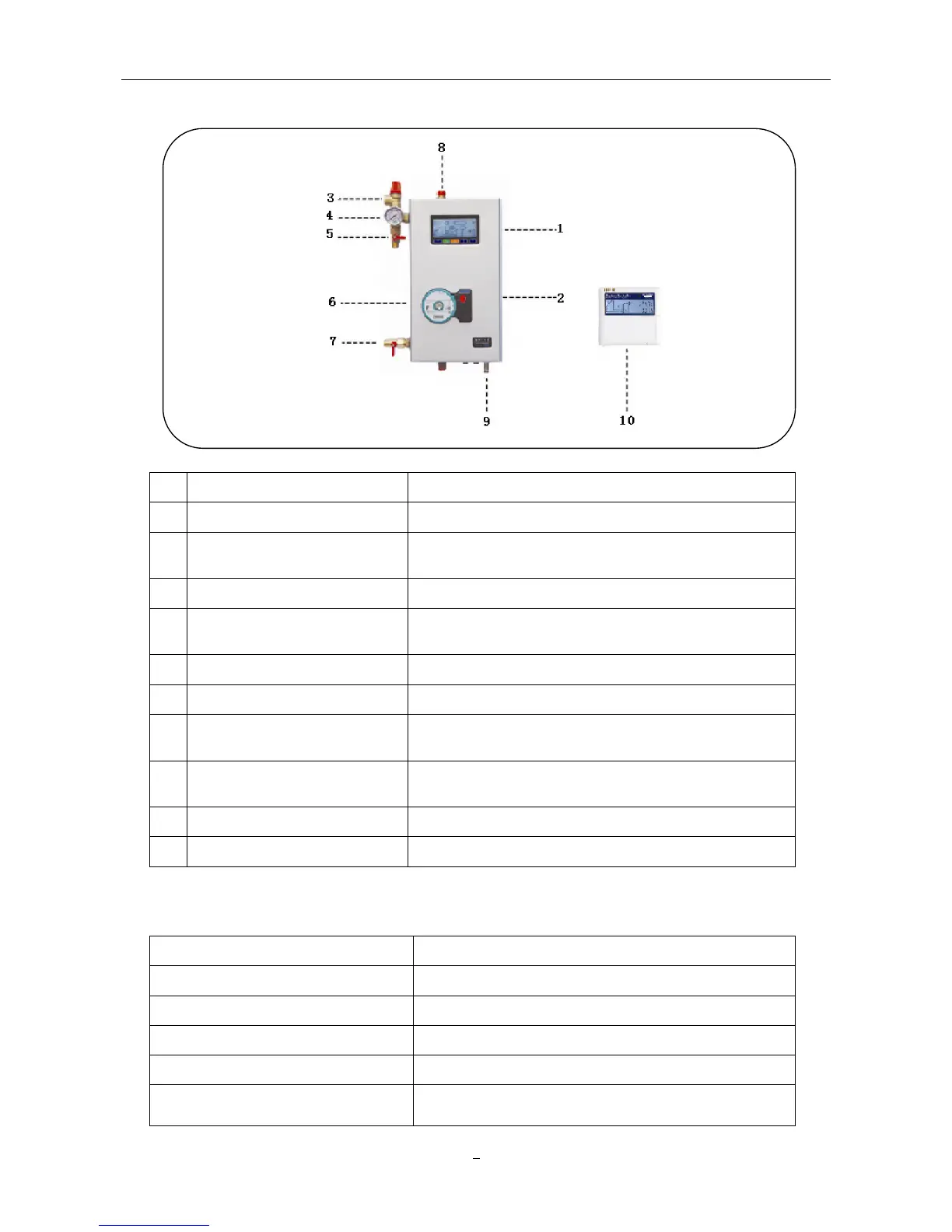

2. Components
No
Components Function description
1 Operating screen (LCD) Display operating menu.
2 Pump speed regulation
Three speed levels available, offers different flow
rate.
3 Safety valve Protect the system against over-pressure
4 Manometer
Display system pressure (Max. 10 bar, normal
working pressure is approx. 2 bar)
5 Filling and flushing connector
Filling medium, flushing the pipeline
6 Circulation pump
WILO Star RS 15/6 (110V or 220V)
7 Expansion vessel connector
Connect expansion vessel. Expansion vessel balance
s
the system pressure.
8 Return flow
Copper material, left side. Max. working temperatur
e
150 ℃ , screw thread 1/2’ (DN15) as standard
9 Input and output signals Temperature sensors, power cord and other outputs.
10
Secondary display screen For choice
3. Technical data
Dimension 380×220×140mm
Input voltage 200V～240V AC or 100V～120V AC
Power ≤3W
Accuracy of temperature measuring
±1℃
Range of temperature measuring
～
199℃ NTC10K: 0
Input signals
1 x PT1000 sensor temperature probe ≤500℃,
silicon cable ≤280℃;
