BLUELIGHT BL6-U - PG_V6 X Card Details; SPG_V6 Card Details

BL6-U Parallel Integrated Controller Quick Commissioning User Manual
9
3.2 PG_V6X
PG_V6X interface card is async machine universal pulse encoder speed feedback and frequency
dividing output card.
PG_V6X is in supporting use of 12V OC output and push-pull output type pulse encoder.
Encoder for async machine: A/B.

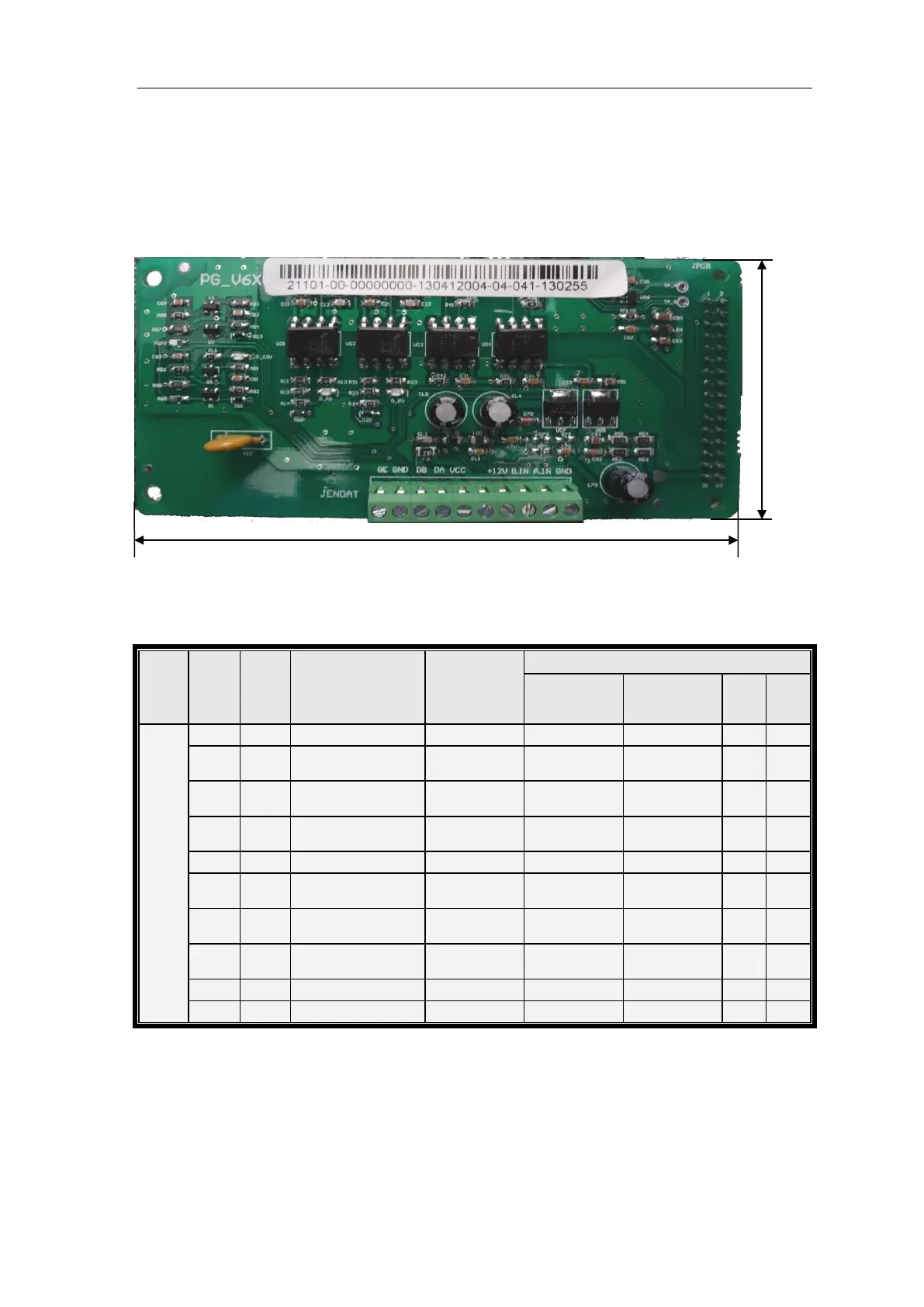

FIGURE 3.2 PG_V6X CARD
FIGURE 3.2 PG-V6X Card Port definition and Function
Port No.
Terminal
Symbol
Location
Definition
Usage
Interface Tech Spec
Interface Type
Rated Capacity
On/off
Time
Max
Speed
JENDATA
(
short for JEN
)
0V
JEN-1
Power ground
Power ground
Power ground
—
IA
JEN-2
OC/Push-pull type A
phase input
Input signal A
OC/Push pull
input
-10Ma/12V-15V
500KHz
IB
JEN-3
OC/Push-pull type B
phase input
Input signal B
OC/Push pull
input
-10Ma/12V-15V
500KHz
+12V
JEN-4
OC/Push-pull type
power
12V Power
supply
Power output
+150Ma/12V±5%
JEN-5
+12V
JEN-6
OC/Push-pull type
power
12V Power
supply
Power output
+150Ma/12V±5%
A+
JEN-7
Freq dividing signal OC
output A
Sync freq
dividing
OC/Push pull
output
±50Ma
500KHz
B+
JEN-8
Freq dividing signal OC
output B
Sync freq
dividing
OC/Push pull
output
±50Ma
500KHz
0V
JEN-9
Power ground
Power ground
Power ground
—
GE
JEN-10
Shield ground
Shield ground
—
3.3 SPG_V6
SPG_V6 interface card is sync/async machine universal sine cosine encoder speed feedback and
frequency dividing output card.
SPG_V6 is in supporting use of 5V line driver output type sine cosine encoder. Encoder for async
