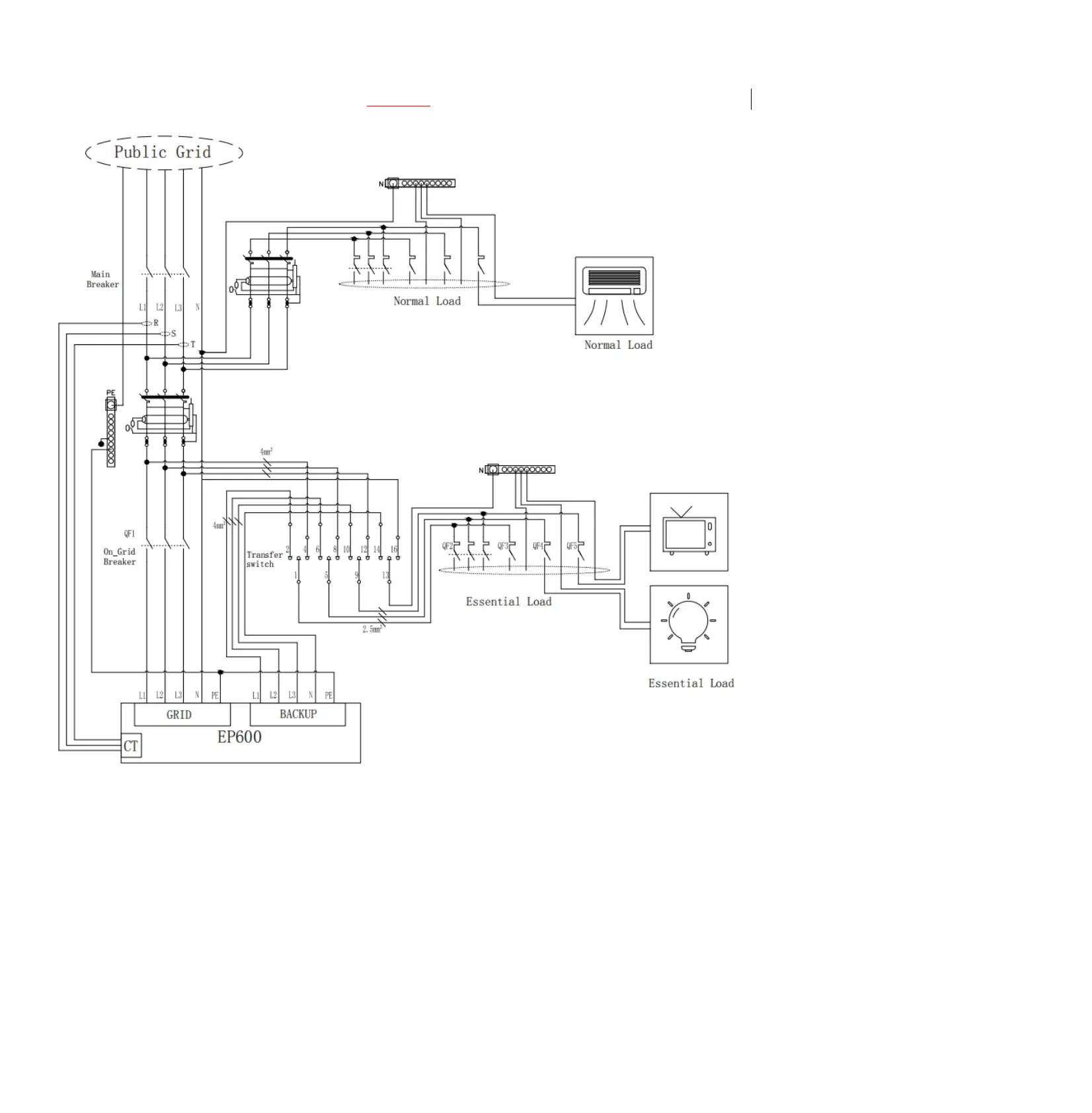

Then, connect the EP600 and transfer switch to the residential circuit as following:
NOTES:

Connect the L1/L2/L3/N wires from EP600 BACKUP to the pin 2(L1), pin 6(L2), pin 10(L3), pin 14(N) of
transfer switch;

Connect the L1/L2/L3/N wires from public grid to the pin 4(L1), pin 8(L2), pin 12(L3), pin 16(N) of transfer
switch;

Move away the wires of the circuit breaker connected to essential appliances, then connect pin1(L1), pin
5(L2), pin9(L3), pin 13(N) of transfer switch.

The CT is used for detecting the current, please follow our installation video.
