BLUM TC Series - Mounting of the TC76-T

Mounting and commissioning
 by Blum-Novotest 2012 19
3.3 Mounting of the TC76-T
TC63-10/TC63-30:
M
d
= 10 Nm
Fig. 3.3

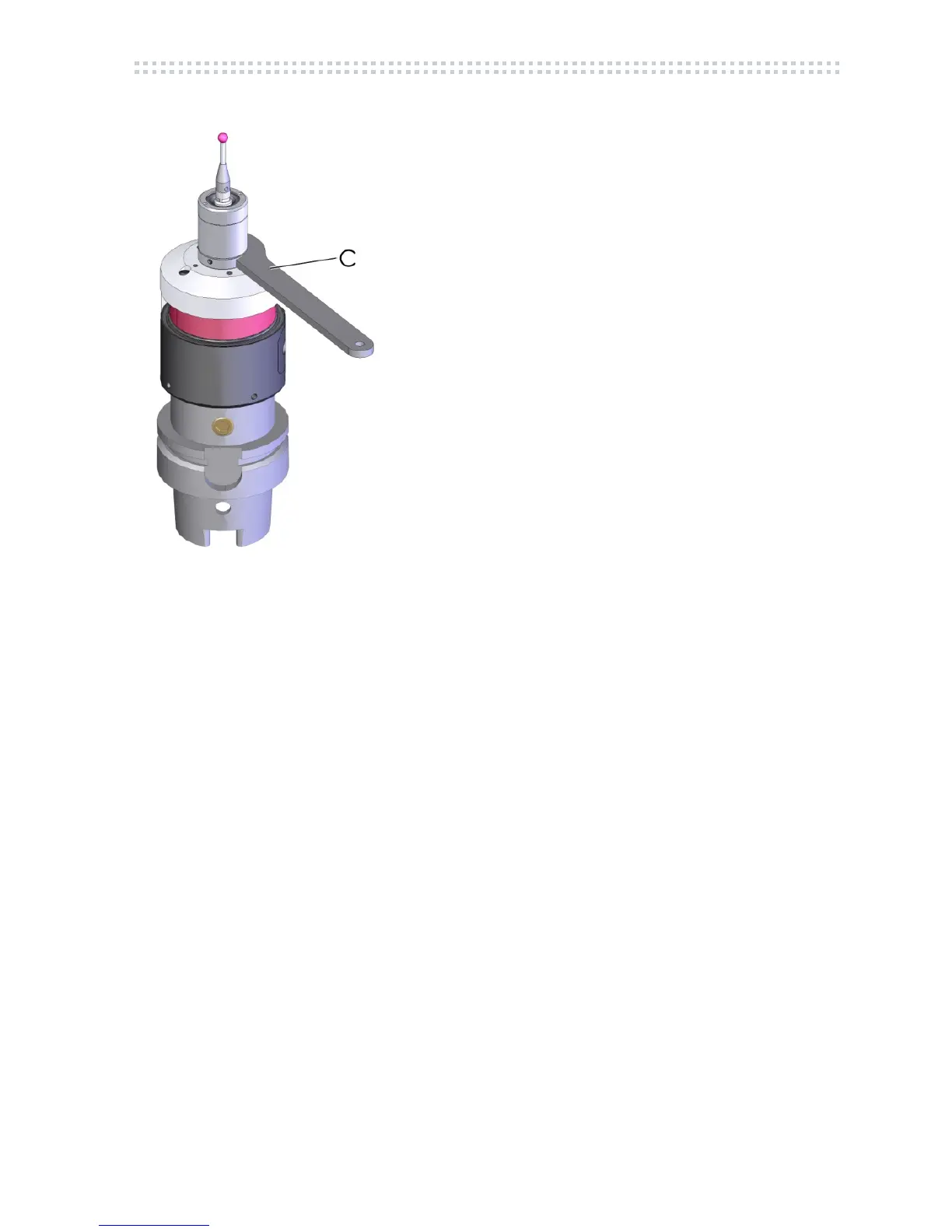

(C) hook wrench (scope of delivery)
 Mounting of the extension / angle: see referring data sheet
