System overview
6  by Blum-Novotest 2012
2. System overview
2.1 Description

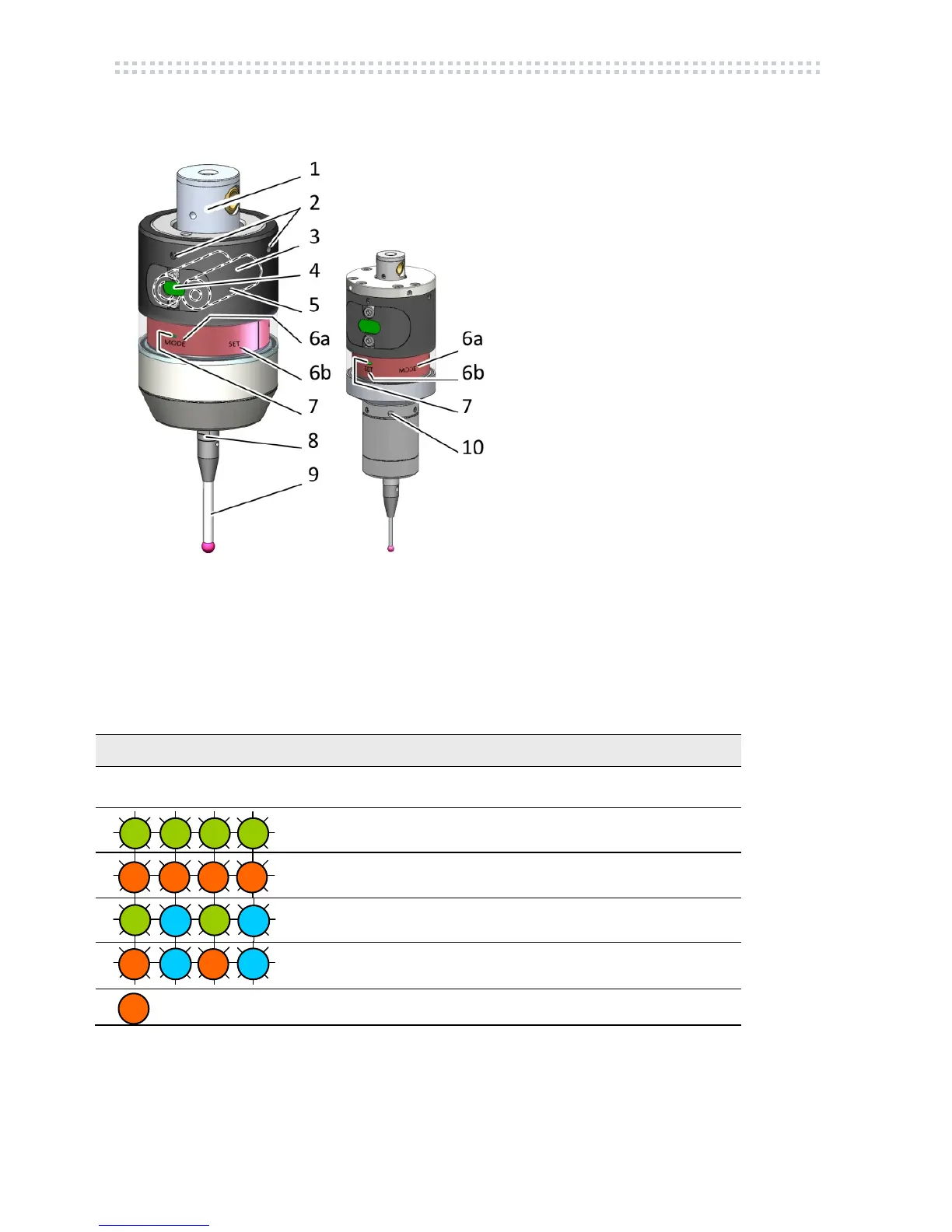

Fig. 2.1
(1) Shaft for tool holder BTH
(2)
Centering screws
(3) Battery cover
(4)
Colour coding

(5)
Battery
(6a) Hall sensor MODE
(6b)
Hall sensor SET
(7)
LED Status 3 x 120° = 360°
(8) Measuring mechanism
(9)
Stylus
(10)
Pin hole

see chap.3.8
2.2 Display elements
Colour LED Status (7)
Standby
Stylus initial position
Stylus deflected
Stylus initial position - battery low
Stylus deflected - battery low
Battery low
Fig. 2.2
GN
GN
GN
GN
GN
BU
GN
BU
RD
RD
RD
RD
RD
BU
BU
RD
RD
