The Blustream range of matrix, switcher and extender products include multiple options for control and routing of IR.
IMPORTANT: Blustream InfraRed products are all 5V and NOT compatible with alternate manufacturers InfraRed solutions. When
using third party 12V IR control solutions with Blustream HDMI extender products please use the Blustream IRCAB cable for IR con-
version. This is available as an optional accessory.

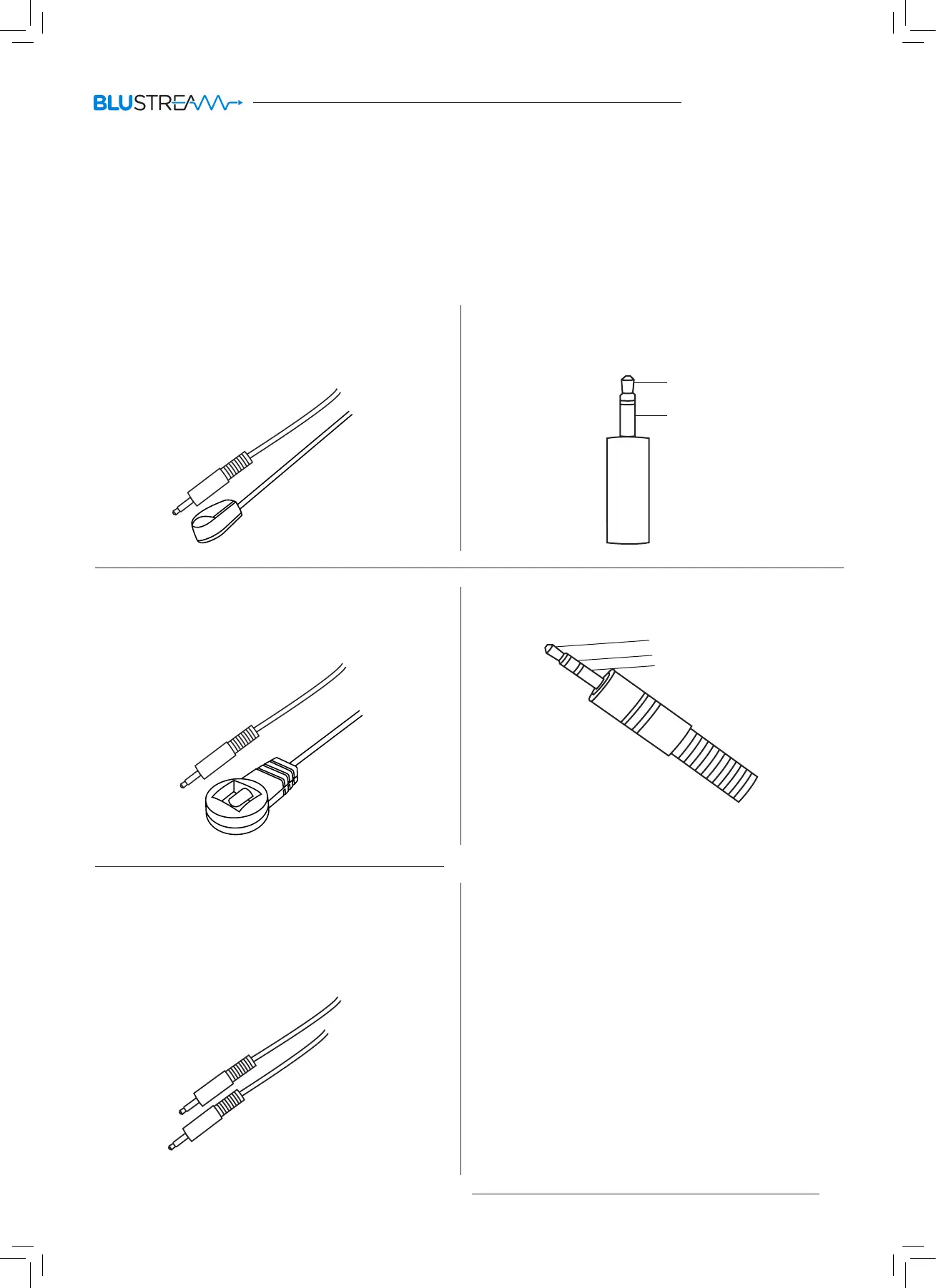

Each Blustream HDMI extender solution is supplied with an IR Emitter and IR Receiver.
IR Emitter
Blustream IR Emitter designed for discrete IR control of hard-
ware. IR Emitter is connected to the IR TX port on Blustream
products
IR Receiver
Blustream IR receiver to receive IR signal and pass-through
Blustream products. IR Receiver is connected to the IR RX
port on Blustream products.
IR Control Cable
Blustream IR Control cable 3.5mm Mono to 3.5mm Stereo for
linking third party control solutions to Blustream products.
Will work with 12V IR third party products.
Note: Cable is directional as indicated
Infrared 3.5mm Pin-Out
IR Emitter - Mono 3.5mm
IR Receiver - Stereo 3.5mm
InfraRed (IR) Distribution
Signal
Ground
Signal
5V
Ground
