ME-GO SERIES SLIDING GATE OPENER USER MANUAL

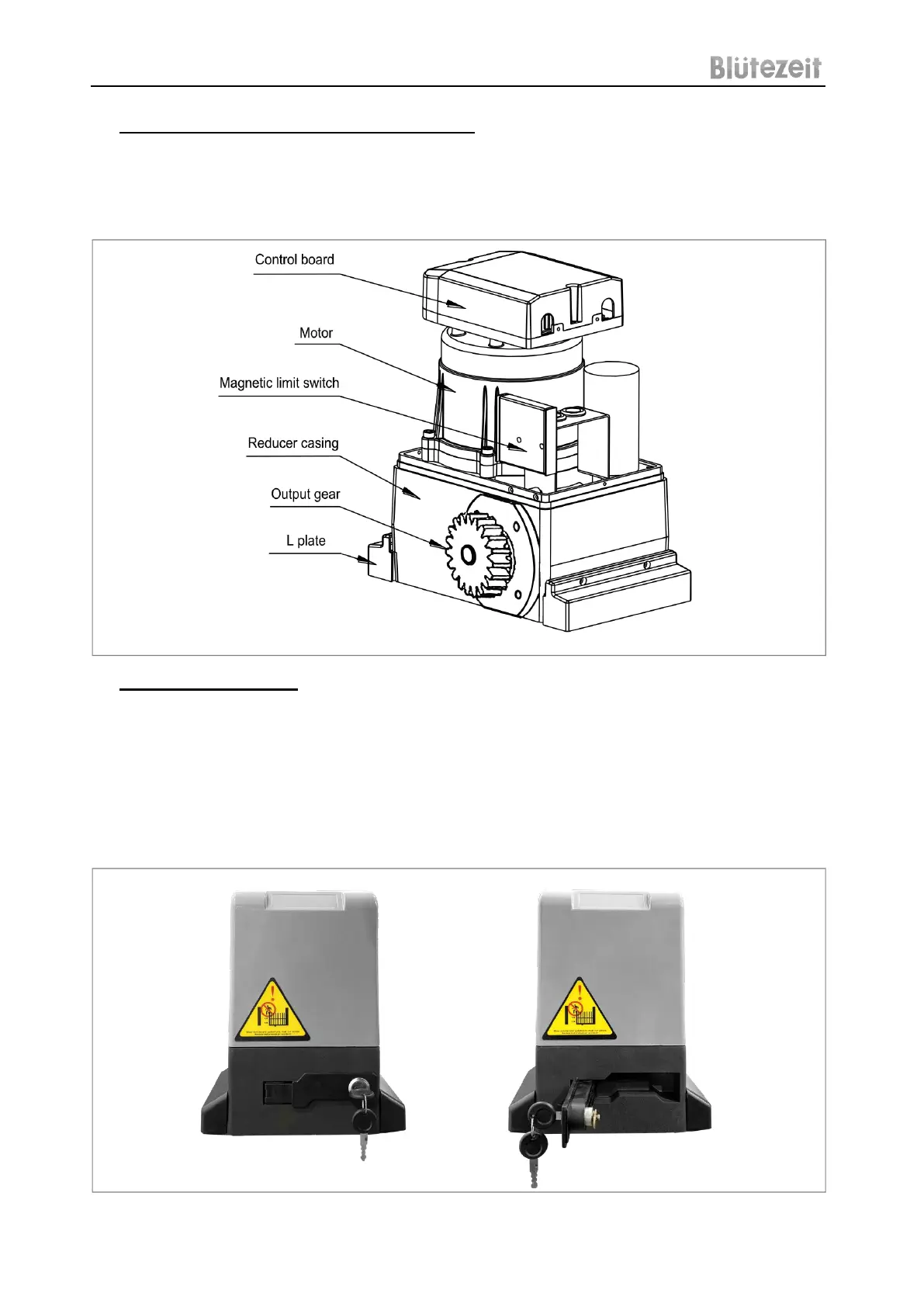

2. WORKING PRINCIPLE & MAIN STRUCTURE (Fig.1)
The motor drives the worm gear, which, in turn, powers the driven gear. The driven gear engages
with the rack, ensuring smooth gate movement. The motor's energy is efficiently transferred to the
socket through the worm and driven gear. When the clutch is engaged, both gears rotate in
tandem, providing effortless electrical control for opening and closing the gate.
3. MANUAL OPERATION (Fig.2)
In case of a power failure, use the manual release key to open or close the gate manually
following these steps:
• Insert the release key in the lock.
• Turn the key 90° clockwise to unlock.
• Open or close the gate manually.
Note: If the gate is obstructed and cannot be opened electrically, manually move the gate a few
inches by hand, then use the key to release and open or close the gate manually.
