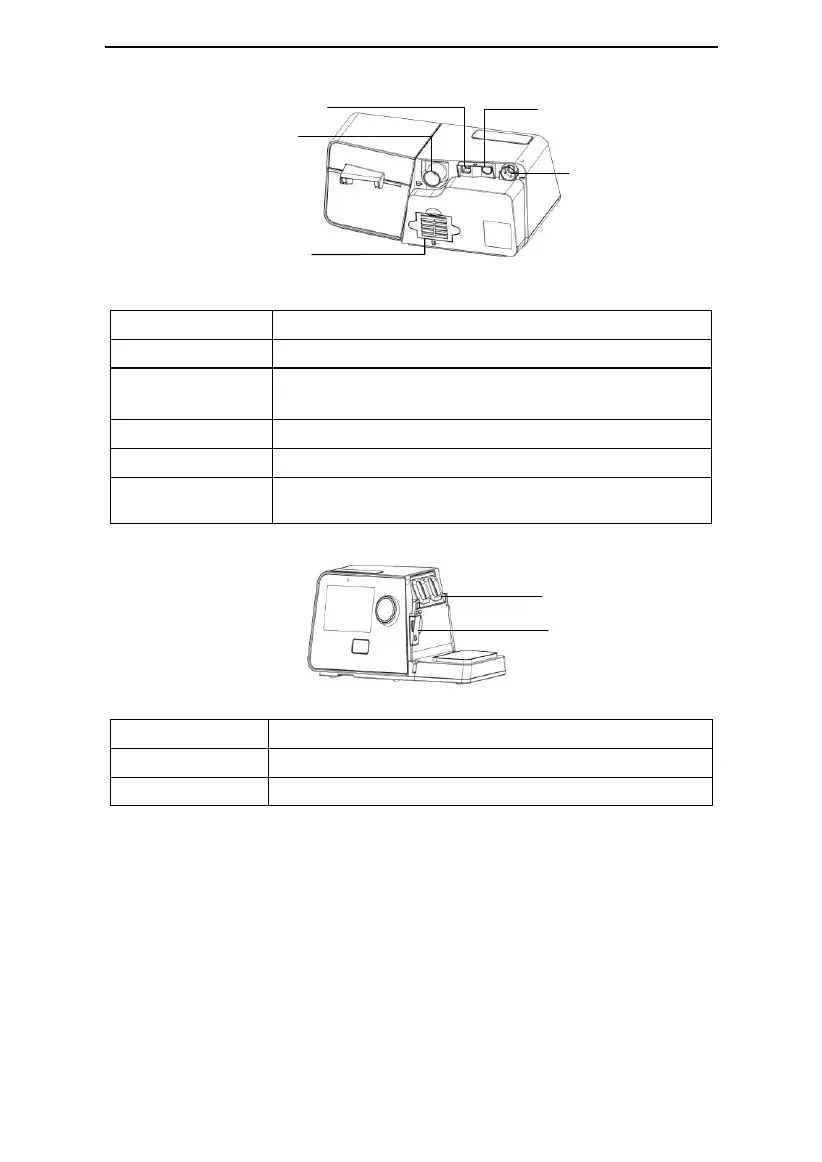

Air Outlet
DC Inlet
Filter Cap (Air Inlet)
Heated Tubing Port
SpO
2
Kit Port
Fig. 10-2
Name
Function
Air Outlet
Deliver pressurized air; connects to the tubing
SpO
2
Kit Port
(optional)
Connected to SpO
2
Kit (Not for connection to un-recommended
devices)
Heated Tubing Port
Connected to the plug of the heated tubing
DC Inlet
An inlet for the DC power supply
Filter Cap (Air Inlet)
Place the cap on the air filter, which is used to filter dust and
pollen in the air entering the device
Transfer Box
SD Card Slot
Fig. 10-3
Name
Function
Transfer Box
For the connection of the device to the water chamber
SD Card Slot
Insert the SD card into this slot
