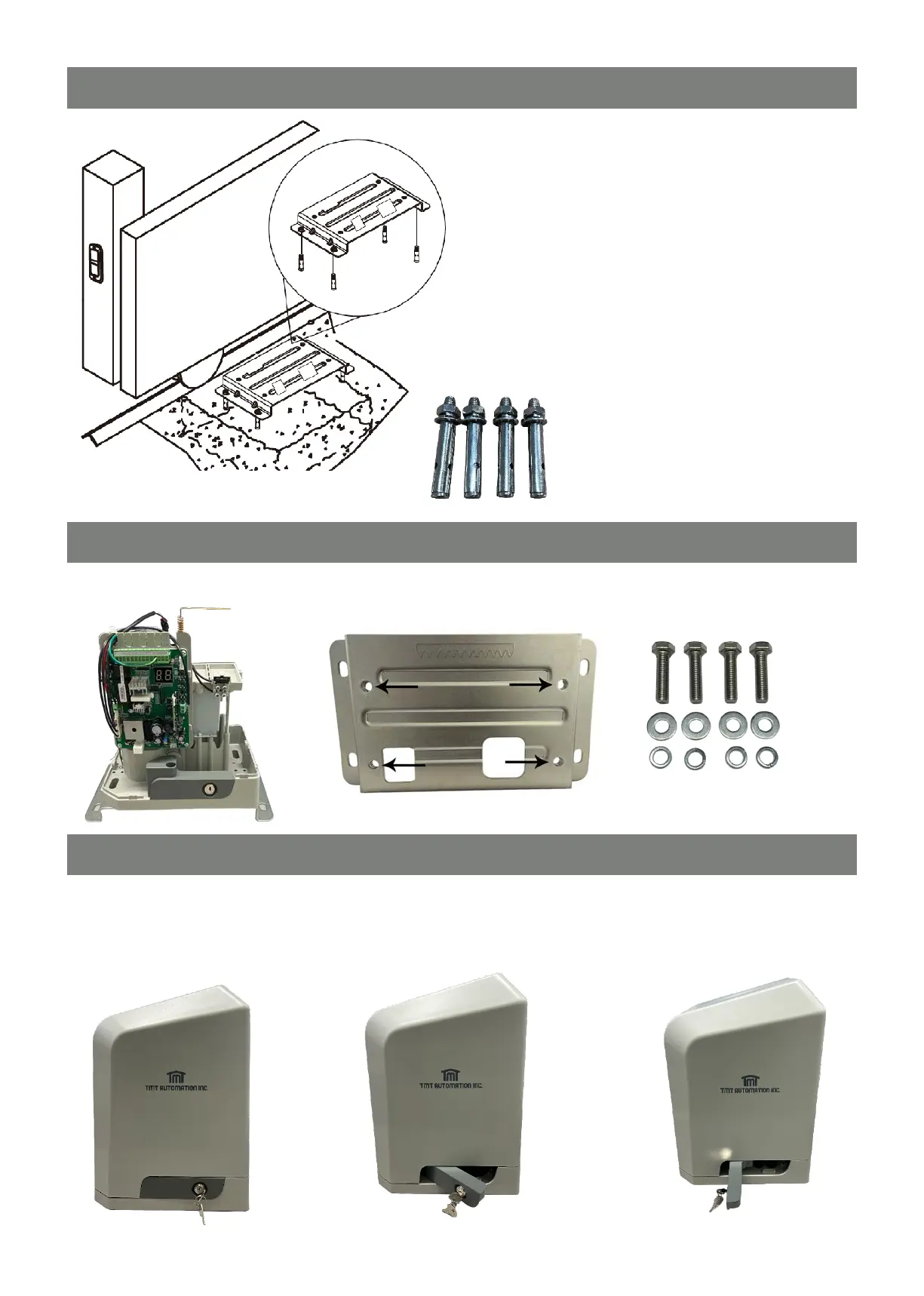

ANCHORING THE BASE PLATE
1. Lay a concrete slab 400mm x 400mm x 200mm
Dig a hole and place the conduit in the correct
position. Fill the hole with concrete and allow to
set.
2. Place the base plate on the concrete slab and
feed the conduit through the cable inlet.
3. Keep a 60mm distance between the edge of the
base plate and the gate frame.
4. Attach the base plate to the slab, using the 4
bolts supplied or other xings.
Note: the 60mm distance is using
BMGi’s racking which is 40mm wide
SECURE THE MOTOR TO THE BASE PLATE
PLACING THE MOTOR IN MANUAL OVERRIDE
When power has failed or you need to manually slide the gate open.
1. insert key
2. turn key clockwise to unlock device
3. pull the release bar
Secure the motor to the base plate using the 4 screw holes as shown.
