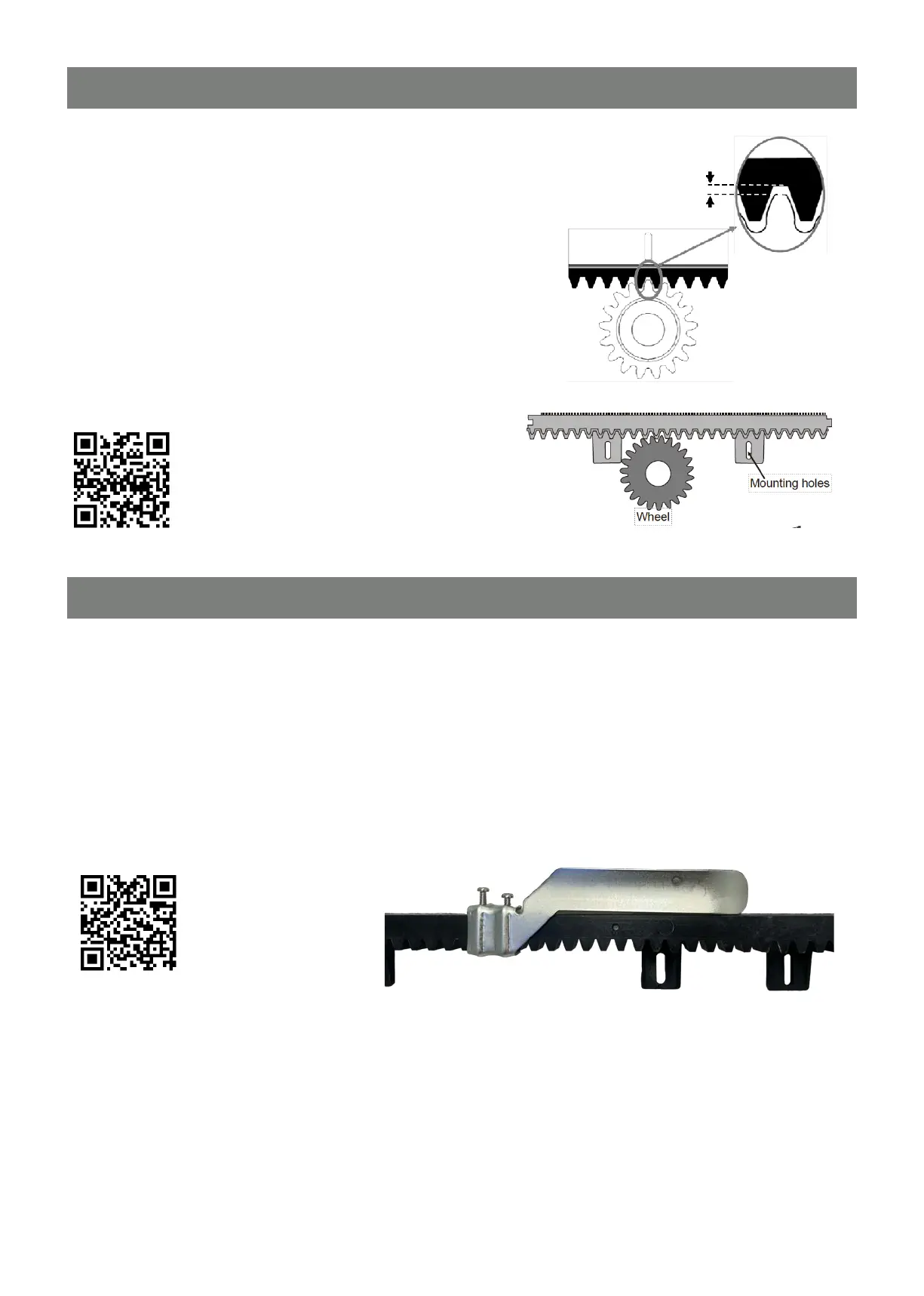

MOUNTING THE RACK ON THE GATE
2-3mm
There must be a 2-3mm gap clearance between the mounted rack
and the cog
1. Start with the gate in the open position, place the rst piece of
rack on the cog making sure you have the 2-3mm gap between
the rack and cog.
2. Fasten the rack to the gate with the self drilling TEK screws
through the slots in the rack.
3. To attach additional rack, slide the gate along and repeat with the
above procedure until all the racking has been installed.
The racking must run the full length of the bottom gate rail including
the tail.
Now slide the gate back and forth making sure the gate isn’t
catching or binding on anything
MOUNTING THE LIMIT BRACKETS
Make sure your motor is in manual mode.
Open the gate until it hits the ground stop, now pull the gate back 40mm and install the limit bracket onto the racking,
slide the gate bracket along until it just hits the spring, now screw the limit bracket to the racking.
Ensure the limit bracket level.
Slide the gate into the closed position till it hits the catcher stop, pull the gate back 40mm and install the limit bracket
onto the racking, slide the bracket along until it just hits the spring and screw it to the rack, ensure the limit bracket is
level.
Note: limits may require small adjustments after the gate has performed its system learn
Once the sysetm learn has been performed, operate the gate to open/close and ensure the gate doesn’t touch the
physical end stop. A 20mm gap is preferred.
Racking
Limit Bracket
