5s
The photocell elements should be installed so that the closed curtain cuts the beam.
The photocell elements should be installed so that the closed curtain cuts the beam.

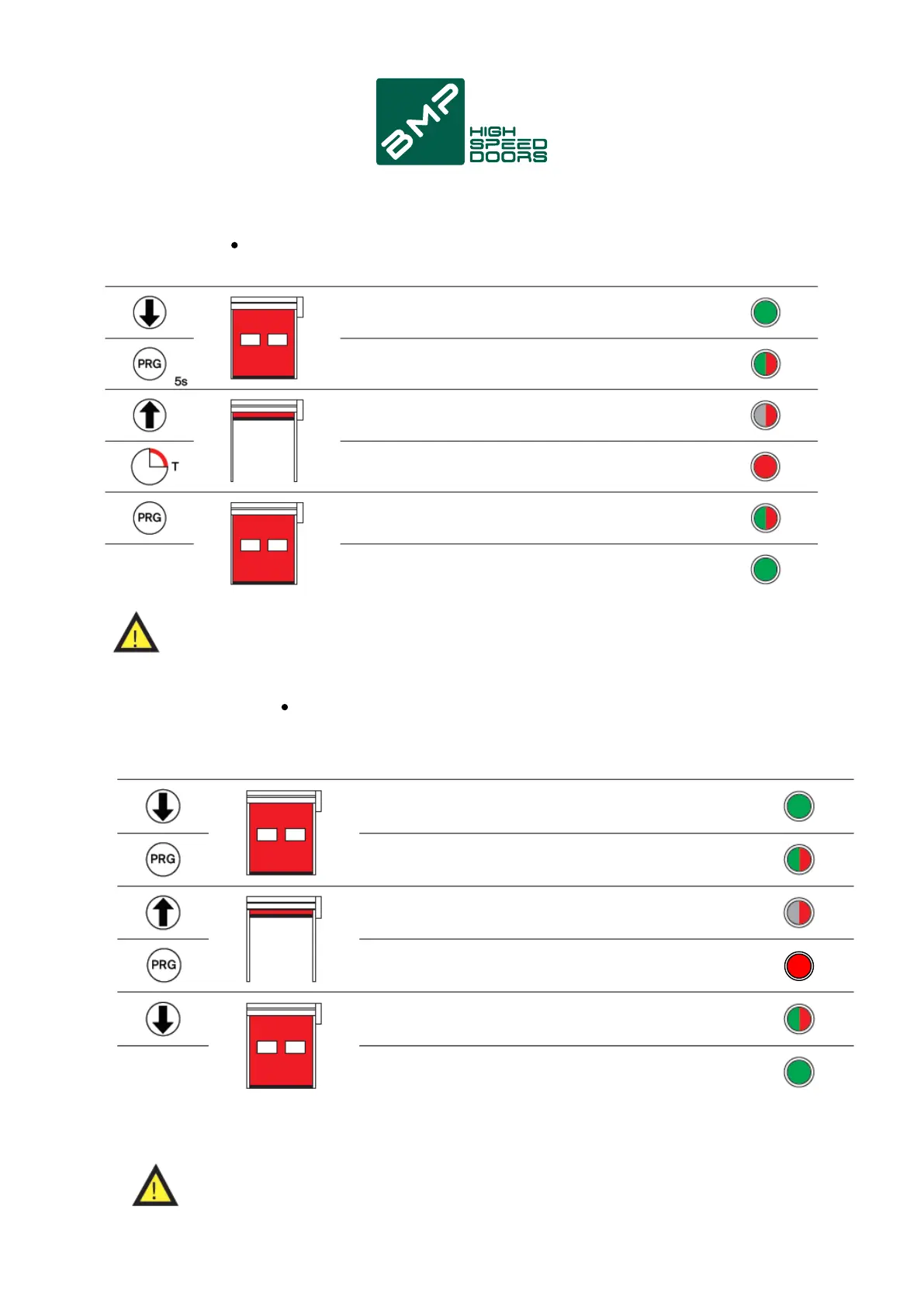

Action Description LED
Action Description LED
Close the door to the limit switch.
Push button panel led: steady green.
Close the door to the limit switch.
Push button panel led: steady green.
Press PRG for 5s.
Button panel led: flashing green/red.
Press PRG for 5s.
Button panel led: flashing green/red.
Bring the curtain to the open door position.
Button panel led: flashing red.
Bring the curtain to the open door position.
Button panel led: steady red.
Bring the curtain up to the open door position and press PRG button.
Button panel led: flashing red.
Wait for the time do break.
Button panel led: steady red.
Press PRG the door closes to and end stop.
Push button panel led: blinks green/red.
Closed door.
Push button panel led: steady green.
Closed door.
Push button panel led: steady green.
Press down arrow (impulsive) the door closes to the limit switch.
Push button panel led: flashing green/red.
STEP BY STEP (ENCODER)
AUTOMATIC CLOSING (ENCODER)
11
