BATTERY CHARGING MANAGEMENT ALGORITHM
The following describes the Battery Charging Management Algorithm used by the
BatteryPlus35 when charging the caravan battery from a mains power source and
by the BP35-HA and BP35-SR with solar charging. The BatteryPlus35 will operate
as described when the caravan loads are connected directly to the BatteryPlus35
and not the caravan battery.

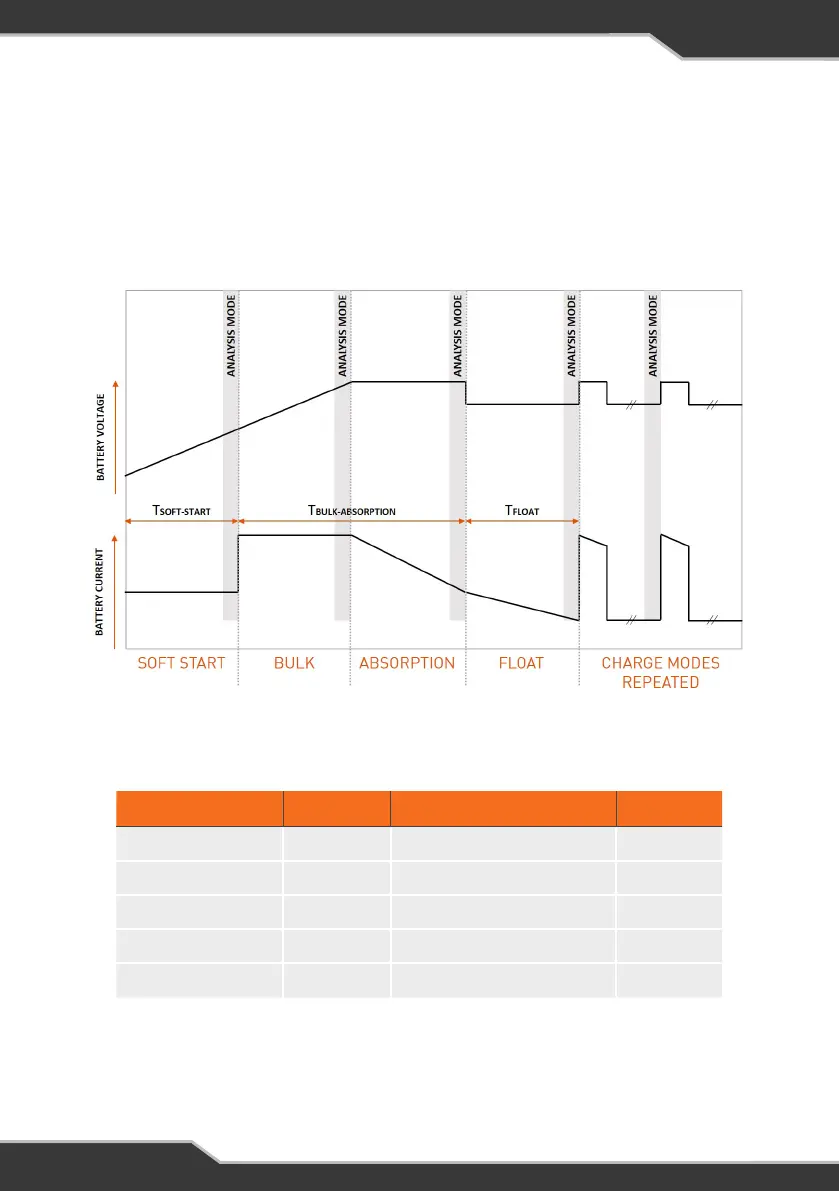

Figure 4: BatteryPlus35 Battery Charging Management Algorithm
Battery Capacity Soft Start Bulk-Absorption Float
≤ 100AH
6 Hours 5 Hours 6 Hours
150AH 6 Hours 7.5 Hours 6 Hours
200AH 6 Hours 10 Hours 6 Hours
250AH 6 Hours 12.5 Hours 6 Hours
≥ 300AH
6 Hours 15 Hours 6 Hours
Table 6: Timeout for each charging mode, based on battery capacity
