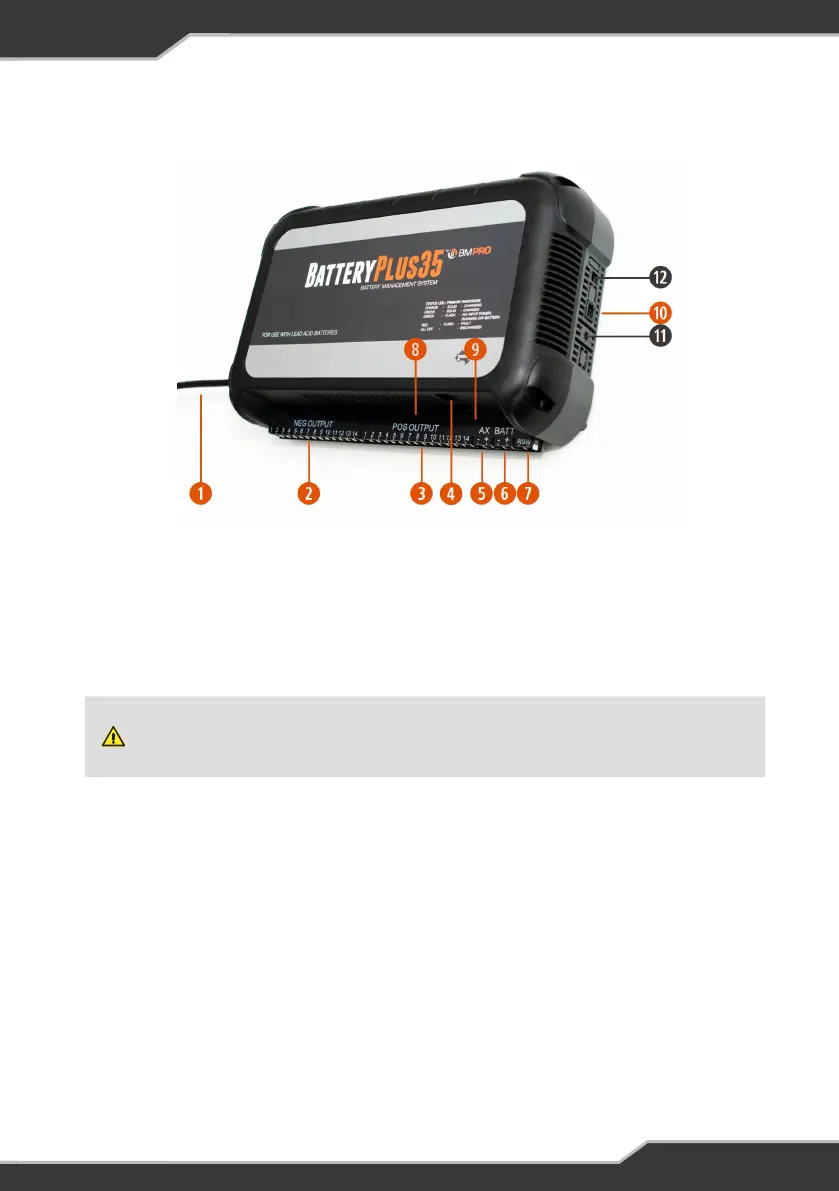

Figure 1: The BatteryPlus35
e LOAD TERMINAL BLOCK – POSITIVE CONNECTION
Positive wire connection point for the caravan’s 12V loads.
Terminal 1 will not turn off when ECO mode is activated and is thus ideal for
connecting lite loads that benefit from continual power such as electric step or
radio.
r SOLAR INPUT
t AUXILIARY INPUT
y BATTERY INPUT
w LOAD TERMINAL BLOCK – COMMON NEGATIVE CONNECTION
Negative wire connection point for the caravan’s 12V loads.
q MAINS CABLE
The BatteryPlus35 is pre-cabled with a permanent mains power supply cord for
use with 240V or 110V input power.
Do not replace a damaged power supply cord. If the power cord is damaged, the
BatteryPlus35 must be discarded. Ensure that the AC mains source always has an earth
terminal.
