BMPRO TrailSafe - LED Status Indicators

TrailSafe in calibration 1. Wait until LED goes solid PURPLE.
2. If occurring after removing pull-pin, wait until
indicator changes then put pull-pin back in.
Completed 1st or 2nd
calibration stage
If pin is in when Solid PURPLE, remove pin;
if pin is out when Solid PURPLE, put pin back in.
Pull-pin removed before
calibration stage completed
Put pull pin back in to restart.
House battery capacity sufficient for 15mins of emergency braking operation
TrailSafe standby or no power If necessary, check TrailSafe by depressing
brake.
House battery may have
insufficient capacity for 15mins
emergency braking operation
Check battery to ensure at least 10Ah house
battery capacity available.
TrailSafe in standby and battery
may have insufficient capacity
for 15mins emergency braking
operation
Check battery to ensure over 10Ah house
battery capacity available.
TrailSafe breakaway switch
faulty or corroded
Do not use unit. Replace unit.
Pin out or trailer breakaway
House battery not detected or
insufficient capacity for 15mins
of emergency braking operation
Charge or replace house battery.
TrailSafe in standby and house
battery insufficient for 15mins
of operation
Charge or replace house battery.
Pull pin out when
calibration starts
Put pull pin back in; wait for 1 minute
or power cycle unit to restart calibration.
CONDITIONSTATUS SOLUTION

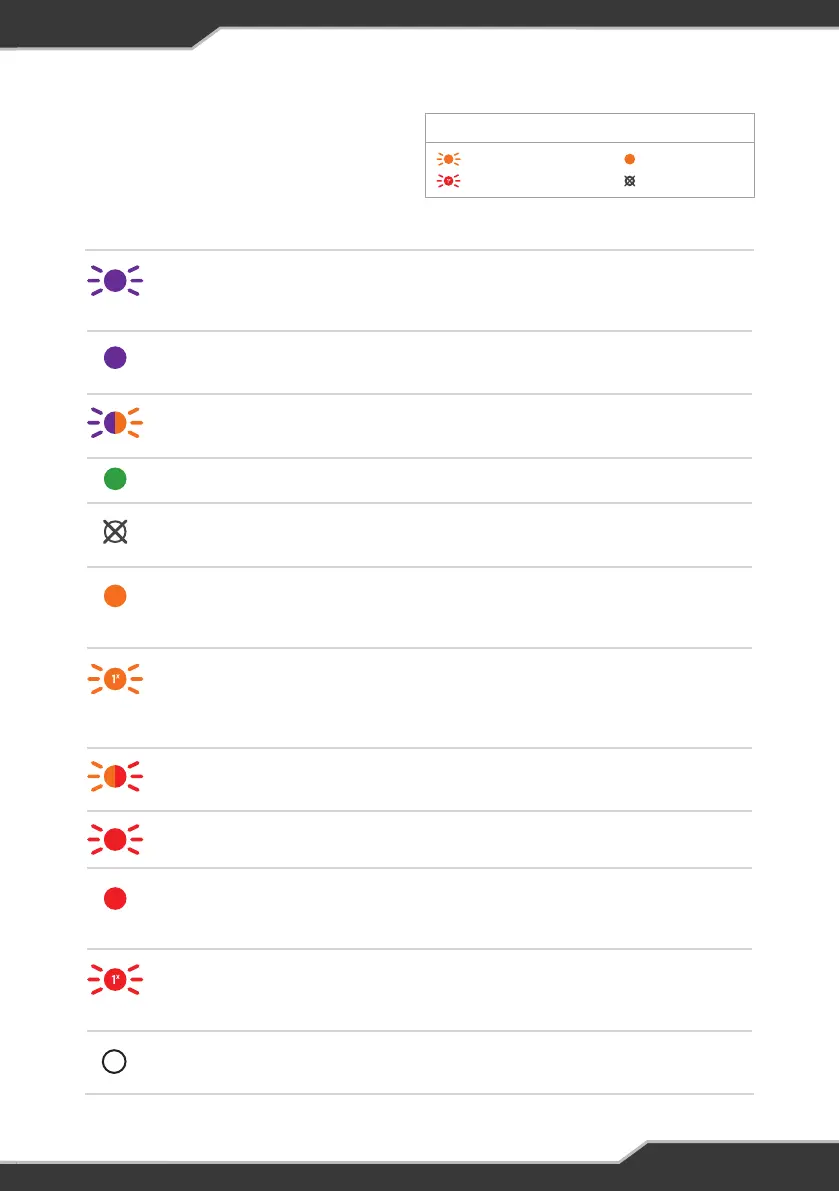

LED STATUS INDICATORS
FLASH ONCE
SOLID COLOURCONTINUOUS FLASH
NO LIGHT
KEY LED STATUS
