BMW E39/2 - Adapter Cable Installation and Radio Connection

EN/12
Retrofit / Installation kit No. 65 90 0 027 973 (others see cover sheet)
Installation Instructions No. 01 29 0 140 447 Issue date: 06.2001
10. To install the adapter cable and connect the navigation radio
0
0
0
0
0

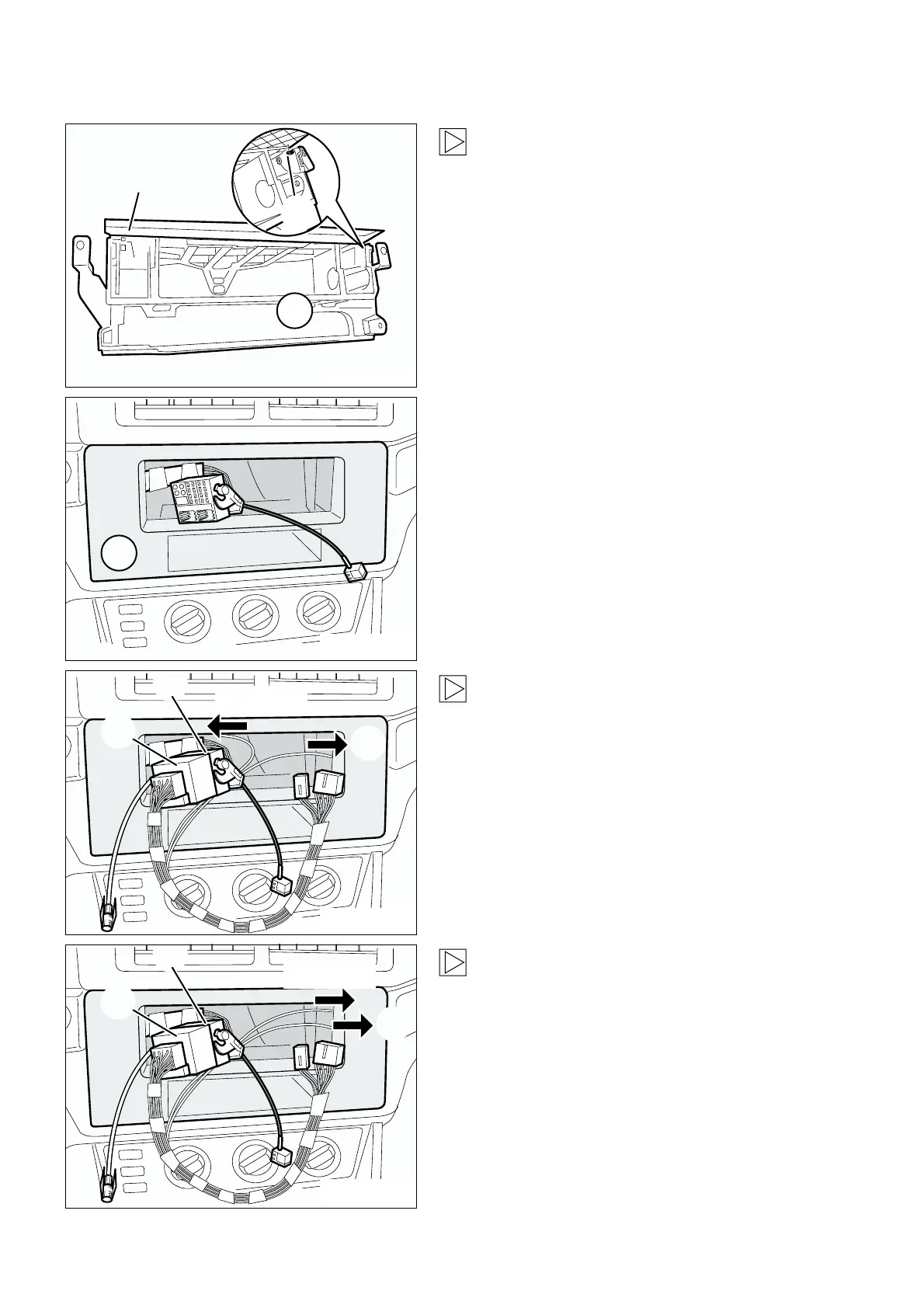

The figure shows the radio module holder
(30).

Remove the flap (31) on the radio module holder
(30) to allow the radio trim (9) to be installed.
Remove the pins (32) for this purpose.
0
Insert the radio trim (9).
The radio trim (9) is held in place later by the
fastening for the navigation radio.
0
LHD cars only.
Connect branch A1 to the new generation radio
connection plug (40).
Lay branch A4, open cable end, blue/yellow cable,
along the standard wiring harness to the bottom
right A pillar and secure it with cable ties.
Lay branches A5+A6 along the standard wiring
harness to the installation site of the instrument
cluster and secure them with cable ties.
0
RHD cars only.
Connect branch A1 to the new generation radio
connection plug (40).
Lay branch A4, open cable end, blue/yellow cable,
along the standard wiring harness to the bottom
right A pillar and secure it with cable ties.
Lay branches A5+A6 along the standard wiring
harness to the installation site of the instrument
cluster and secure them with cable ties.
039 0011 B
30
32
31
039 0012 B
9
039 0013 B
A1
40
A4
A5+A6
039 0040 B
A1
40
A4
A5+A6
