EN/14
Retrofit / Installation kit No. 65 90 0 027 973 (others see cover sheet)
Installation Instructions No. 01 29 0 140 447 Issue date: 06.2001
10. To install the adapter cable and connect the navigation radio
0
0
0
0
0

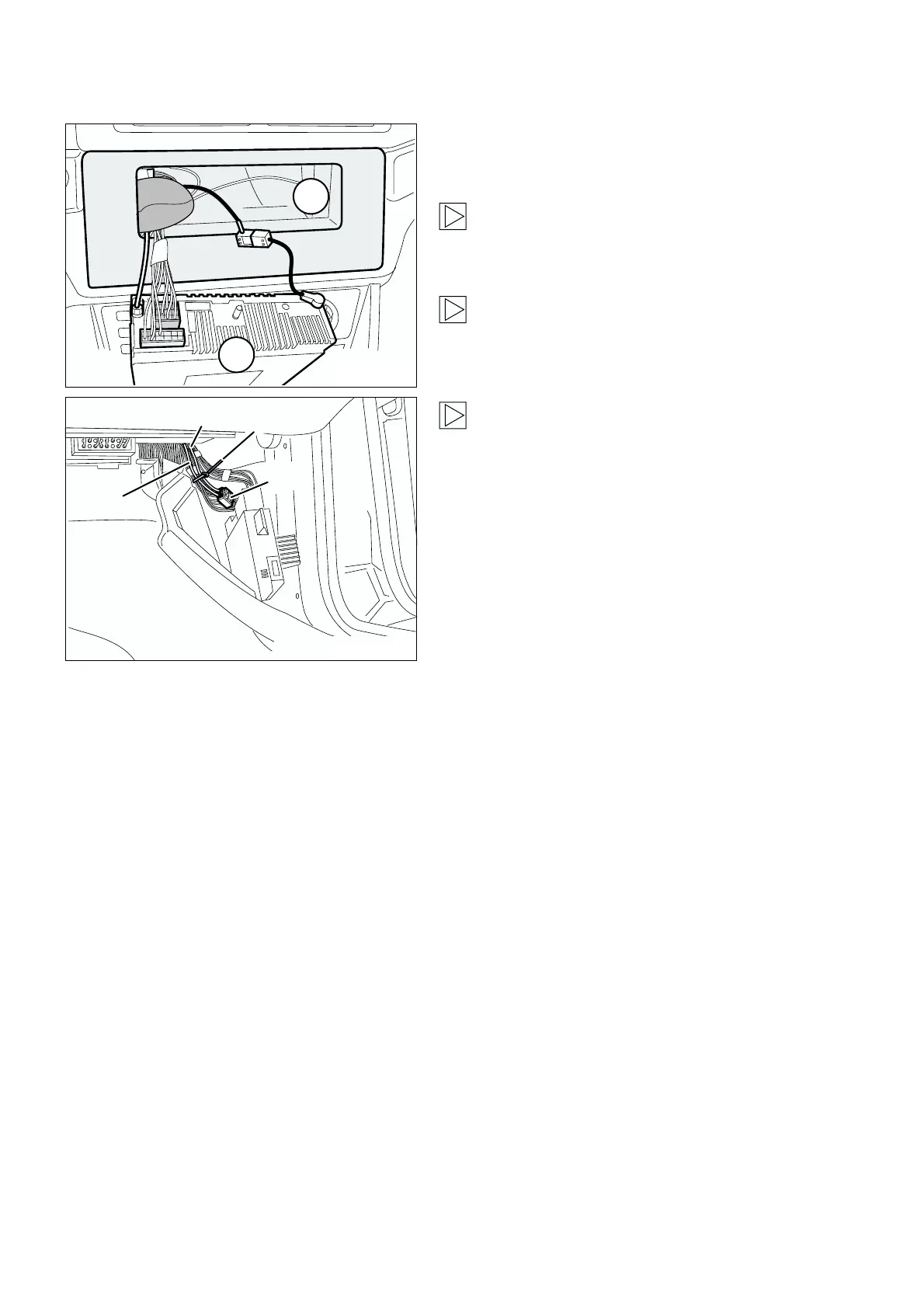

Carefully slide the connected navigation radio (1)
into the radio shaft (30) and secure it with the
existing slides.
Refer to the information for securing the
navigation radio in the operating instructions
in the section headed Installation/Removal
instructions.
As you slide in the navigation radio, ensure
that you do not jam or damage any of the
cables.
0
The figure shows the bottom right A pillar (the
light module has been unscrewed).
Connect branch A4, open cable end, blue/yellow
cable, to the reversing light cable (30), white/
yellow cable (PIN 10) using a double insulation-
piercing connector and secure it with cable ties (4).
Since there are several white/yellow cables, check
the reversing light signal.
0
0
039 0018 B
1
30
039 0019 B
3
4
A4
30
